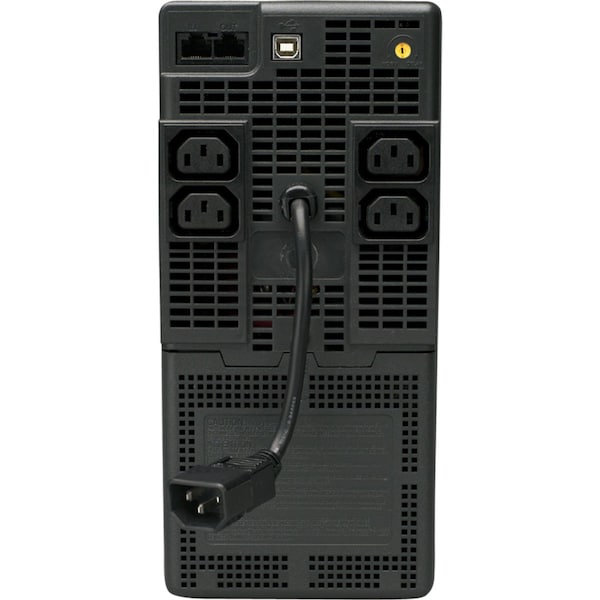

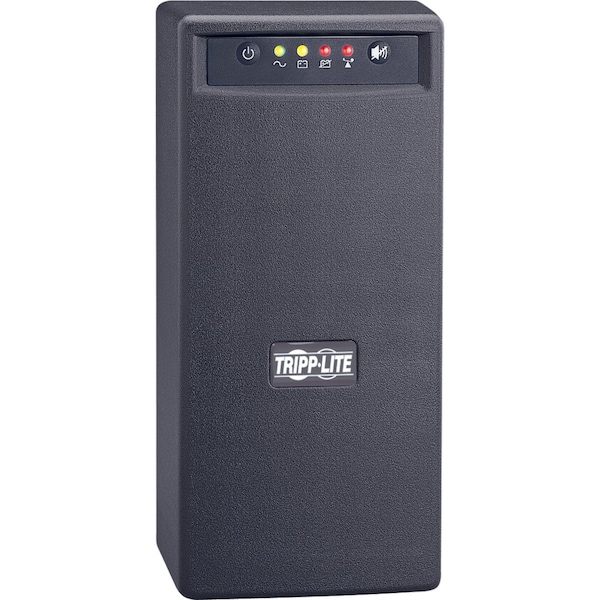

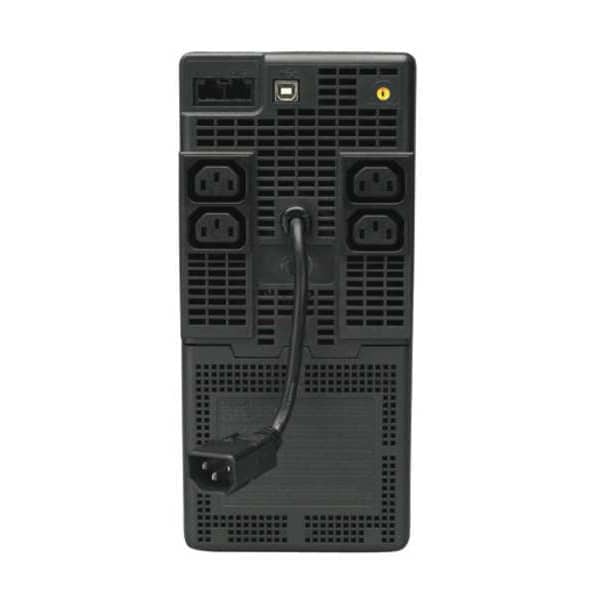

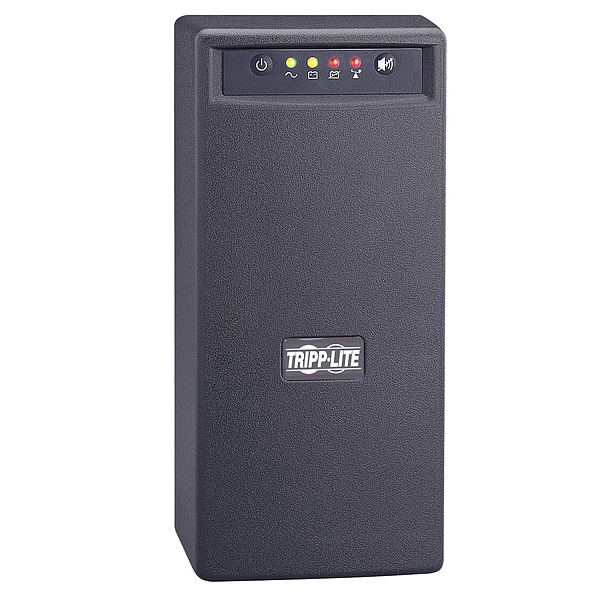

UPS System, 800VA, Line Interactive, Out: 220/230/240V AC In: 230V AC
| Item | UPS System |
|---|---|
| UPS Type | Line Interactive |
| Power Rating | 800 VA |
| Mounting | Tower |
| Wattage | 475 W |
| Input Voltage | 230V AC |
| Output Voltage | 220/230/240V AC |
| Backup Time (Half/Full Load) | 10.8 min/4.3 min |
| Outlet Type | UPS/Surge |
| Medical Grade | No |
| Number of Outlets | 4 |
| NEMA Plug Configuration | C14 |
| Display Type | No Display |
| Automatic Volts Regulation | Yes |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Depth | 8 in |
| Includes | (2) C13 to C14 Interconnection Cables, Line Interactive UPS, USB and Phone Line Cables |
| NEMA Receptacle Configuration | C13 |
| VA Rating - UPS Systems | 800 VA |
| Ports | TEL/DSL, USB |
| Hz | 50/60 Hz |
| Width | 8 in |
| Standards | CE, IEC/EN 62040, IRAM (Argentina), RoHS, SASO (Saudi Arabia), UL1778 |
| Cord Length | 6 ft |
| Fax/Modem Line Protection | Yes |
| Phase | Single |
| Special Features | Hot Swappable Batteries |
| Input Current | 2.4 A |
| Height | 11 in |
| Transfer Time | 2 to 4 msec |
| Overall Width | 5.2 in |
| Capacity - Batteries | 800 VA/475 W |
| Battery Type | VRLA |
| Housing Material | PVC |
| UPS Certifications | Tested to UL1778 (USA); CE; Tested to GOST (Russia); Tested to SASO (Saudi Arabia); Tested to IRAM (Argentina) |
| Alarm Cancel Operation | Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status |
| Battery Mode BTU / Hr. (Full Load) | 458 |
| Half Load Runtime (min.) | 10 min 48 sec |
| Primary Form Factor | Tower |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Communications Cable | USB interface cable included |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| AC Mode Efficiency Rating (100% Load) | 0.97 |
| UPS AC Suppression Joule Rating | 340 |
| Nominal Input Voltage(s) Supported | 230 V AC |
| UPS Power Module Dimensions (hwd, in.) | 10.8 x 5.2 x 7.5 |
| Primary UPS Height (mm) | 274 |
| Low Voltage Transfer to Battery Power (Setpoint) | 159 |
| Output AC Waveform (Battery Mode) | PWM sine wave |
| Individually Controllable Load Banks | No |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 159 |
| UPS Input Cord Length (ft.) | 0.5 |
| Hot-Swap PDU options | PDUBHV10 (2U / 8 C13 outlets) |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| Installation Form Factors Supported with Optional Accessories | Wallmount ( UPSWM - tower mounting kit) |
| Included Output Power Cables | Includes 2 C13 to C14 output power cables |
| Battery Recharge Rate (Included Batteries) | Less than 4.5 hours from 10% to 90% |
| Primary UPS Depth (mm) | 191 |
| UPS AC Suppression Response Time | Instantaneous |
| Internal UPS Replacement Battery Cartridge | RBC51 |
| Undervoltage Correction | Input voltages between 159 and 199 are boosted by 14% |
| Nominal Output Voltage(s) Supported | 220 V, 230 V, 240 V |
| Full Load Runtime (min.) | 4 min 18 sec |
| Output Volt Amp Capacity (VA) | 800 |
| UPS Input Connection Description | Attached 15cm line cord with C14 inlet. The C14 accepts a user-supplied AC power cord with country-specific plug. |
| Installation Form Factors Supported with Included Accessories | Tower |
| Relative Humidity | 0 to 95%, non-condensing |
| Output Voltage Regulation (Battery Mode) | +/- 5% |
| EMI / RFI AC Noise Suppression | Yes |
| Frequency Compatibility Details | Automatic frequency selection |
| Output Watt Capacity (Watts) | 475 |
| UPS Dataline Suppression | 1 line TEL/DSL (1 in / 1 out) |
| Input Phase | Single-Phase |
| Battery Access | Battery access door |
| DC System Voltage (VDC) | 12 |
| Communications Interface | USB |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Audible Alarm | Audible alarm indicates power-failure and low-battery conditions |
| Rated input current (Maximum Load) | 2.4 A |
| Expandable Runtime | No |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| LED Indicators | 4 LEDs indicate line power, battery power, overload and battery low/replace status |
| High Availability UPS Features | Hot swappable batteries |
| Load Capacity | 800 VA/475 W |
| Typical Battery Recharge Time | 4 hr |
| Form Factor | Tower |
| USB | Yes |
| Package Contents | Omni VS 800 VA Wall-mountable Tower UPS, OMNIVSINT800 line interactive UPS, 2 C13 to C14 interconnection cables, USB and phone line cables, Owner's manual with warranty information |
| Product Series | VS |
| Dataline Protection | RJ-11 |
| Additional Information | Voltage regulation description: Line interactive voltage regulation corrects brownouts as low as 159V back to usable levels, Direct pass through: Voltages of 199V and greater are passed through to connected equipment unchanged, Brownout correction: Input voltages between 159 and 199 are boosted by 14%, Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 159V or less. Resets back to line power as line voltage increases to 167V or higher, High voltage transfer to battery power: Yes, Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure, Battery Access: Battery access door allows user replacement of UPS batteries, Compatible with Tripp Lite's PowerAlert and Watchdog service software |
| Package Includes | OMNIVSINT800 line interactive UPS;2 C13 to C14 interconnection cables;USB and phone line cables;Owner's manual with warranty information |
| Output Capacity (VA) | 800 |
| UPS Applications | Home/Office Desktop |
| Product Certifications | GOST (Russia); IRAM (Argentina); UL 1778 |
| Output Capacity (Watts) | 475 |
| Product Compliance | SASO (Saudi Arabia); CE (Europe) |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Operating Temperature - Minimum | 32 deg F |
| Input Current - Maximum | 2.4 A |
| Manufacturer Warranty | 2 yr (Limited) |
| Includes Battery | Battery Included |
| Power Cord Length | 6 in |
| Visible Indicator Light Conditions | Battery Low, Overload, Power Status, Replace Battery |
| External Battery Compatible | Not External Battery Pack Compatible |
| Output Ports Included | USB |
| Battery Recharge Time | 4 hr 30 min |
| Operating Temperature - Maximum | 104 deg F |
| Audible Alarm Conditions | Low Battery |
| Replacement Battery Part Number | RBC51 |
| Power Rating - Real | 475 W |
| Data Line Protection | Includes Data Line Surge Protection |
| Package Quantity | 1 |
