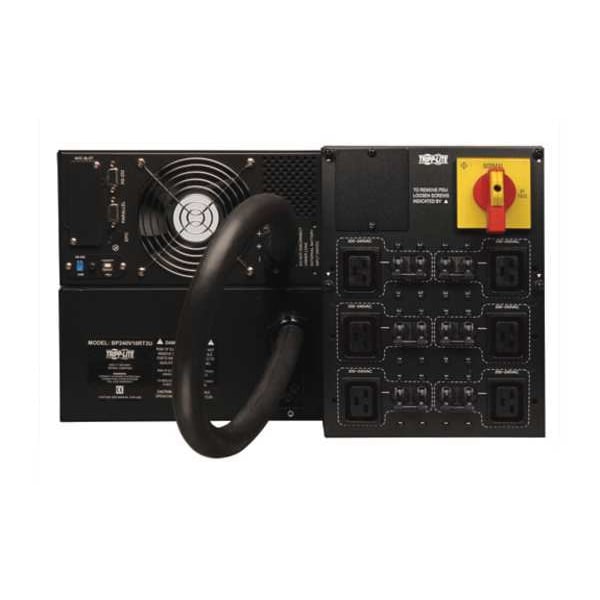

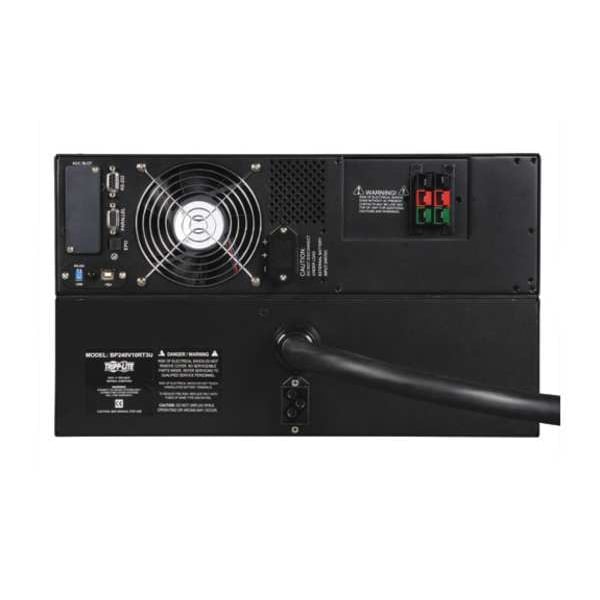

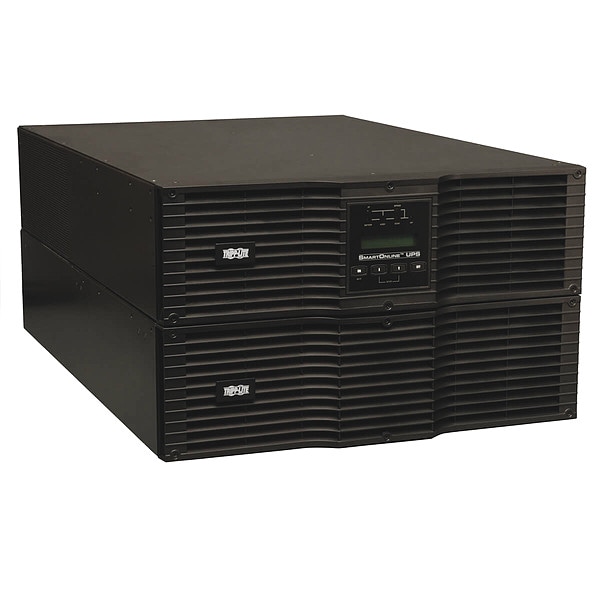

UPS System, 8kVA, Online/Double Conversion, Out: 200/208/220/230/240V AC In: 200/208/220/230/240V AC
| Promotion Restriction | Not eligible for promotion |
|---|---|
| VA Rating - UPS Systems | 8 kVA |
| Item | UPS System |
| UPS Type | Online, Double Conversion |
| Power Rating | 8 kVA |
| Mounting | Rack |
| Wattage | 7.2 kW |
| Input Voltage | 200/208/220/230/240V AC |
| Output Voltage | 200/208/220/230/240V AC |
| Backup Time (Half/Full Load) | 13.5 min/5.5 min |
| Outlet Type | Hardwired |
| Medical Grade | No |
| Number of Outlets | 6 |
| Height | 5 in |
| Transfer Time | 0 msec |
| Hz | 50/60 Hz |
| Depth | 26 in |
| NEMA Receptacle Configuration | C19 |
| Standards | CE (Europe), CSA (Canada), FCC Part 15 Class a (USA), IEC 61000, NOM (Mexico), RoHS, UL1778 |
| Width | 26 in |
| Includes | (4) Post Compatible Rack Rail Kit, BP240V10RT3U External Battery Pack, SUPDMB710IEC Detachable PDU with Manual Bypass Switch, USB, DB9 and EPO Cables |
| Special Features | Hot-Swappable Batteries |
| Automatic Volts Regulation | Yes |
| NEMA Plug Configuration | Not Applicable |
| Fax/Modem Line Protection | No |
| Ports | DB9 Serial, EPO, USB |
| Display Type | LCD |
| Phase | Single |
| Input Current | 46 A |
| Cord Length | No Cord |
| Capacity - Batteries | 8000 VA/6400 W |
| Input Connection | Hardwired |
| Housing Material | Steel |
| Battery Type | VRLA |
| External Battery Pack Compatibility | BP240V10RT3U ; BP240V787C-1PH |
| UPS Certifications | Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); CE; Meets FCC Part 15 Category A (EMI) |
| Frequency Compatibility Details | Output frequency matches input nominal on startup; Frequency conversion mode enables conversion of 60Hz to 50Hz or 50Hz to 60Hz (no de-rating) |
| Communications Cable | USB, DB9 serial and EPO cables included |
| DC System Voltage (VDC) | 240 |
| Minimum Required Rack Depth (inches) | 37.5 |
| Rated input current (Maximum Load) | 46A (200V), 44.2A (208V), 41.8A (220V), 40A (230V), 38.3A (240V) |
| Battery Replacement Description | Hot-swappable, user replaceable external battery packs |
| Output Voltage Regulation (Line Mode) | +/- 2% |
| Output kVA Capacity (kVA) | 8 |
| Voltage Regulation Description | 2% output voltage regulation in standard online, double-conversion mode |
| Primary UPS Height (mm) | 131 |
| EMI / RFI AC Noise Suppression | Yes |
| Output Voltage Regulation (Battery Mode) | +/- 2% |
| Individually Controllable Load Banks | No |
| Primary Form Factor | Rackmount |
| Power Factor | 0, 9 |
| Output Voltage Regulation (Economy Line Mode) | +/- 10% |
| Transfer Time (Economy Mode) | 8 ms. typical power failure response in optional economy mode |
| PowerAlert Software | For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert |
| Battery Mode BTU / Hr. (Full Load) | 2,432 |
| Undervoltage Correction | Corrects undervoltages as low as 100V |
| Operating Elevation (ft.) | 0-3000m (0 to 10,000 ft.) |
| UPS Dimensions Details | Includes 3U UPS/power module, 3U external battery pack plus SUPDMB710IEC PDU with bypass; MAXIMUM DEVICE DEPTH specification refers to the whole UPS installed depth with bypass PDU installed |
| Expandable Battery Runtime | Supports extended runtime with optional external battery packs |
| UPS AC Suppression Response Time | Instantaneous |
| AC Economy Mode Efficiency Rating (100% Load) | 0.96 |
| WatchDog Compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Voltage Compatibility (VAC) | 200, 208, 230, 240 |
| Operating Elevation (m) | 0-3000 m |
| Installation Form Factors Supported with Optional Accessories | 2 post rackmount ( 2POSTRMKITHD ) |
| Output Circuit Breakers | 20A double-pole (x6) protects 1 C19 outlet each |
| Included Mounting Accessory Description | 2 sets of adjustable 4 post rack rails included (for separate UPS and battery pack components); 2-9USTAND tower kit included (supports up to 9U in tower format) |
| UPS Input Connection Description | Supports North American 208/240V input (L1,L2,G) and International 230/220/240V (L,N,PE) input wiring |
| Economy Mode Operation | Optional economy mode enables high efficiency bypass operation with a maximum output voltage variation of +/-10%. Double conversion mode is automatically restored as mains voltage varies beyond +/-10% with less than 1 millisecond transfer time between modes. |
| Output Watt Capacity (Watts) | 7,200 |
| LED Indicators | 6 LEDs indicate line power, online mode, economy/bypass mode, on-battery, charger and AC output status; LCD screen offers additional information and control options |
| Low Voltage Transfer to Battery Power (Setpoint) | 100V |
| Input Phase | Single-Phase |
| Cold Start (Startup in Battery Mode During a Power Failure) | Cold-start operation supported |
| Nominal Output Voltage(s) Supported | 200 V, 208 V, 220 V, 230 V, 240 V |
| Audible Noise | 60 dBA at front side 1 meter |
| Communications Interface | USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface |
| Alarm Cancel Operation | Alarm cancel switch |
| Expandable Runtime | Yes |
| Installation Form Factors Supported with Included Accessories | 4 post 19 inch rackmount |
| Network Monitoring Port Description | Additional contact closure support with optional RELAYIOCARD and RELAYIOMINI interface cards. RELAYIOMINI installation requires removal of panel containing USB ports |
| High Voltage Transfer to Battery Power (Setpoint) | 300V |
| Front Panel LCD Display | Selectable LCD display with scroll and selection buttons enables UPS control and detailed monitoring options; LED/LCD panel rotates for viewing in rack/tower formats; LCD Display supports ENGLISH, FRENCH, GERMAN, ITALIAN, SPANISH and PORTUGUESE (see manual) |
| Nominal Input Voltage(s) Supported | 200 V AC, 208 V AC, 230 V AC, 240 V AC |
| UPS Certification Details | IEC 61000-4-5 1995 B Surge Immunity |
| AC Mode Efficiency Rating (100% Load) | 0.91 |
| Crest Factor | 0.125694444444444 |
| Audible Alarm | Unique audible alarms for all major UPS, environmental and power conditions (see manual) |
| High Availability UPS Features | Automatic inverter bypass; Battery Independent Restart; Hot swappable UPS power module; Hot swappable batteries; Manual bypass switch |
| Relative Humidity | 0 to 95%, non-condensing |
| AC Economy Mode BTU / Hr. (Full Load) | 1,024 |
| UPS Power Module Dimensions (hwd, in.) | 5.14 x 17.5 x 25.82 |
| Output Volt Amp Capacity (VA) | 8,000 |
| Half Load Runtime (min.) | 13 min 30 sec |
| Recommended Electrical Service | 50A |
| Output AC Waveform (Battery Mode) | Pure Sine wave |
| Switches | 2 Switches control off/on power status and alarm-cancel/self-test operation; 2 additional switches support set and execute scrolling LCD functions; bundled PDU includes bypass switch to enable hot-swap UPS power module replacement |
| Rack Height | 6 U |
| Storage Temperature Range | +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius |
| Network Management Cards | WEBCARDLX, SNMPWEBCARD, TLNETCARD, RELAYIOCARD, MODBUSCARD |
| Maximum Device Depth (in.) | 32.5 |
| Cooling Method | Fan |
| Overvoltage Correction | Corrects overvoltages up to 300V |
| Output kW Capacity (kW) | 7.2 |
| UPS AC Suppression Joule Rating | 2,565 |
| Battery Recharge Rate (Included Batteries) | Less than 6 hours from 10% to 90% (typical, full load discharge) |
| Operating Temperature Range | +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius |
| AC Mode BTU / Hr. (Full Load) | 2,732 |
| Primary UPS Depth (mm) | 656 |
| Full Load Runtime (min.) | 5 min 30 sec |
| Output Capacity Details | Supports up to 105% load continuously in double conversion mode, 106 to 125% for 1 minute, 126% to 150% for 30 seconds; Loads over 150% trigger immediate bypass mode operation to support loads directly from mains power; Double conversion mode is automatically restored as load levels are reduced to 95% or less |
| Hot Swappable | Yes |
| Package Contents | SmartOnline SU8000RT3UG 8000VA Tower/Rack-mountable UPS, 3U power module with detachable hot-swap PDU input/output panel and bypass switch, 3U external battery pack, Two sets of 4 post rackmount rails (one for each of the 3U components), One set of tower stands for upright tower con |
| Load Capacity | 8000 VA/6400 W |
| Form Factor | Tower, Rack |
| Software Included | PowerAlert Software |
| Typical Battery Recharge Time | 8 hr |
| Emergency Power OFF | Yes |
| Bypass Switch | Manual |
| Network Management | SNMP Manageable |
| Output Capacity (VA) | 8,000 |
| Package Includes | SU8000RT3UPM 3U UPS power module;BP240V10RT3U external battery pack;SUPDMB710IEC Detachable PDU with manual bypass switch;Four post compatible rack rail kit (2 sets);USB, DB9 and EPO cables |
| Product Compliance | CE (Europe); FCC Part 15 Class A (USA) |
| Output Capacity (Watts) | 7,200 |
| Online Mode Heat Dissipation (BTU/Hr) @ Full Load | 2,732 |
| UPS Applications | Mission Critical Applications |
| Product Certifications | IEC 61000; CSA (Canada); NOM (Mexico); UL 1778 |
| Unit Dimensions (hwd / in.) | 10.5 x 17.5 x 35 |
| Unit Dimension Details | Includes 3U UPS/power module, 3U external battery pack plus SUPDMB710IEC PDU with bypass; MAXIMUM DEVICE DEPTH specification refers to the whole UPS installed depth with bypass PDU installed |
| Frequency | 50/60 Hz |
| Overall Height | 5.16 in |
| Receptacle Configuration | C19 |
| Input Current - Maximum | 46 A |
| Battery Chemistry | Valve Regulated Lead Acid |
| Input Current - Minimum | 38.3 A |
| Operating Temperature - Minimum | 32 deg F |
| Overall Width | 17.52 in |
| External Battery Pack Part Number | BP240V10RT3U, BP240V787C-1PH |
| Power Rating - Real | 7.2 kW |
| Surge Suppression Rating | 2,565 J |
| Manufacturer Warranty | 2 yr |
| Overall Depth | 25.83 in |
| External Battery Compatible | External Battery Pack Compatible |
| Output Ports Included | DB9 Serial, EPO, SNMP, USB |
| Includes Battery | Battery Included |
| Number of Outlets - Surge Only | 6 |
| Power Cord Length | Not Applicable |
| Automatic Voltage Regulation | Includes Automatic Voltage Regulation |
| Operating Temperature - Maximum | 104 deg F |
| Battery Recharge Time | 6 hr |
| Package Quantity | 1 |
