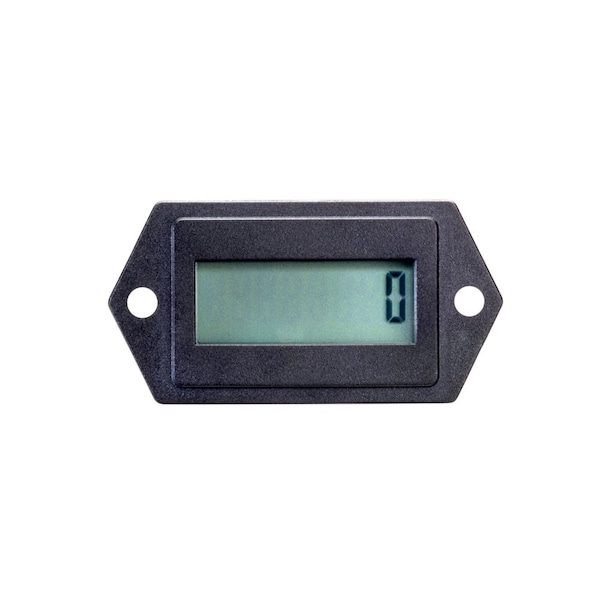

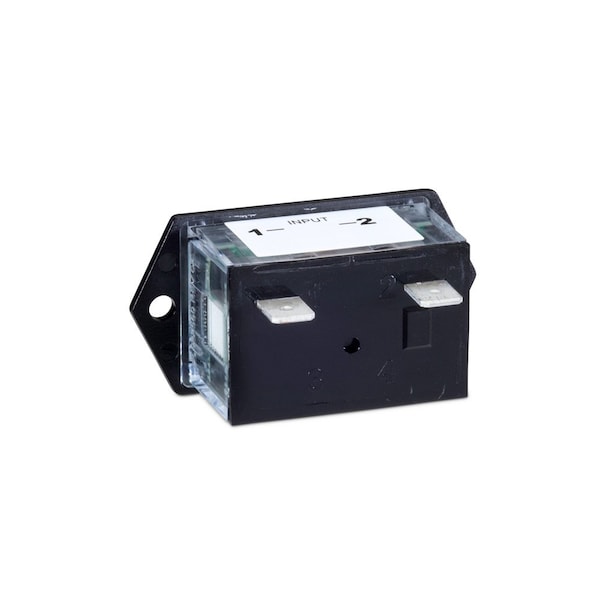

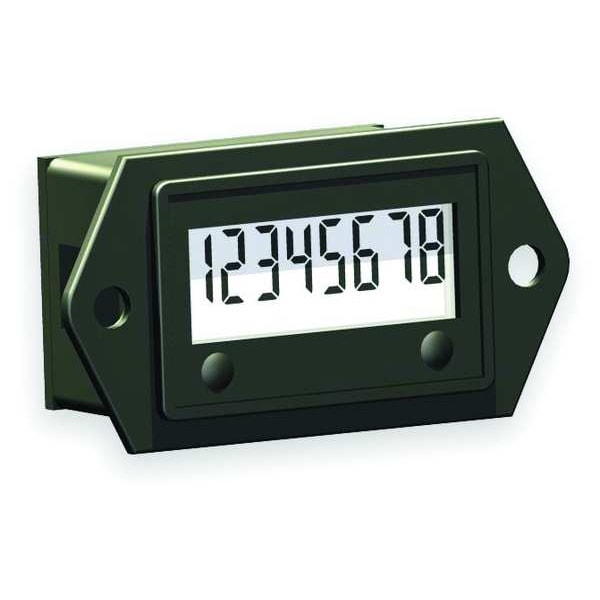

Contador electrónico de 8 dígitos, con 3 preajustes y pantalla LCD.
| Item | Electronic Counter |
|---|---|
| Reset Type | No Reset |
| Number of Digits | 8 |
| Standards | CE Approved, cUL, REACH, RoHS, UKCA, UL, WEEE |
| Character Height | 0.28 in |
| Scaler | No |
| Connector Type | Tabs |
| IP Rating | IP66 |
| Special Features | Totally Sealed From Moisture And Dirt, Programmable Output Thresholds, Front Panel Programmable |
| Width | 1.43 in |
| NEMA Rating | 12, 4, 4X |
| Depth | 1.09 in |
| Output Rating | Not Applicable |
| Mounting | 2-Hole Rectangular |
| Interface | None |
| Display | LCD |
| Max. Counts per Second | 40 |
| Series | 34 |
| Min. On/Off Pulse | 1 msec |
| Accuracy | 100% |
| Output | Open-Drain MOSFET |
| Fits | 1.45 in x 0.95 in Panel Cutout |
| Preset | 3 |
| Height | 1.1 in |
| Input Signal | 10 to 300V DC, 20 to 300V AC (50/60 Hz) |
| Power Required | Self Powered (15+ yr Battery) |
| Length | 1-3/4 in |
| Input Voltage | 10 to 300 V DC, 20 to 300 V AC, 3 to 30 V DC |
| Features | Indoor and Outdoor Applications, Optional Gasket and Polarized Lens |
| Overall Width | 1-1/2 in |
| Overall Height | 1-1/8 in |
| Relay | No |
| Reset Option | Non-Reset, Reset |
| Power Type | Battery Powered |
| Input | 10 - 300V DC, 20 - 300V AC, 3 - 30V DC |
| Digits | 8 Digits |
| Counter Type | Totalizing Counter |
| Certifications | CE, cUL, IP66, NEMA 4 & 12, UL |
| Housings | 2-Hole, 3-Hole, Flush Rectangular, SAE Round, Snap-In |
| Cutout Height | 1-1/2 in |
| Count Speed - Maximum | 40 Hz |
| Overall Depth | 1-1/8 in |
| Terminal Connection Type | Tab |
| Mounting Style | Panel |
| Digit Color | Black |
| Counts per Second - Maximum | 40 |
| NEMA Enclosure Rating | 12, 4 |
| Output Type | Not Applicable |
| Overall Diameter | Not Applicable |
| Power Source | Battery |
| Display Features | High Contrast |
| Counter Display Type | LCD |
| Digit Height - Maximum | 0.28 in |
| Package Quantity | 1 |
