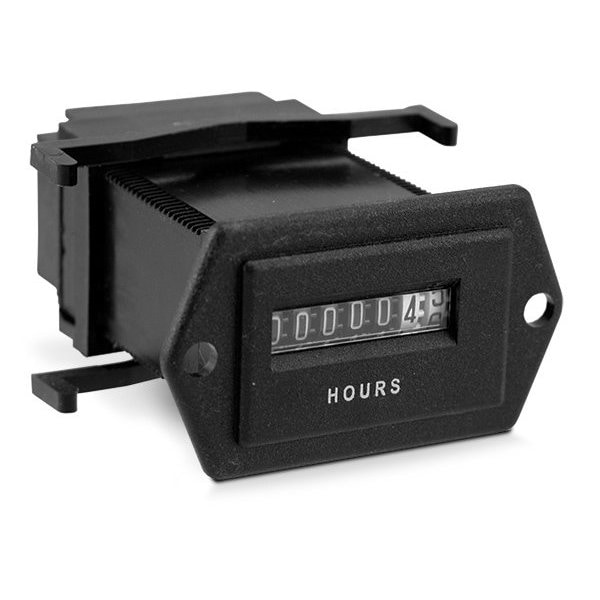

Hour Meter 115Vac, 60Hz, 7 Fig 2-Hole 1.
| Item | Hour Meter |
|---|---|
| Display Type | Electromechanical |
| Reset Type | No Reset |
| Display Units | Hours |
| Operating Voltage | 115VAC |
| Number of Digits | 7 |
| Bezel Face Shape | Rectangular |
| Bezel Face Size | 2.1 in x 1.21 in |
| Bezel Face Type | Panel Mount |
| Time Range | 0 to 99999.99 |
| Width | 2.45 in |
| Temp. Range | -22 to 158 deg F |
| Mounting Method | Screw |
| Elapsed Time To | 99,999.99 |
| Fits Panel Cut Out | 1.45 in x 0.95 in |
| Input Type | 115 VAC, 230 VAC, 24 VAC Synchronous Motor |
| Ambient Temp. Range | -22 to 158 deg F |
| Hz | 60 Hz |
| Terminal Type | Screw |
| Standards | CE, CUL, UKCA, UL |
| Overall Height | 1-1/4 in |
| Overall Width | 2-1/8 in |
| Input | 115V AC, 230V AC, 24V AC, Synchronous Motor |
| Housings | 2-Hole, 3-Hole, Flush Rectangular, SAE Round, Square |
| Digits | 7 Digits |
| Reset Option | Non-Reset |
| Power Type | Electro-Mechanical |
| Certifications | CE, cUL, IP66, UKCA, UL |
| Timer Type | Hour Meter |
| Overall Diameter | Not Applicable |
| Cutout Diameter | Not Applicable |
| Cutout Width | 1-1/2 in |
| Counter Display Type | Analog |
| Bezel Face Height | 1-1/4 in |
| Includes Mounting Hardware | Included |
| Operating Temperature - Maximum | 180 deg F |
| Mounting Style | Panel |
| Display Span - Maximum | 99,999.99 |
| Cutout Height | 7/8 in |
| Bezel Face Diameter | Not Applicable |
| Input Voltage - Minimum | 90 V AC |
| Operating Temperature - Minimum | -22 deg F |
| Mount Securing Method | 2-Hole |
| Input Voltage - Maximum | 115 V AC |
| Bezel Face Width | 2-1/8 in |
| Cutout DIN Size | Not Applicable |
| Overall Depth | 2-1/2 in |
| Package Quantity | 1 |
