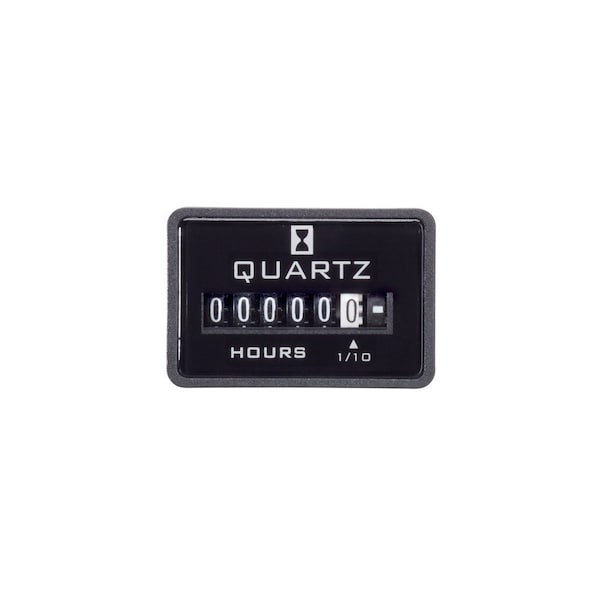

Contador de horas, CC, 2 orificios, al ras, polímero
| Item | Hour Meter |
|---|---|
| Display Type | Electromechanical |
| Reset Type | No Reset |
| Display Units | Hours, Tenths |
| Operating Voltage | 10 to 80V DC |
| Number of Digits | 6 |
| Bezel Face Shape | Rectangular |
| Bezel Face Size | 1.60 in x 1.10 in |
| Bezel Face Type | Flush Mount |
| Time Range | 0 to 99999.9 |
| Material of Construction | Black Polymer |
| Bezel To Back Length | 2.15 in |
| Elapsed Time To | 99,999.9 |
| Fits | Panel Opening of 1.45 x 0.95 in |
| Mounting Method | Clip |
| Temp. Range | -40 to 185 deg F |
| Ambient Temp. Range | -40 to 185 deg F |
| Terminal Type | Spade |
| Standards | CE, CUL, RoHS, UKCA, UL |
| Overall Width | 1-5/8 in |
| Overall Height | 1-1/8 in |
| Input | 10-80V DC |
| Timer Type | Hour Meter |
| Power Type | Electro-Mechanical |
| Certifications | CE, cUL, IP66, NEMA 4 & 12, ROHS, UKCA, UL |
| Reset Option | Non-Reset |
| Digits | 6 Digits |
| Housings | 2-Hole, 3-Hole, Cup Mount, Flush Rectangular, SAE Round, Square, Stirrup Mount |
| Hour Unit Increment | Tenth |
| Cutout Height | 1 in |
| Bezel Face Height | 1-1/8 in |
| Mount Securing Method | Clip |
| Operating Temperature - Maximum | 185 deg F |
| Display Span - Maximum | 99,999.9 |
| Input Voltage - Minimum | 10 V DC |
| Mounting Style | Flush |
| Bezel Face Width | 1-5/8 in |
| Overall Diameter | Not Applicable |
| Cutout Diameter | Not Applicable |
| Input Voltage - Maximum | 80 V DC |
| NEMA Enclosure Rating | 12, 4 |
| Cutout Width | 1-1/2 in |
| Bezel Face Diameter | Not Applicable |
| Operating Temperature - Minimum | -40 deg F |
| Includes Mounting Hardware | Included |
| Cutout DIN Size | Not Applicable |
| Counter Display Type | Analog |
| Overall Depth | 2-1/4 in |
| Package Quantity | 1 |
