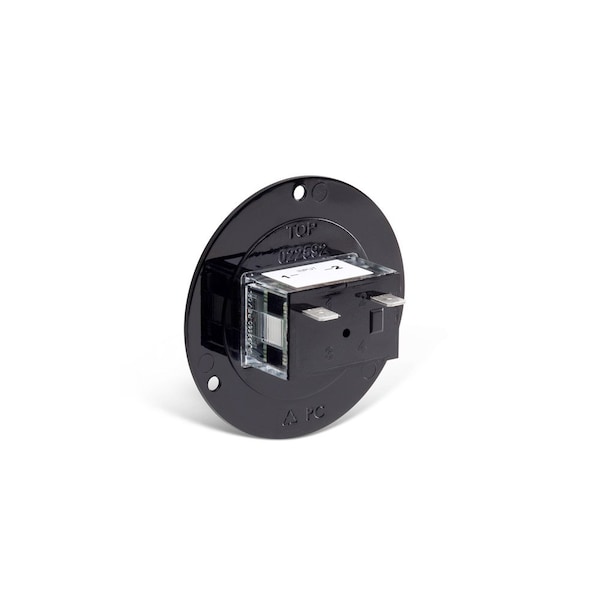

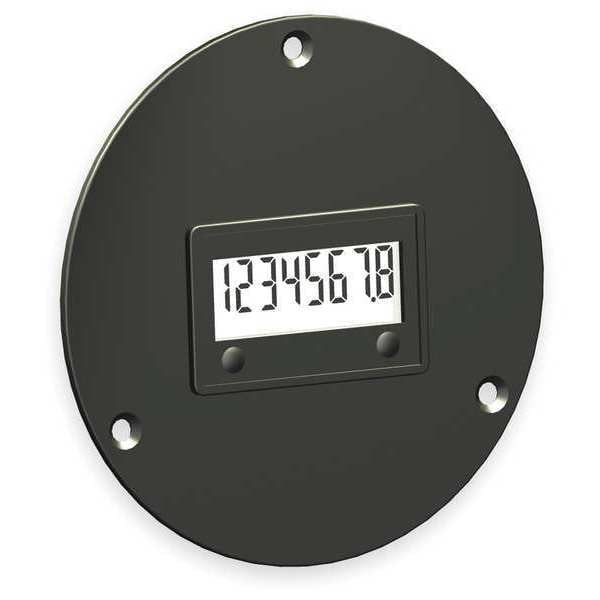

Contador de horas LCD, de 3 agujeros, con brida de 2.87 pulgadas.
| Item | Hour Meter |
|---|---|
| Display Type | LCD |
| Reset Type | No Reset |
| Display Units | Hours, Tenths |
| Operating Voltage | 20 to 300VAC, 10 to 300VDC |
| Number of Digits | 8 |
| Bezel Face Shape | Round |
| Bezel Face Size | 2.86 in dia |
| Bezel Face Type | Flange Mount |
| Time Range | 0 to 9999999.9 |
| Temp. Range | -40 to 185 deg F |
| Hz | 50/60 Hz |
| Input Type | 10 to 300 V DC or 20 to 300 V AC |
| Mounting Method | 3-Screw |
| Fits | 1.45 in X 0.95 in Panel Cutout |
| Elapsed Time To | 999,999.9 |
| Ambient Temp. Range | -40 to 185 deg F |
| Depth | 1 in |
| Bezel To Back Length | 3/4 in |
| NEMA Rating | 12, 4, 4X |
| Terminal Type | 1/4 in Spade Connector |
| Overall Width | Not Applicable |
| Standards | CE, CUL, UL |
| Overall Height | Not Applicable |
| Input | 10-300V DC, 20-300V AC |
| Housings | 2-Hole, 3-Hole, Flush Rectangular, SAE Round, Snap-In |
| Timer Type | Hour Meter |
| Certifications | CE, cUL, IP66, NEMA 4 & 12, UL |
| Power Type | Battery Powered |
| Digits | 8 Digits |
| Reset Option | Non-Reset, Reset |
| Cutout DIN Size | Not Applicable |
| Mounting Style | Flange |
| Cutout Width | 37-1/2 in |
| Operating Temperature - Maximum | 140 deg F |
| Includes Mounting Hardware | Included |
| Bezel Face Height | Not Applicable |
| Bezel Face Diameter | 2-7/8 in |
| Overall Diameter | 2-7/8 in |
| Bezel Face Width | Not Applicable |
| Display Span - Maximum | 9,999,999.9 |
| Cutout Height | 24-1/2 in |
| Mount Securing Method | 3-Hole |
| NEMA Enclosure Rating | 12, 4 |
| Hour Unit Increment | Tenth |
| Cutout Diameter | Not Applicable |
| Overall Depth | 1-1/8 in |
| Counter Display Type | LCD |
| Input Voltage - Minimum | 10 V AC/DC |
| Input Voltage - Maximum | 300 V AC/DC |
| Operating Temperature - Minimum | 14 deg F |
| Package Quantity | 1 |
