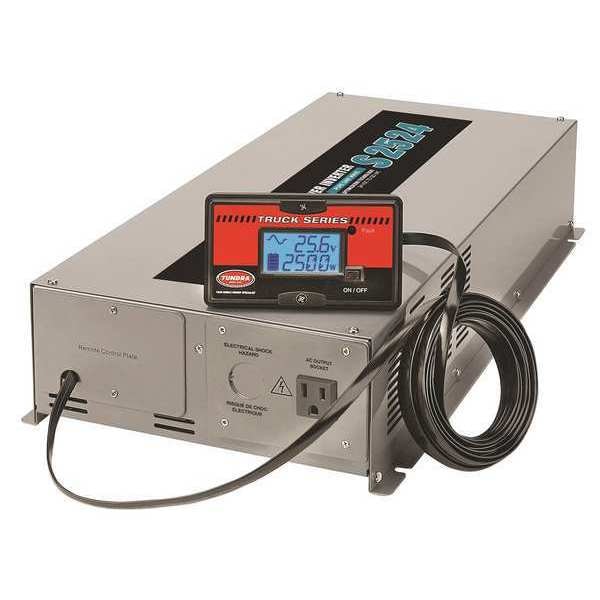

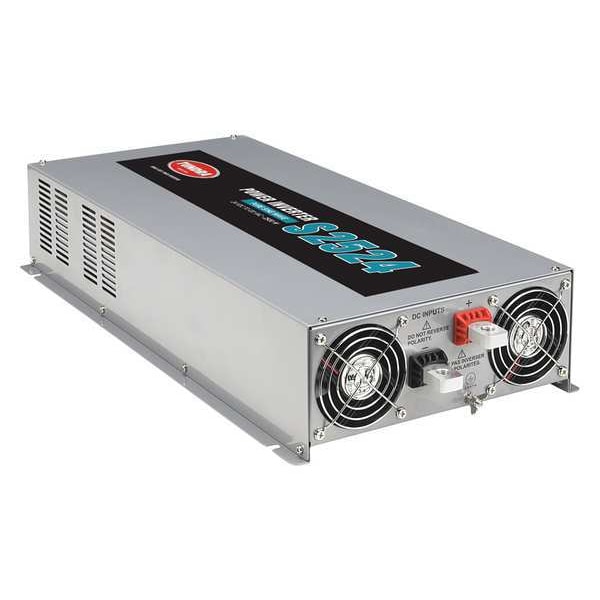

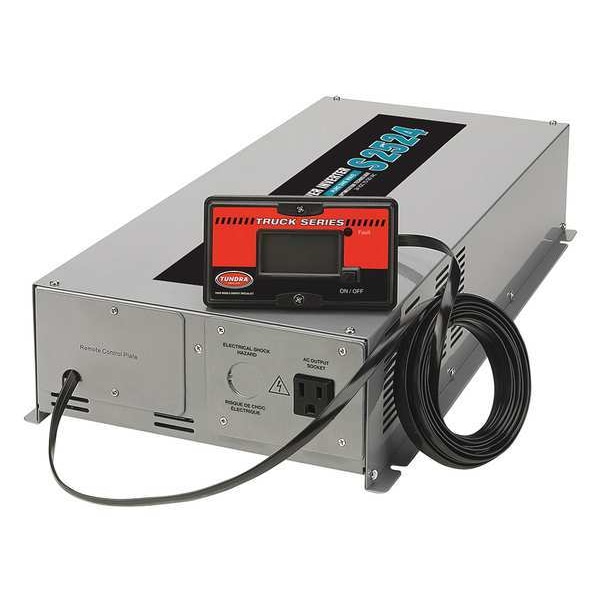

Power Inverter, Pure Sine Wave, 5,000 W Peak, 2,500 W Continuous, 1 Outlets
| Item | Power Inverter |
|---|---|
| Peak Output Power | 5,000 W |
| Continuous Output Power | 2,500 W |
| Inverter Output Form | Pure Sine Wave |
| Inverter Input Voltage | 24V DC |
| Inverter Output Voltage | 120V AC |
| Outlet Type | Hardwired, Standard 3-Prong Outlet |
| DC Connection | Terminal Bock |
| Number of Outlets | 1 |
| Depth | 25 in |
| Nominal Output Power | 2,500 W |
| Includes | LCD Remote Control |
| Standards | UL 458 |
| Height | 7-1/4 in |
| Width | 14 in |
| Case Material | Steel |
| Features | High Capacity, Ultra-High Output Efficiency and Continuous Output Capacity |
| Application | Buses, Coaches |
| Overall Height | 4-1/8 in |
| Overall Width | 10-3/4 in |
| Output Frequency | 60 Hz |
| Maximum Operating Temperature | 131 deg F |
| Minimum Operating Temperature | -30 deg F |
| Type of Indicator | Green Light |
| Output Voltage | 120 V AC |
| Output Connection | NEMA 5-15R |
| NEMA Rating | NEMA 5-15R |
| Output Current | 15 A |
| Output Form | Pure Sine Wave |
| Inverter DxWxH | 22-5/8 in x 10-3/4 in x 4-1/8 in |
| Fused | Yes |
| Overall Depth | 22-5/8 in |
| Input Voltage | 24V DC |
| Efficiency | 99% |
| Input Connection | Terminal Blocks |
| Package Quantity | 1 |
