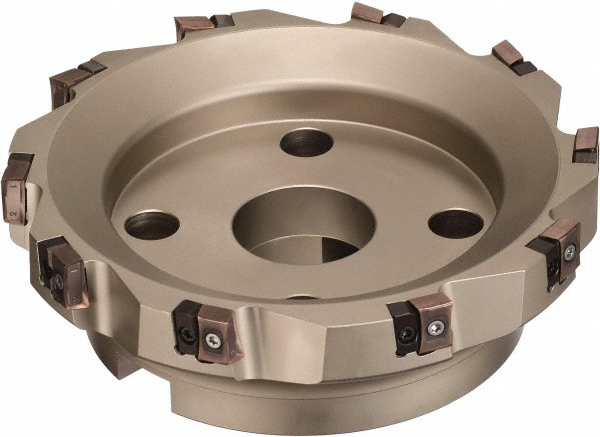

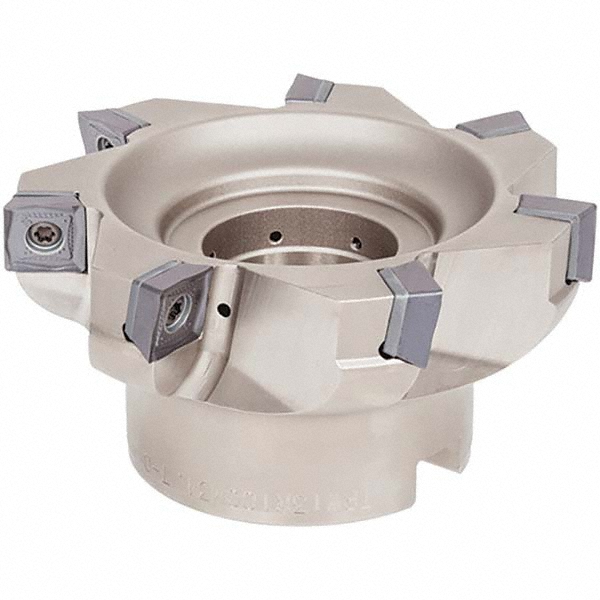

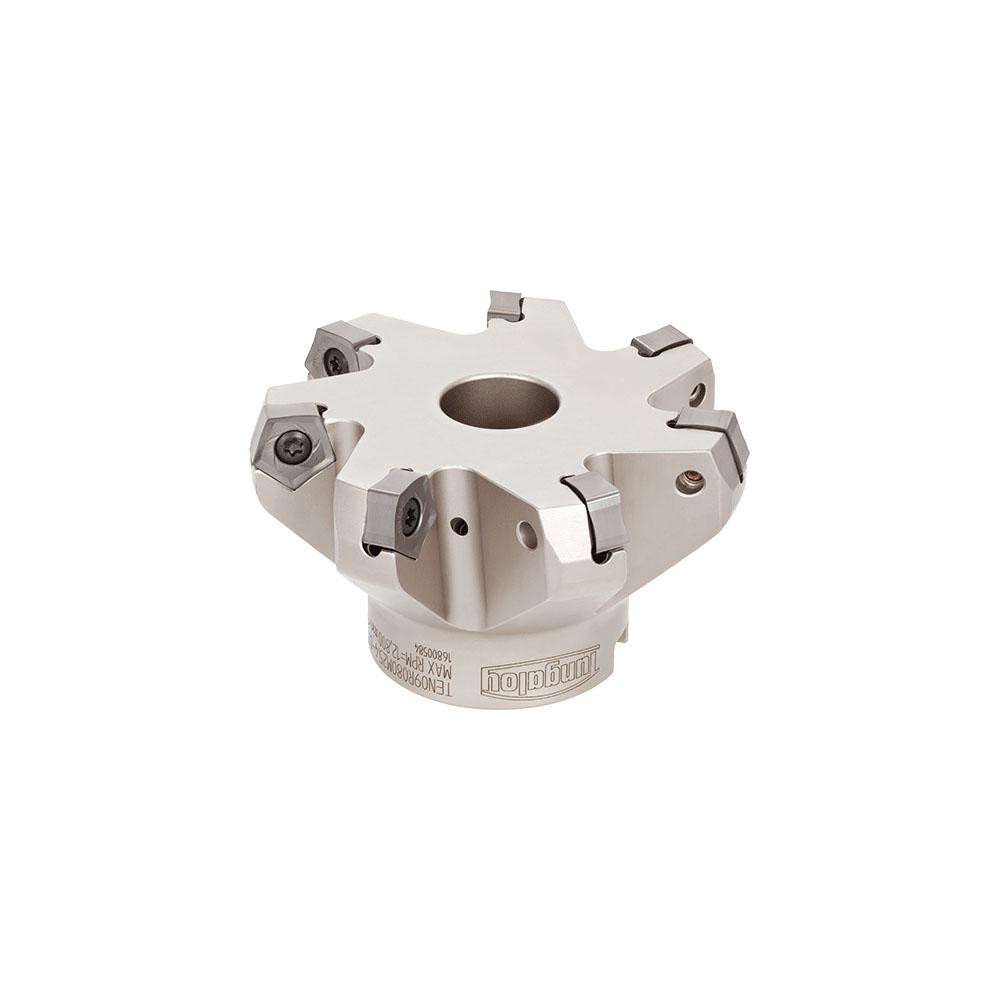

Takes 6 Inserts, 90° Lead Angle, 50mm High, LN.. 11.., LN.. 16.. Insert Style, Through Coolant

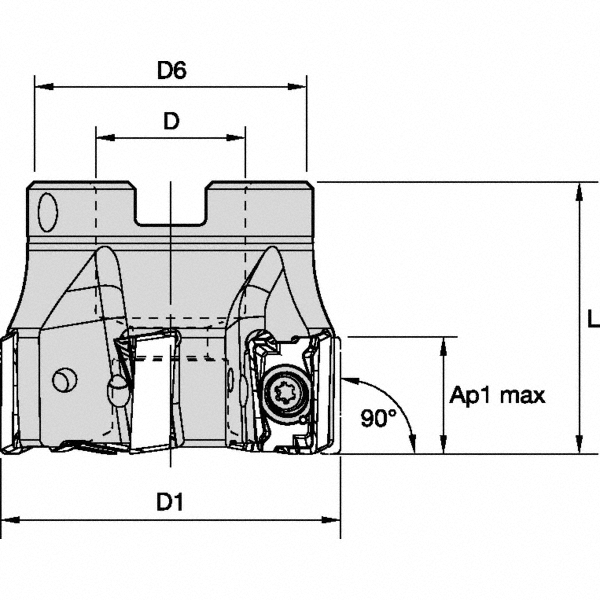

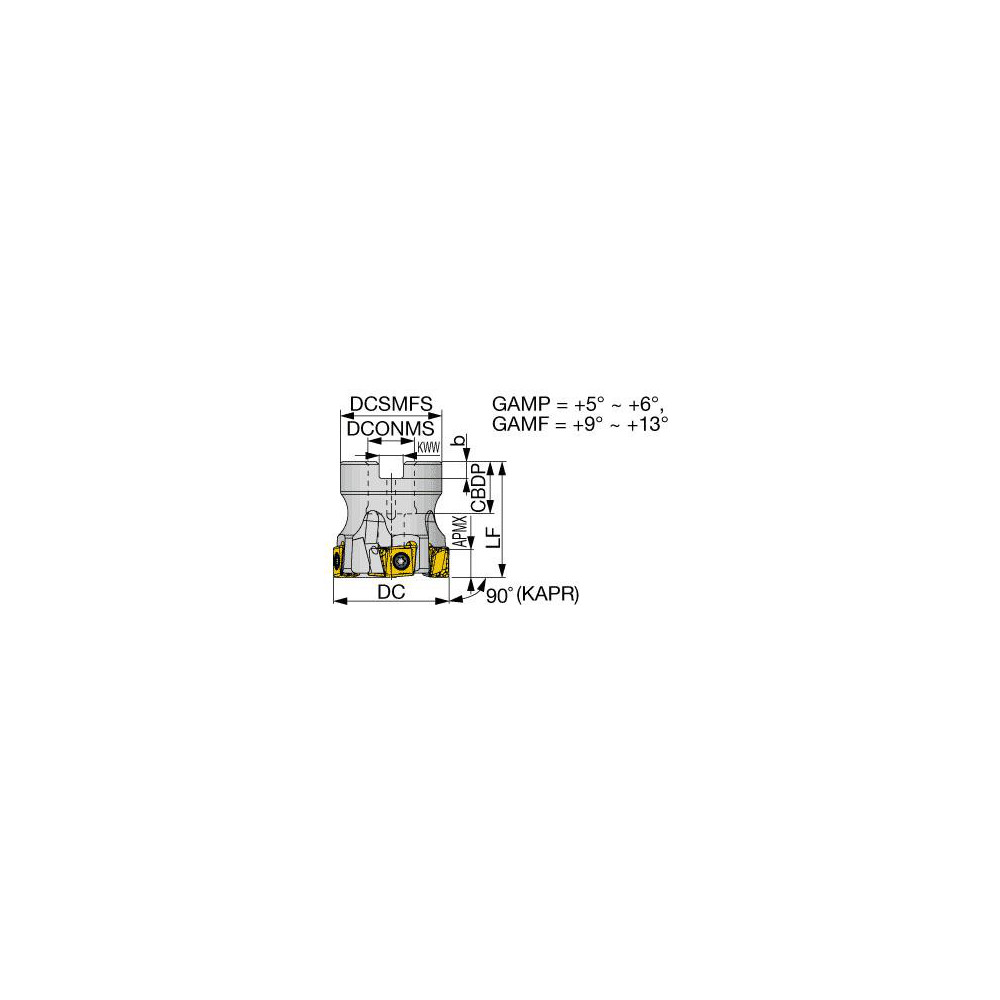

| Maximum Cutting Diameter (mm) | 100.00 |
|---|---|
| Maximum Depth of Cut (mm) | 15.10 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Compatible Insert Size Code | LN 16; LN 11 |
| Cutter Style | TPM16 |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | TecMill |
| Overall Height (Decimal Inch) | 50.00 |
| Keyway Width (mm) | 12.70 |
| Hub Diameter (mm) | 60.00 |
| Standards | ISO |
| Keyway Depth (mm) | 8.00 |
| Complete Insert Compatibility | LMMU160916PNER-MJ; LMMU110708PNER-MJ; LMMU160924PNER-MJ; LMMU110732PNER-MJ; LMMU110724PNER-MJ; LMMU160932PNER-MJ; LMMU160908PNER-MJ; LMMU110716PNER-MJ |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 47676994 |
