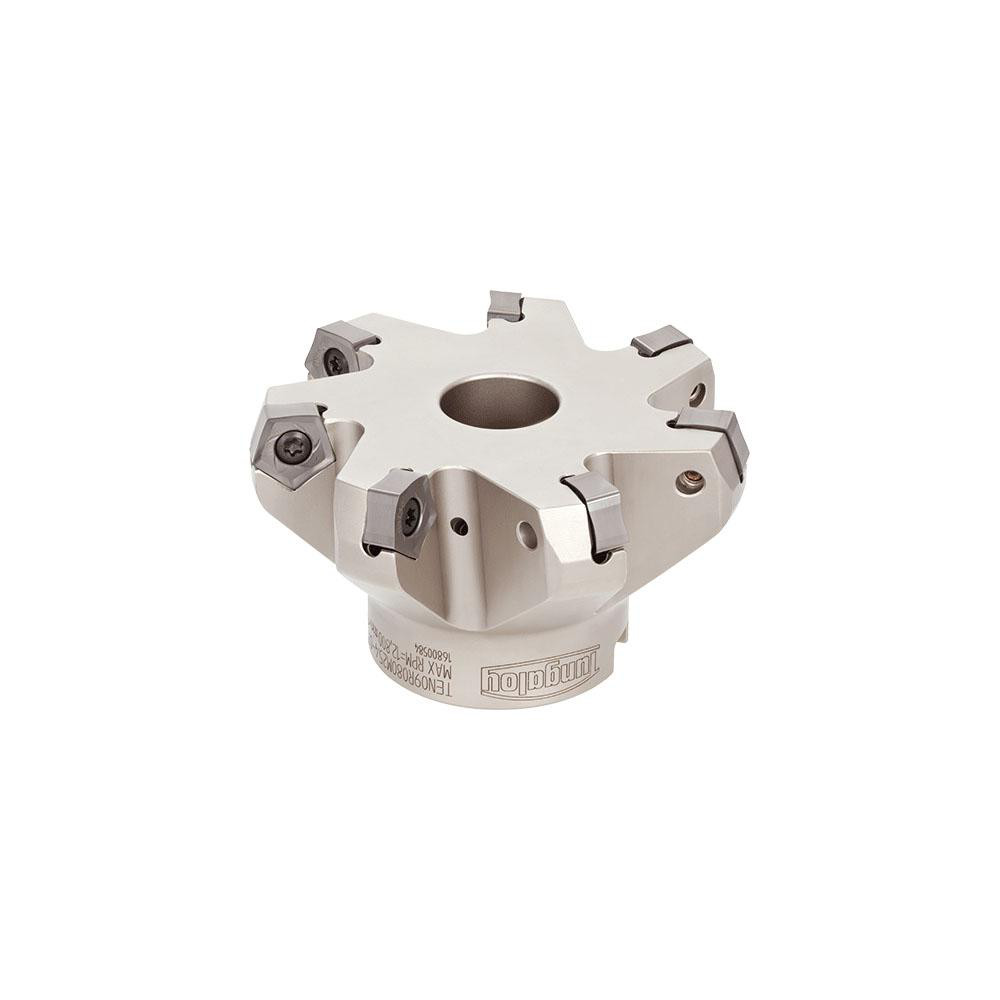

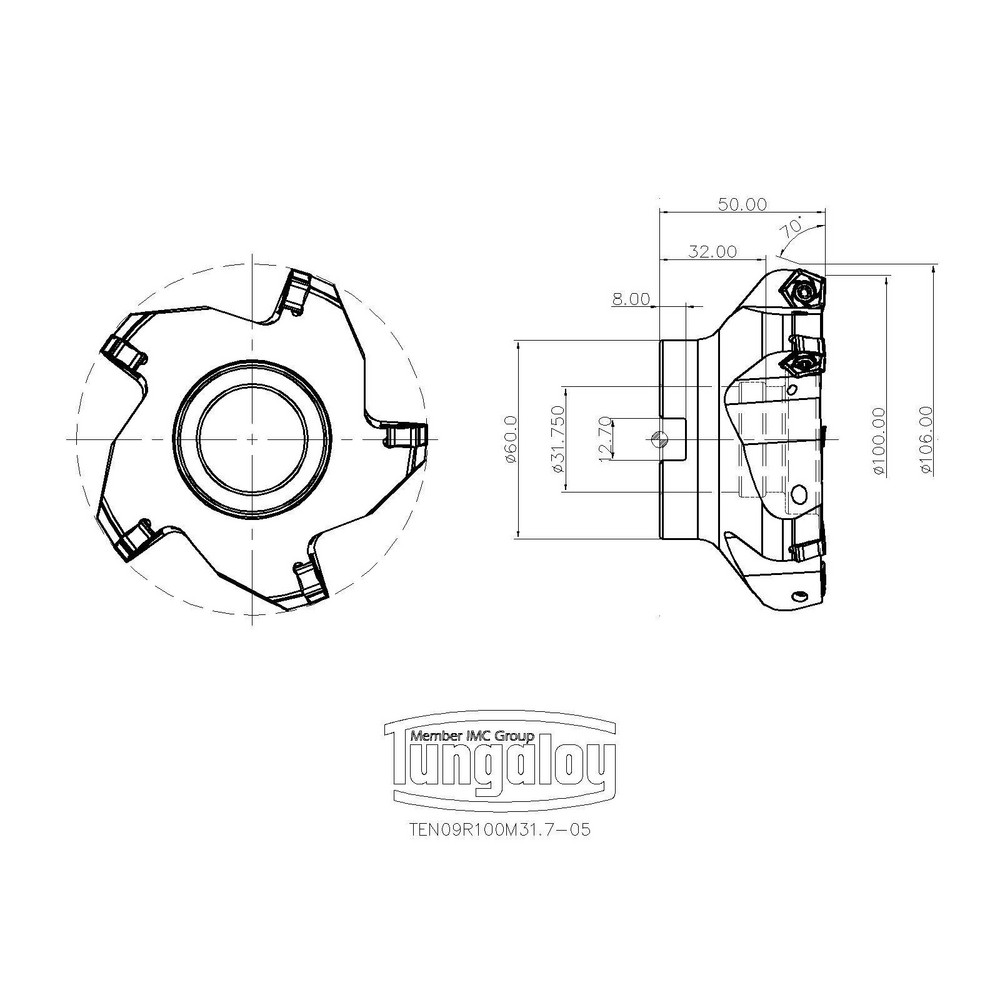

Takes 5 Inserts, 70° Lead Angle, 50mm High, PN.U 0905.. Insert Style, Through Coolant
| Minimum Cutting Diameter (mm) | 100.00 |
|---|---|
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 6.40 |
| Arbor Hole Diameter (mm) | 31.75 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Compatible Insert Size Code | PN U0905 |
| Cutter Style | TEN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 70 |
| Rake | Negative |
| Series | Dopent |
| Overall Height (Decimal Inch) | 50.00 |
| Keyway Width (mm) | 12.70 |
| Hub Diameter (mm) | 60.00 |
| Standards | ISO |
| Keyway Depth (mm) | 8.00 |
| Complete Insert Compatibility | PNCU0905GNEN-ML; PNCU0905GNEN-MJ; PNCU0905GNER-MJ; PNCU0905GNFR-AJ; PNMU0905GNEN-MJ; PNCU0905GNER-W |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 47649108 |
