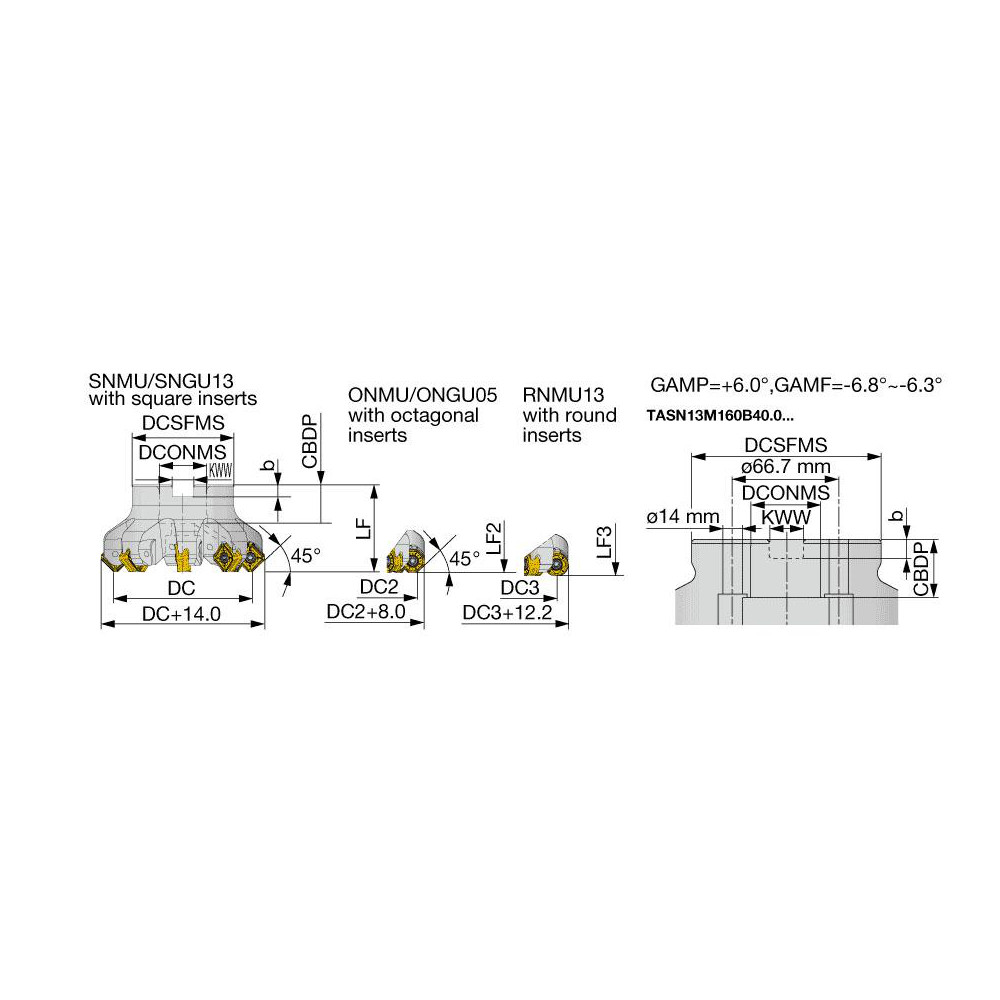

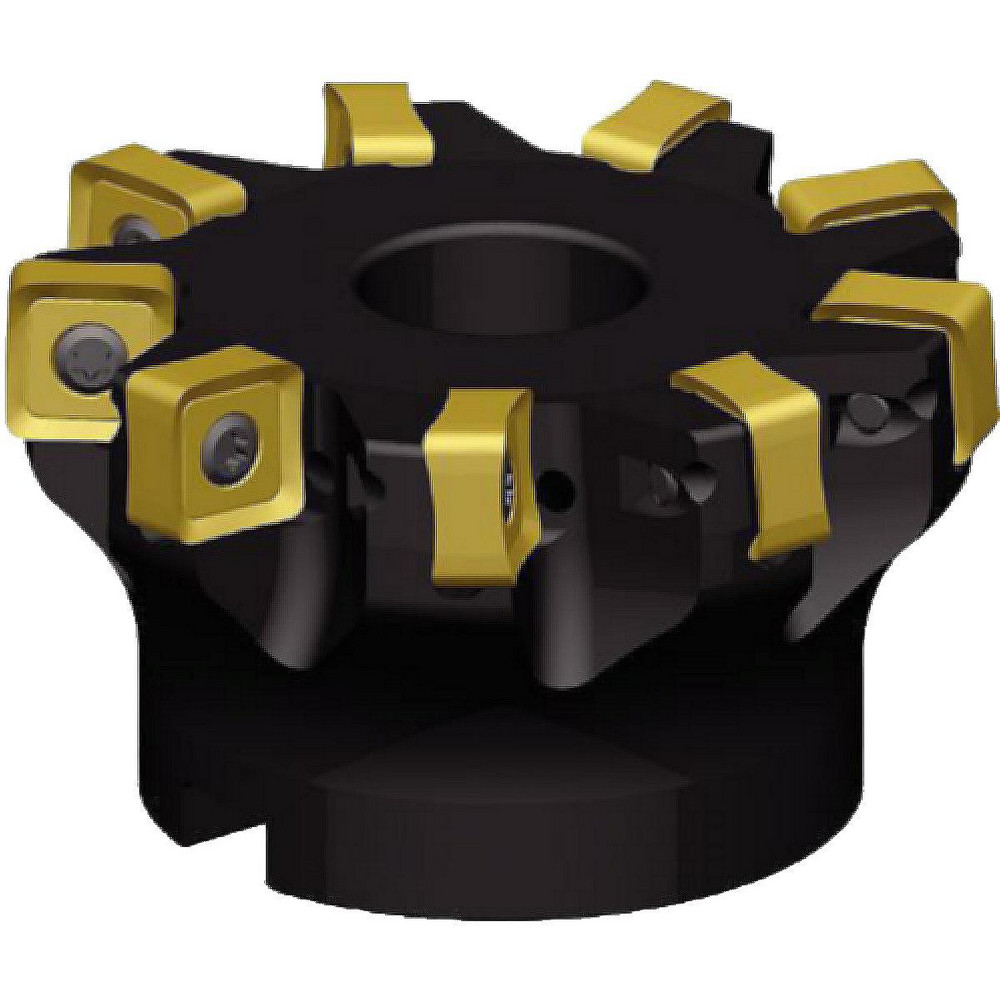

Takes 10 Inserts, 45° Lead Angle, 63mm High, ON.., RN.., SN.. Insert Style, Through Coolant, Series DoTripleMill
| Minimum Cutting Diameter (mm) | 123.70 |
|---|---|
| Maximum Cutting Diameter (mm) | 125.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 40.00 |
| Compatible Insert Size Code | SN; RN; ON |
| Cutter Style | TASN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 45 |
| Rake | Positive (Axial); Negative (Radial) |
| Series | DoTripleMill |
| Overall Height (Decimal Inch) | 63.00 |
| Keyway Width (mm) | 16.40 |
| Hub Diameter (mm) | 71.00 |
| Standards | ISO |
| Keyway Depth (mm) | 9.00 |
| Complete Insert Compatibility | SNMU1307ANEN-MJ; SNGU1307ANEN-MJ; RNMU1307ZNER-MJ; SNGU1307ANEN-MH; ONMU0507ANEN-MJ; ONGU0507ANEN-MJ; SNGU1307ANEN-W; ONGU0507ANEN-W; RNGU1307ZNER-MJ |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 10 |
| Number Of Flutes | 10 |
| Country of Origin | Japan |
| MSC Number | MSC# 47598628 |
