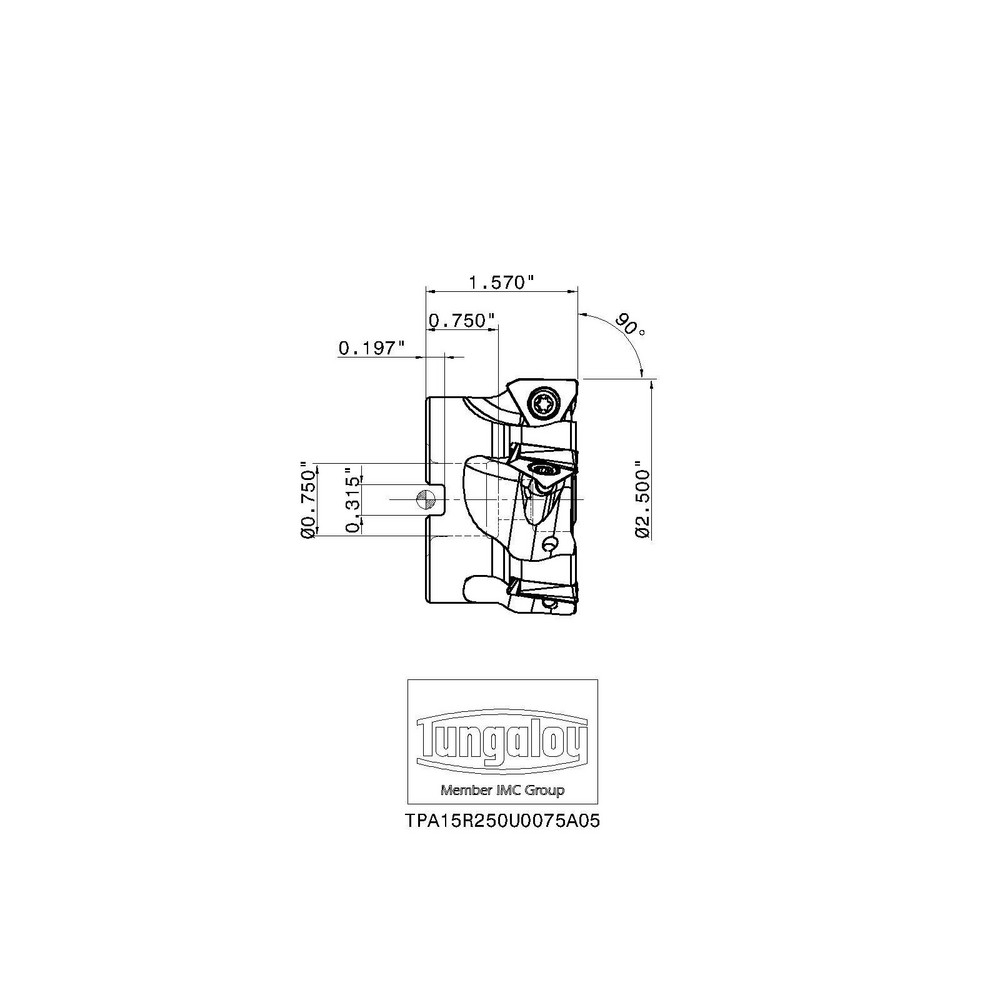

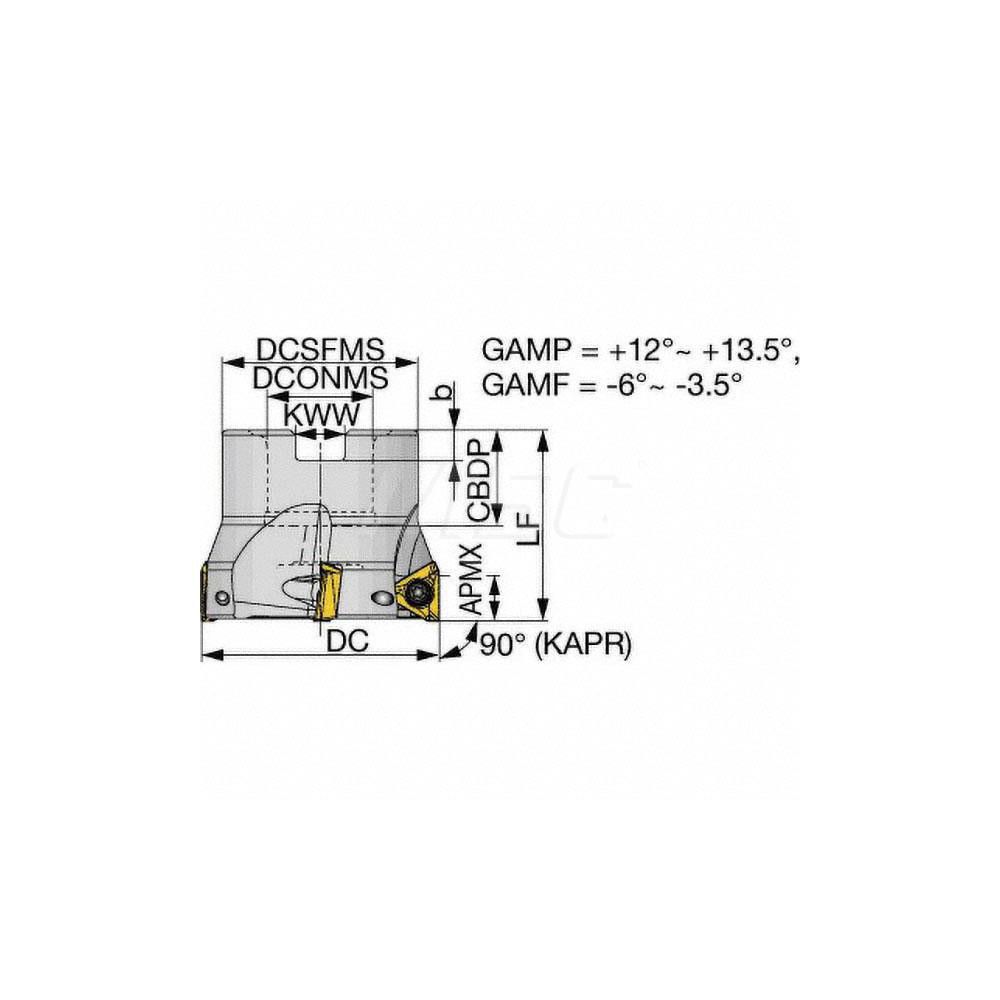

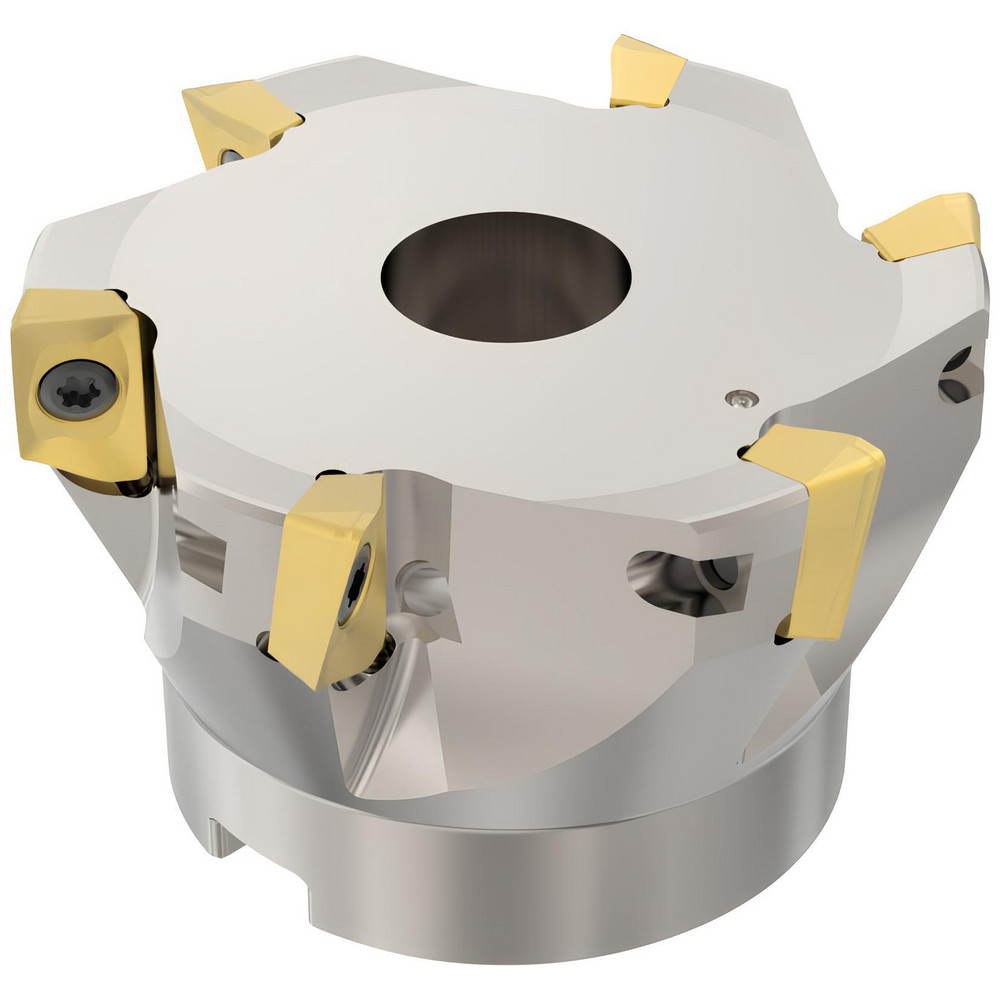

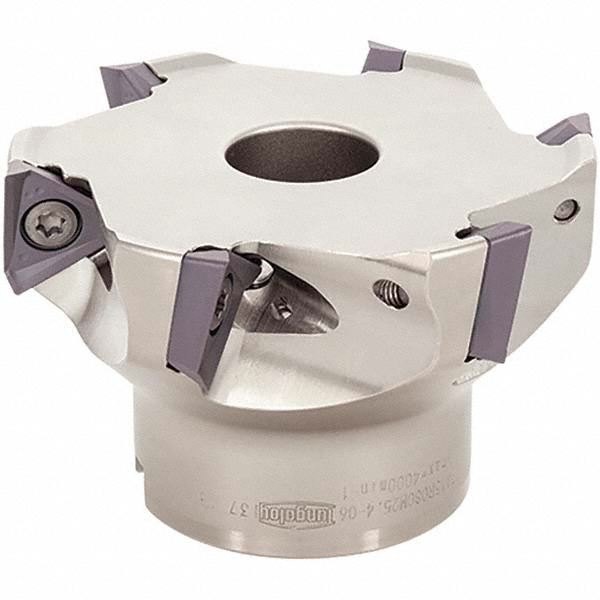

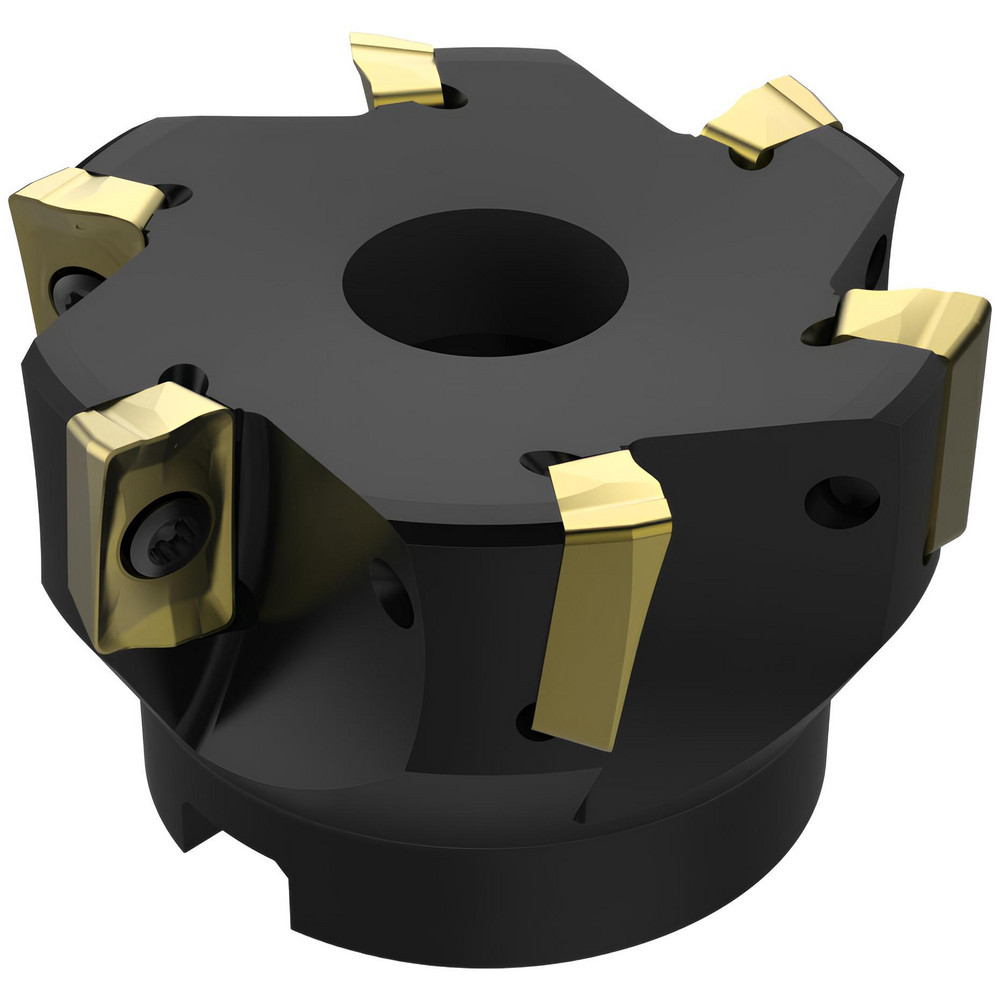

Takes 5 Inserts, 90° Lead Angle, 1.57" High, TOMT 15.. Insert Style, Through Coolant, Series Tung-Tri
| Maximum Cutting Diameter (Inch) | 2-1/2 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | TOMT 15 |
| Cutter Style | TPA |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Rake | Positive (Axial); Negative (Radial) |
| Series | Tung-Tri |
| Overall Height (Decimal Inch) | 1.5700 |
| Keyway Width (Decimal Inch) | 0.315 |
| Standards | ISO |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Japan |
| MSC Number | MSC# 47614573 |
