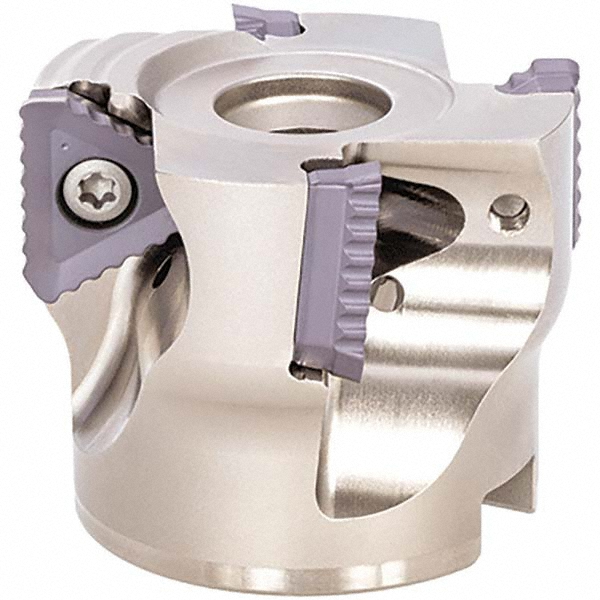

Takes 5 Inserts, 90° Lead Angle, 1.57" High, TC.T 16.. Insert Style, Through Coolant, Series Tung-Tri Shred
| Maximum Cutting Diameter (Inch) | 2-1/2 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.6370 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | TC T 16 |
| Cutter Style | TPTC |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | Tung-Tri Shred |
| Overall Height (Decimal Inch) | 1.5700 |
| Standards | ISO |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Japan |
| MSC Number | MSC# 47631080 |
