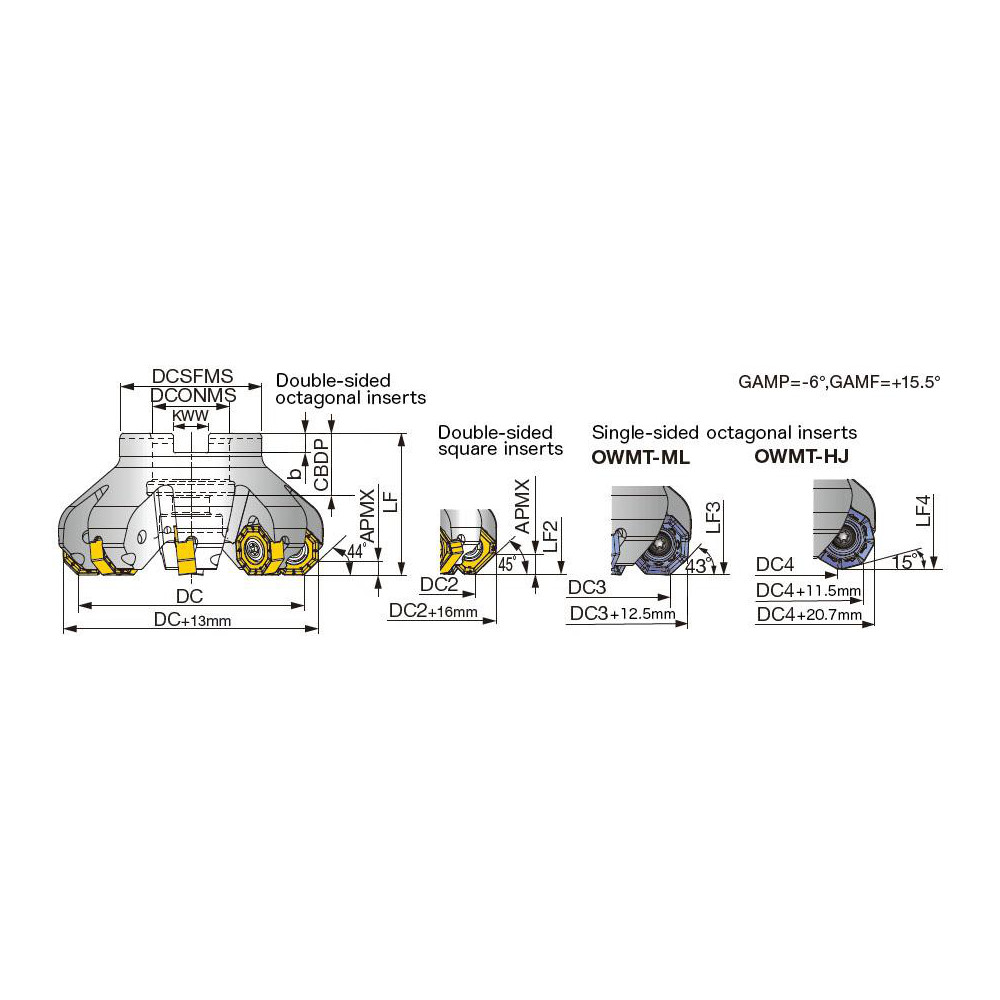

Takes 6 Inserts, 45° Lead Angle, 1-3/4" High, ON.U .., OWMT .., SN.U .. Insert Style, Through Coolant, Series DoOcto
| Maximum Cutting Diameter (Inch) | 2-1/2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2950 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | ON U; SN U; OWMT |
| Cutter Style | TAN |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 45 |
| Series | DoOcto |
| Overall Height (Decimal Inch) | 1.7500 |
| Keyway Width (Decimal Inch) | 0.3130 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Hub Diameter (Inch) | 1-3/4 |
| Standards | ISO |
| Complete Insert Compatibility | ONHU0705ANTN-ML; SNMU1706ANTR-ML; ONHU0705ANPN-MJ; SNMU1706ANPR-MJ; ONMU0705ANPN-MJ; ONMU0705ANPN-ML; ONHU0705ANPR-W; SNHU1706ANPR-MJ; SNHU1706ANTR-ML; SNHU1706ANFN-W |
| UNSPSC Code | 27112803 |
| Keyway Depth (Decimal Inch) | 0.1880 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 47125067 |
