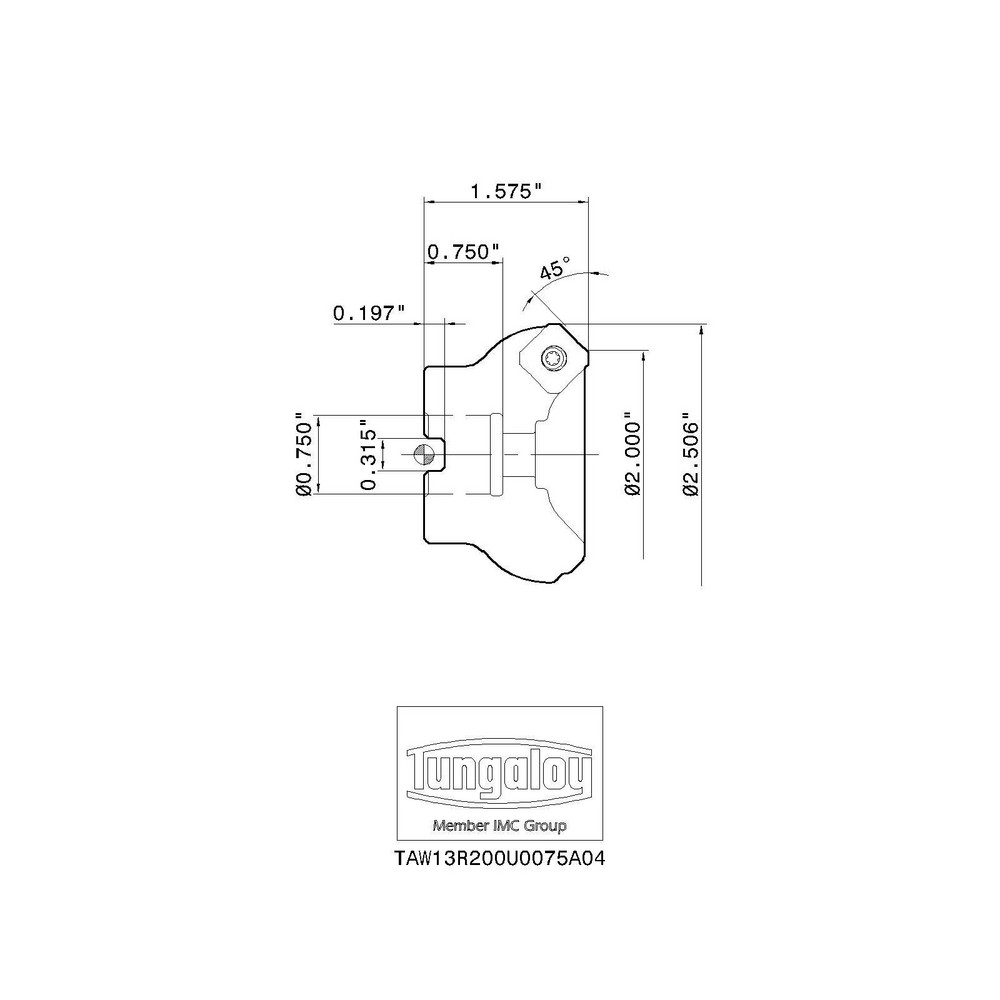

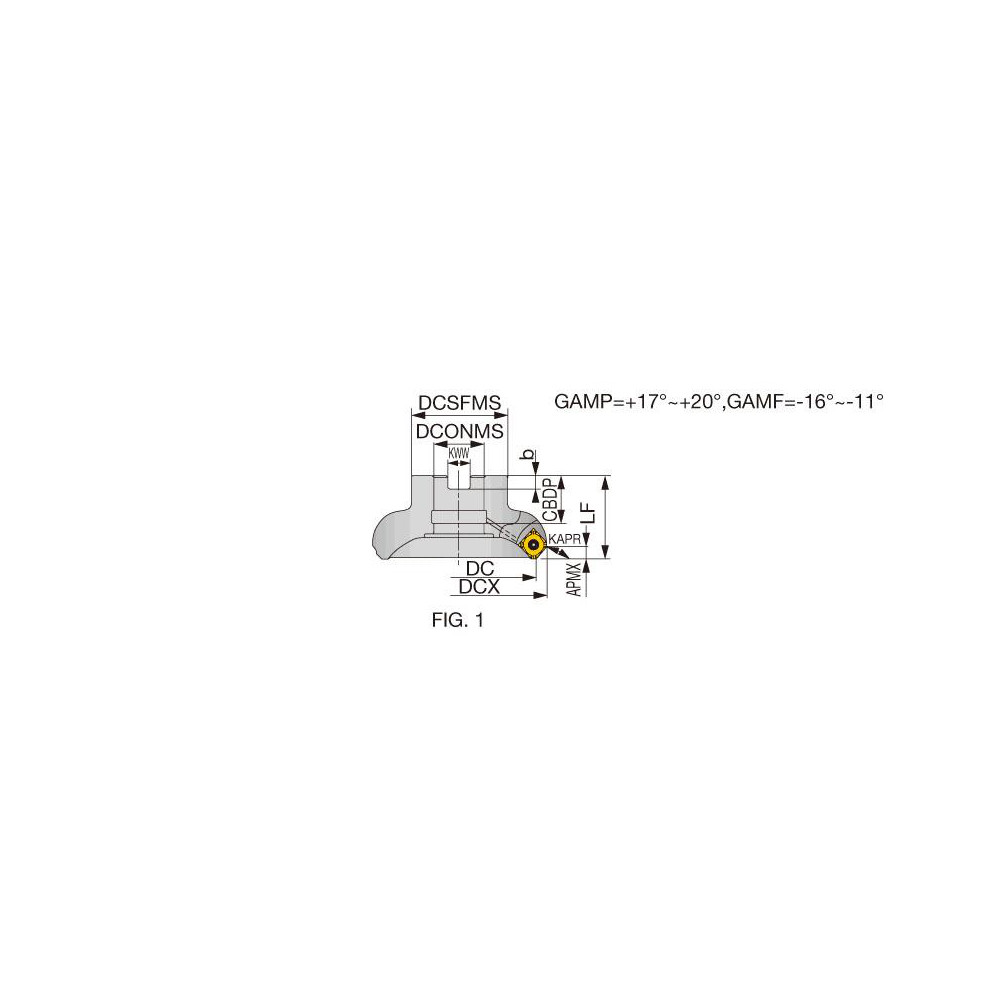

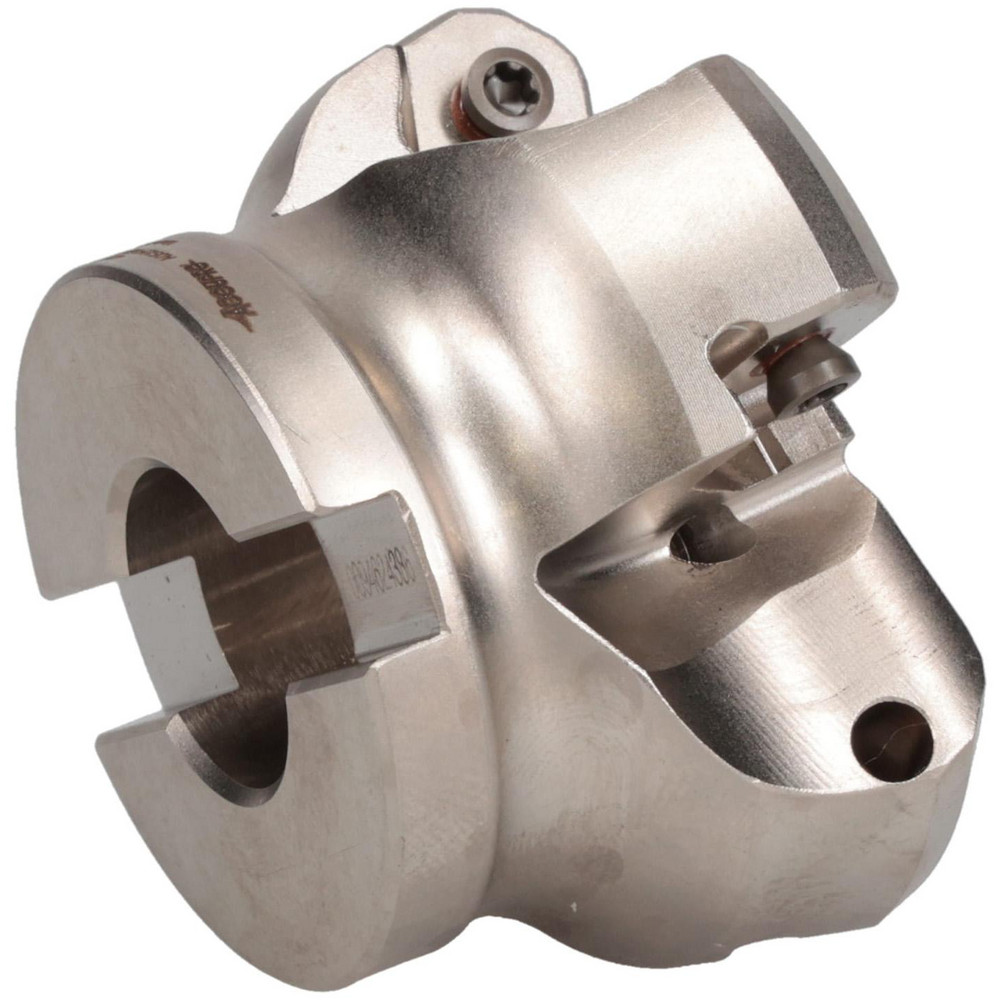

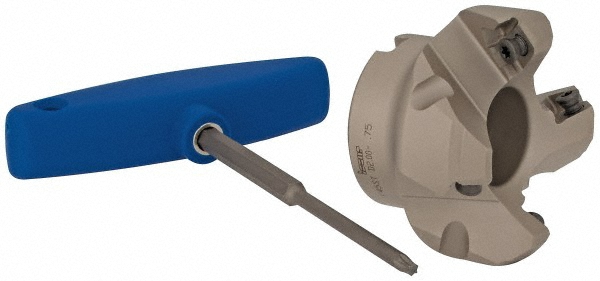

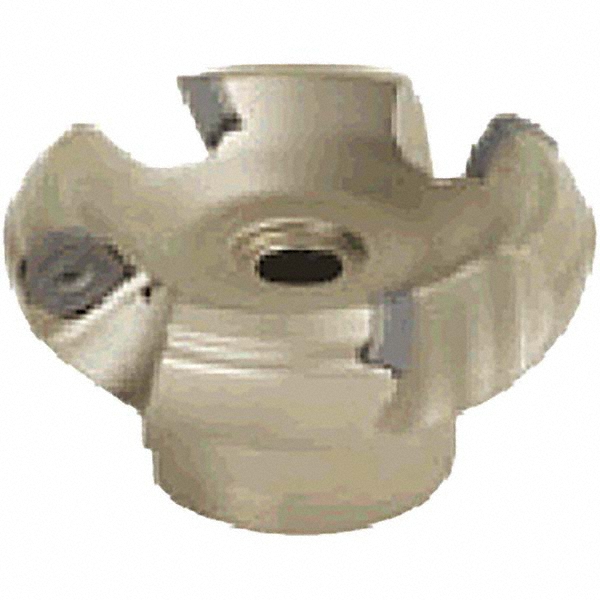

Takes 4 Inserts, SW.T 13 Insert, Right Hand Cut, Through Coolant, Series TungMill
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.5060 |
| Maximum Depth of Cut (Decimal Inch) | 0.2000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Compatible Insert Size Code | 13 |
| Cutter Style | TAW13 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | 17 (Axial);-16 (Radial) |
| Series | Tungmill |
| Hub Diameter (Decimal Inch) | 3.9700 |
| Keyway Width (Decimal Inch) | 0.315 |
| Overall Height (Decimal Inch) | 1.5750 |
| Standards | ISO |
| Complete Insert Compatibility | SWMT 13; SWGT 13 |
| Number Of Cutter Inserts | 4 |
| Coolant Through | Yes |
| UNSPSC Code | 23291600 |
| Country of Origin | Japan |
| MSC Number | MSC# 40177669 |
