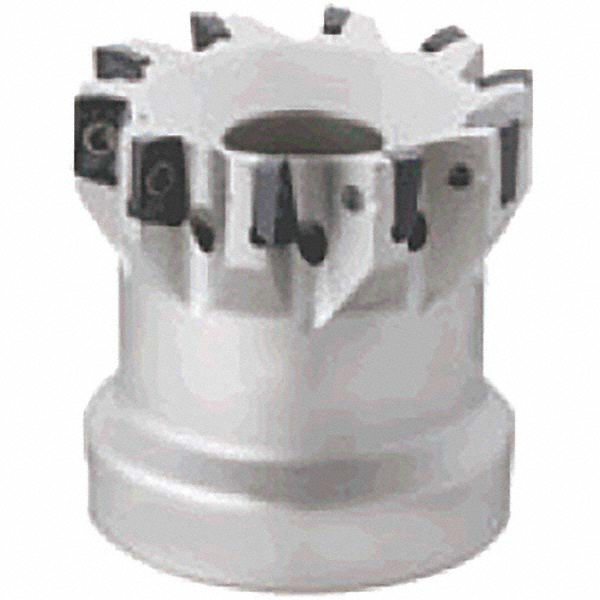

Takes 12 Inserts, 90° Lead Angle, 1.575" High, AO.T0702... Insert Style, Through Coolant
| Maximum Cutting Diameter (Inch) | 2 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2760 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | AO T0702 |
| Cutter Style | TPO07 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | TungRec |
| Overall Height (Decimal Inch) | 1.5750 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Hub Diameter (Decimal Inch) | 1.6930 |
| Standards | ISO |
| Complete Insert Compatibility | AOMT070216PDPR-MJ; AOMT070208PDPR-MJ; AOGT070204PDFR-AJ; AOMT070204PDPR-MJ; AOMT070202PDPR-MJ; AOMT070208PDPR-HJ |
| UNSPSC Code | 27112803 |
| Keyway Depth (Decimal Inch) | 0.1970 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 12 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 38385928 |
