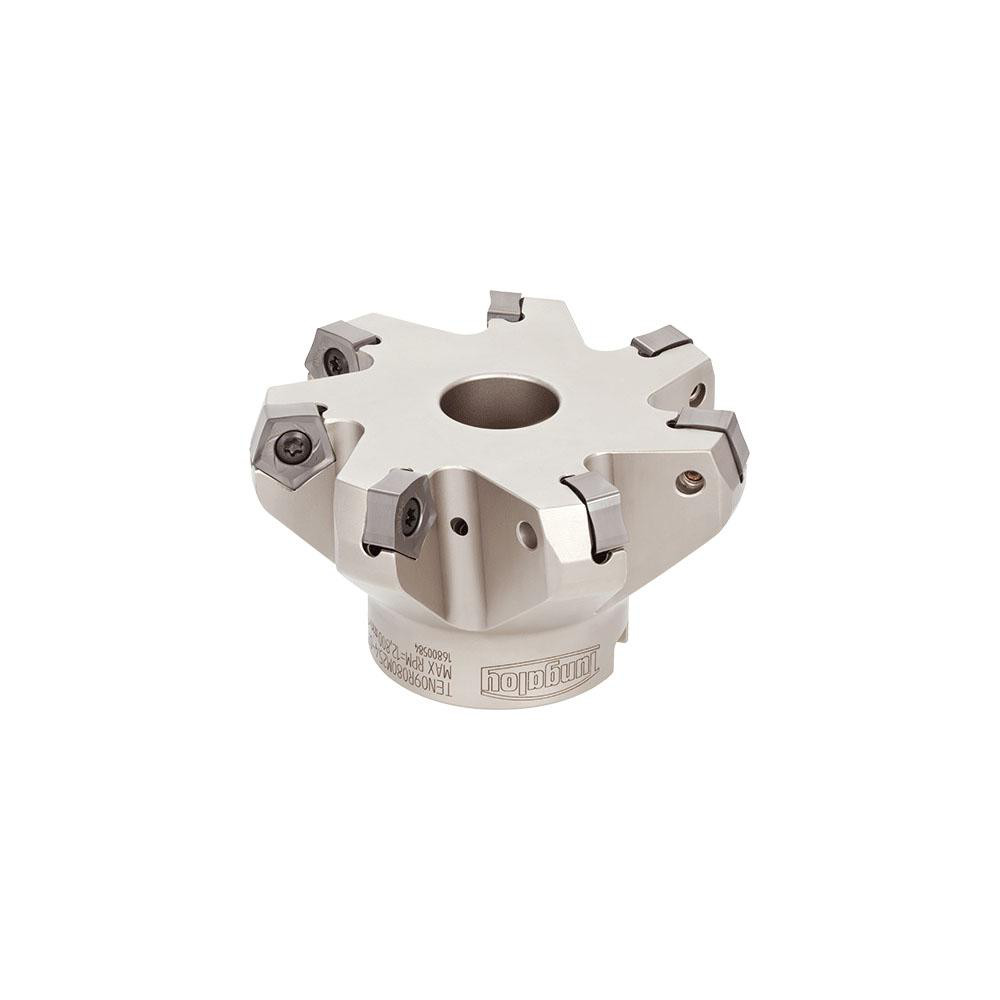

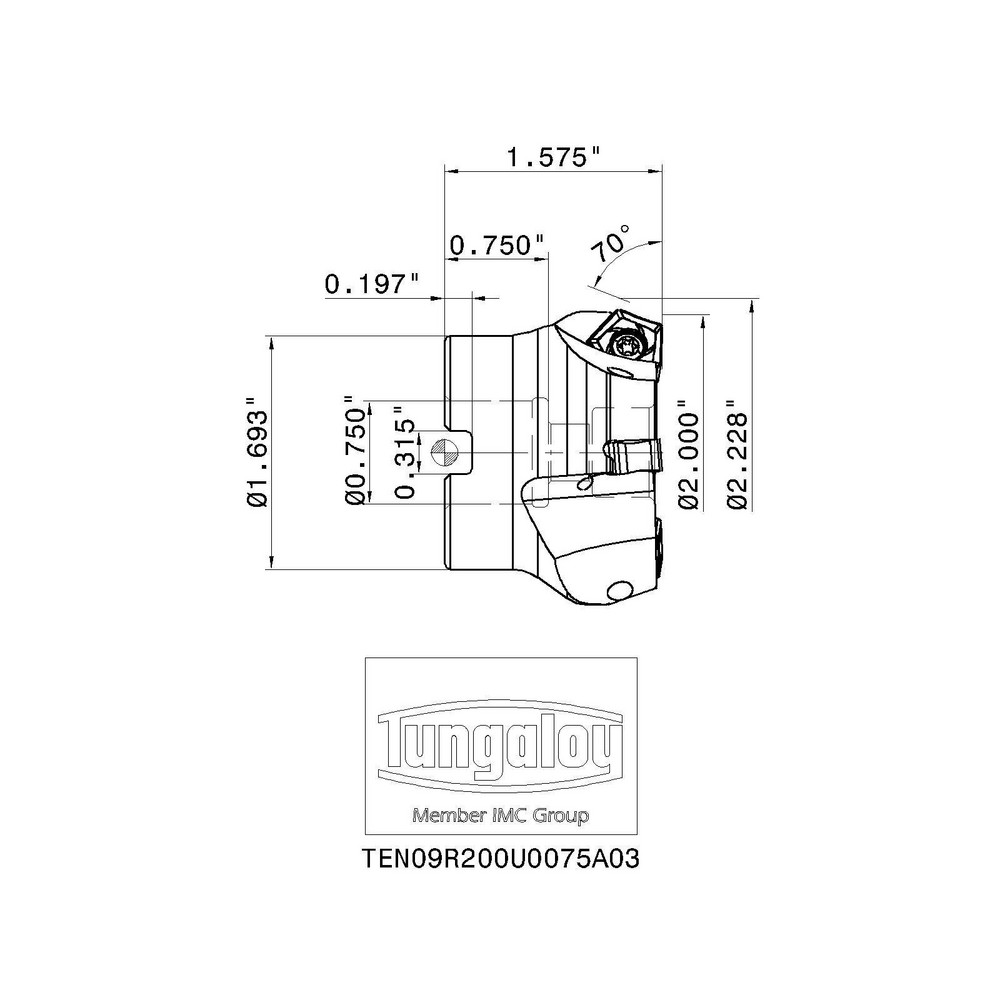

Takes 3 Inserts, 70° Lead Angle, 1.575" High, PN.U 0905.. Insert Style, Through Coolant, Series Dopent
| Minimum Cutting Diameter (Decimal Inch) | 2.0000 |
|---|---|
| Minimum Cutting Diameter (Inch) | 2 |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2520 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | PN U0905 |
| Cutter Style | TEN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 70 |
| Rake | Negative |
| Series | Dopent |
| Overall Height (Decimal Inch) | 1.5750 |
| Keyway Width (Decimal Inch) | 0.3150 |
| Hub Diameter (Decimal Inch) | 1.6930 |
| Standards | ISO |
| Complete Insert Compatibility | PNCU0905GNEN-ML; PNCU0905GNEN-MJ; PNCU0905GNER-MJ; PNCU0905GNFR-AJ; PNMU0905GNEN-MJ; PNCU0905GNER-W |
| UNSPSC Code | 27112803 |
| Keyway Depth (Decimal Inch) | 0.1970 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 45873478 |
