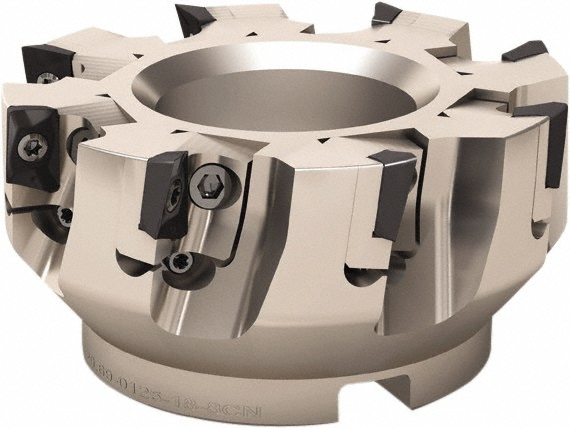

Takes 12 Inserts, 45° Lead Angle, 63mm High, ON.U .., OWMT .., SN.U .. Insert Style, Through Coolant, Series DoOcto
| Minimum Cutting Diameter (mm) | 197.30 |
|---|---|
| Maximum Cutting Diameter (mm) | 200.00 |
| Maximum Depth of Cut (mm) | 7.50 |
| Arbor Hole Diameter (mm) | 60.00 |
| Compatible Insert Size Code | ON.U; SN.U; OWMT |
| Cutter Style | TAN |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 45 |
| Rake | Positive (Radial); Negative (Axial) |
| Series | DoOcto |
| Overall Height (Decimal Inch) | 63.00 |
| Keyway Width (mm) | 25.70 |
| Hub Diameter (mm) | 135.00 |
| Standards | ISO |
| Keyway Depth (mm) | 14.00 |
| Complete Insert Compatibility | ONHU0705ANTN-ML; SNMU1706ANTR-ML; ONHU0705ANPN-MJ; OWMT0807AAER-ML; SNMU1706ANPR-MJ; ONMU0705ANPN-MJ; ONMU0705ANPN-ML; ONHU0705ANPR-W; OWMT0807ZNER-HJ; SNHU1706ANPR-MJ; SNHU1706ANTR-ML; SNHU1706ANFN-W |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 12 |
| Country of Origin | Japan |
| MSC Number | MSC# 47598032 |
