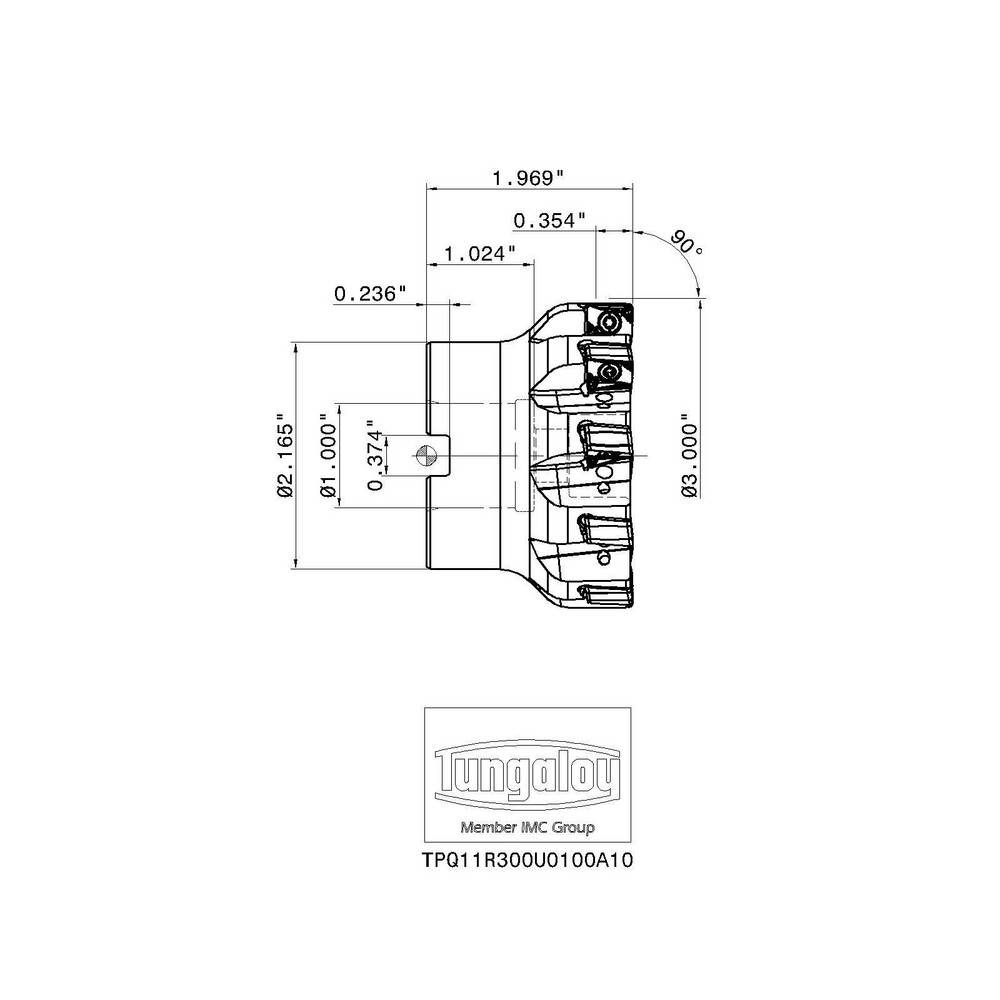

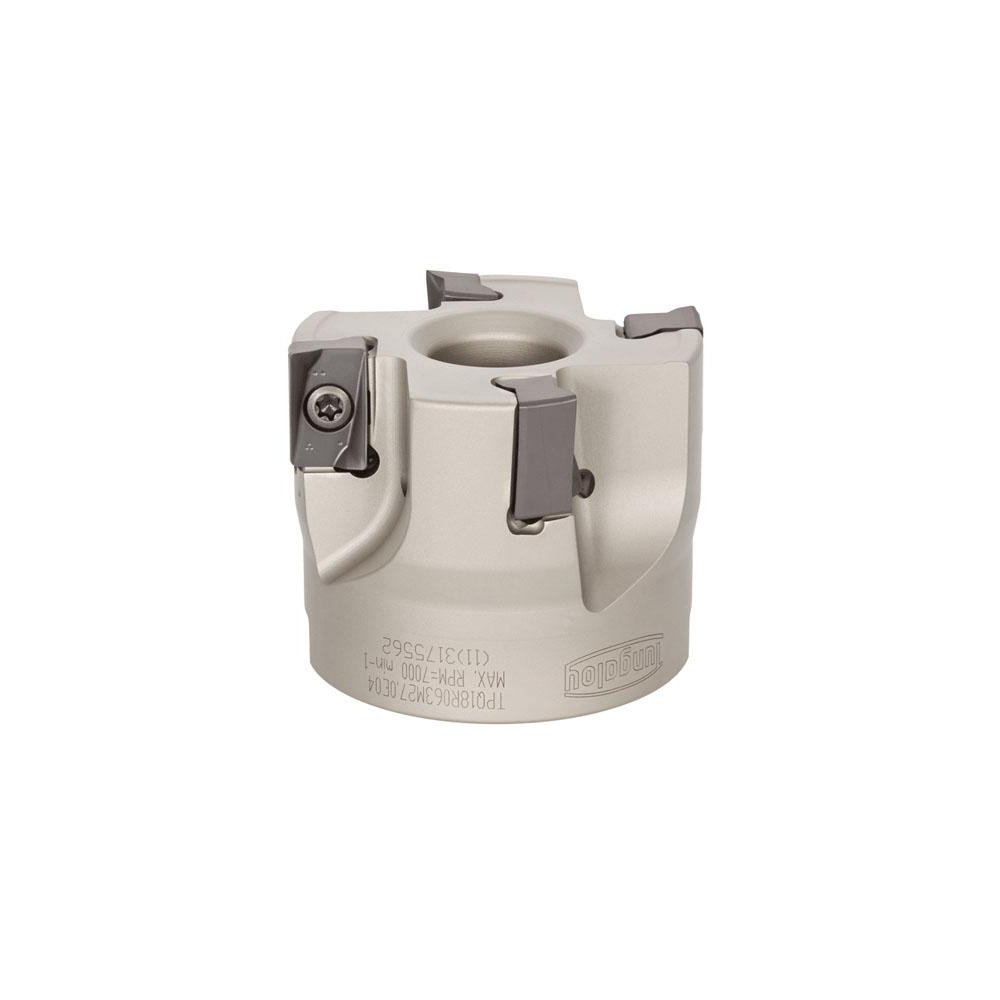

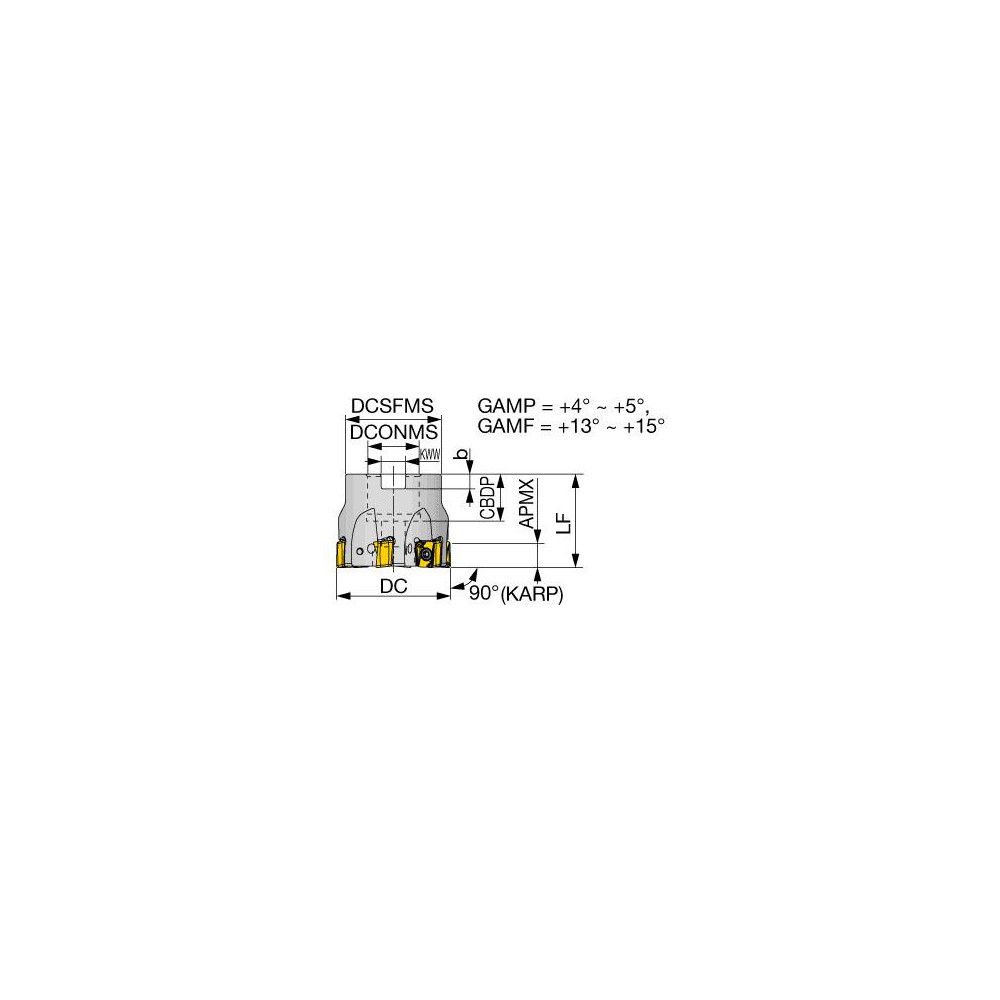

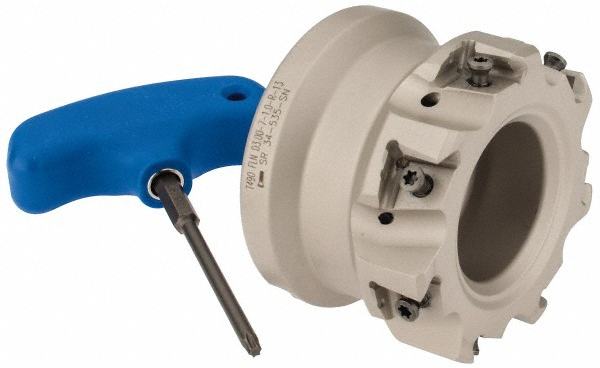

Takes 10 Inserts, 90° Lead Angle, 1.969" High, LQMU 1107.. Insert Style, Through Coolant, Series DoRec
| Maximum Cutting Diameter (Inch) | 3 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | LQMU 1107 |
| Cutter Style | TPQ |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Rake | Positive |
| Series | Dorec |
| Overall Height (Decimal Inch) | 1.9690 |
| Keyway Width (Decimal Inch) | 0.383 |
| Hub Diameter (Decimal Inch) | 2.1650 |
| Standards | ISO |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 10 |
| Number Of Flutes | 10 |
| Country of Origin | Japan |
| MSC Number | MSC# 47631023 |
