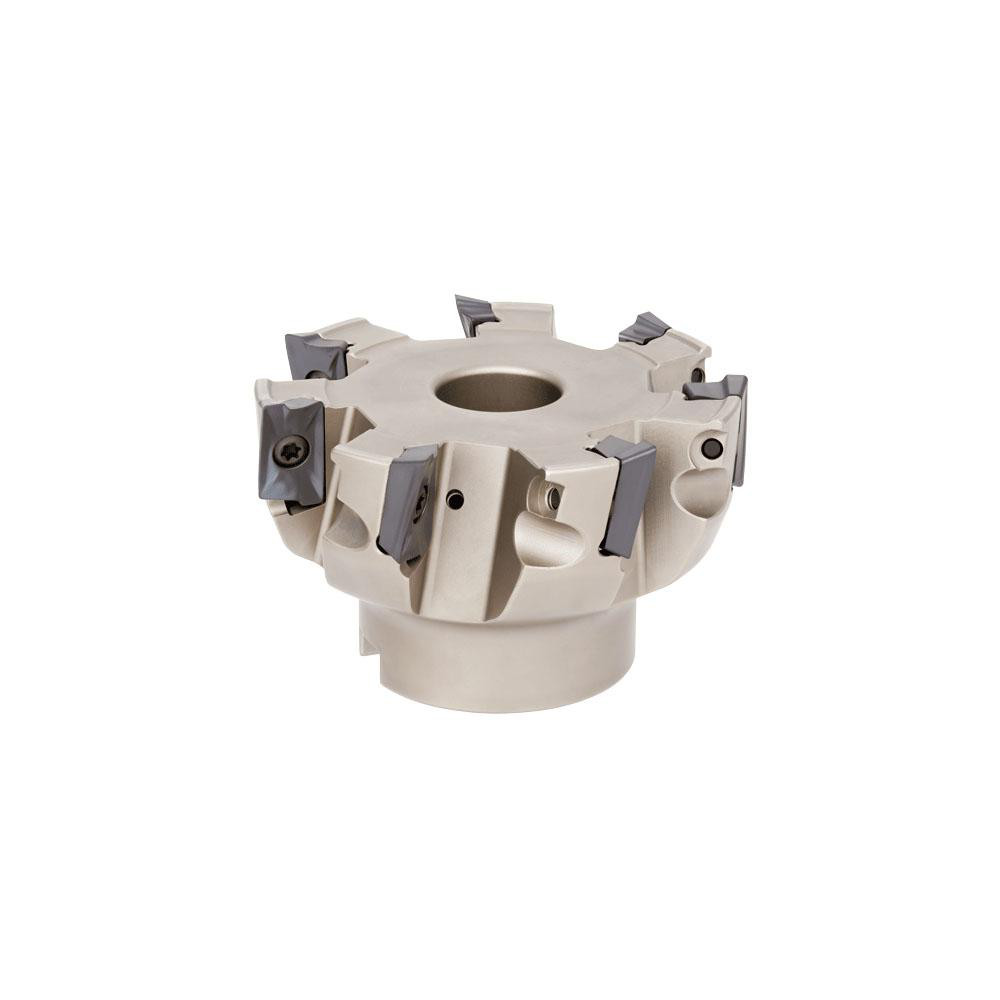

Takes 7 Inserts, 90° Lead Angle, 1-3/4" High, AO.T1805... Insert Style, Through Coolant, Series TungRec
| Maximum Cutting Diameter (Inch) | 3 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 3.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6570 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | AO T1805 |
| Cutter Style | TPO18 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | TungRec |
| Overall Height (Decimal Inch) | 1.7500 |
| Keyway Width (Decimal Inch) | 0.3740 |
| Standards | ISO |
| Complete Insert Compatibility | AOGT180504PDFR-AJ; AOMT180532PDPR-MJ; AOMT180524PDPR-MJ; AOGT180508PDFR-AJ; AOMT180508PDPR-MJ; AOMT180516PDPR-MJ |
| UNSPSC Code | 27112803 |
| Keyway Depth (Decimal Inch) | 0.2360 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 7 |
| Number Of Flutes | 7 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 47614961 |
