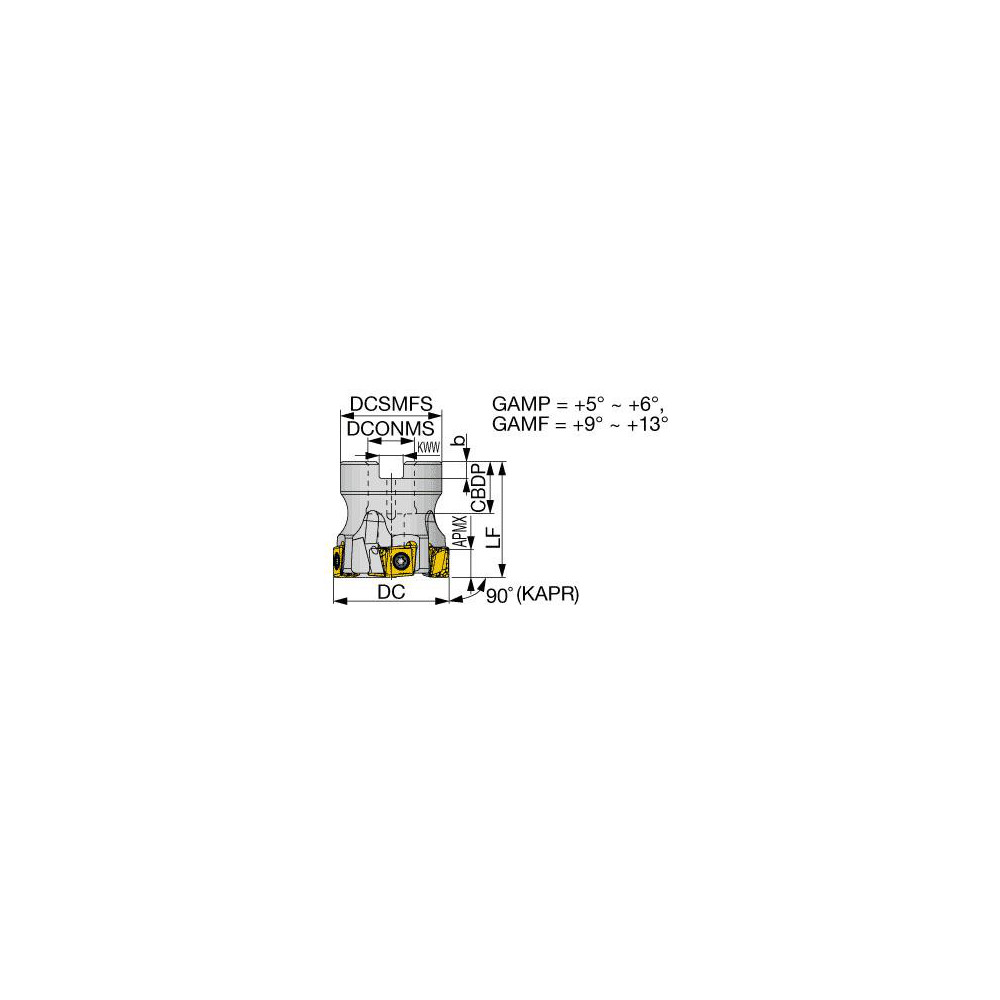

Takes 6 Inserts, 90° Lead Angle, 1.969" High, LN.. 16.. Insert Style, Through Coolant, Series TecMill
| Maximum Cutting Diameter (Inch) | 4 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | LN 16 |
| Cutter Style | TPM16 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | TecMill |
| Overall Height (Decimal Inch) | 1.9690 |
| Keyway Width (Decimal Inch) | 0.6300 |
| Hub Diameter (Decimal Inch) | 3.0710 |
| Standards | ISO |
| Complete Insert Compatibility | LMMU1609... |
| UNSPSC Code | 27112803 |
| Keyway Depth (Decimal Inch) | 0.3540 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 47630686 |
