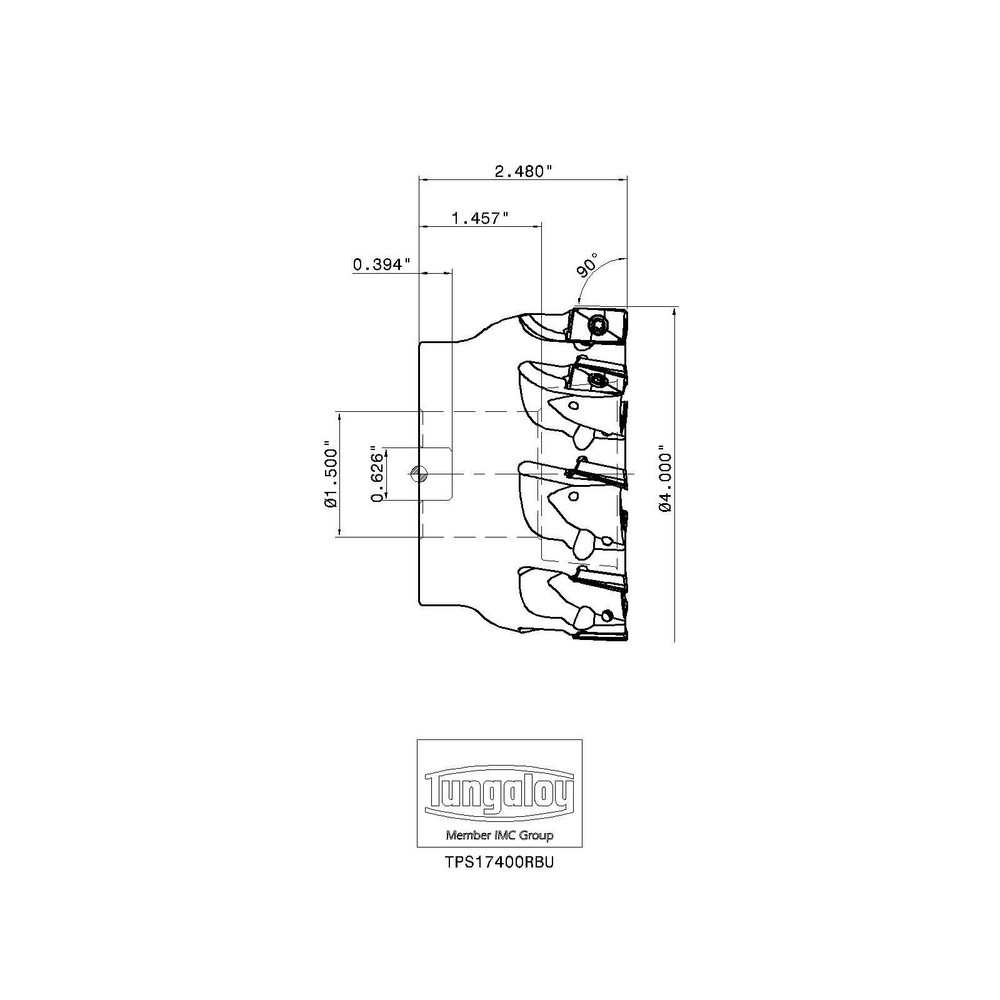

Takes 9 Inserts, 90° Lead Angle, 2.48" High, AS.T 1705.. Insert Style, Through Coolant, Series TungMill
| Maximum Cutting Diameter (Inch) | 4 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | AS T1705 |
| Cutter Style | TPS |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | Tungmill |
| Overall Height (Decimal Inch) | 2.4800 |
| Hub Diameter (Decimal Inch) | 3.1500 |
| Standards | ISO |
| Complete Insert Compatibility | ASMT 1705..; ASGT 1705.. |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 9 |
| Number Of Flutes | 9 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 47669023 |
