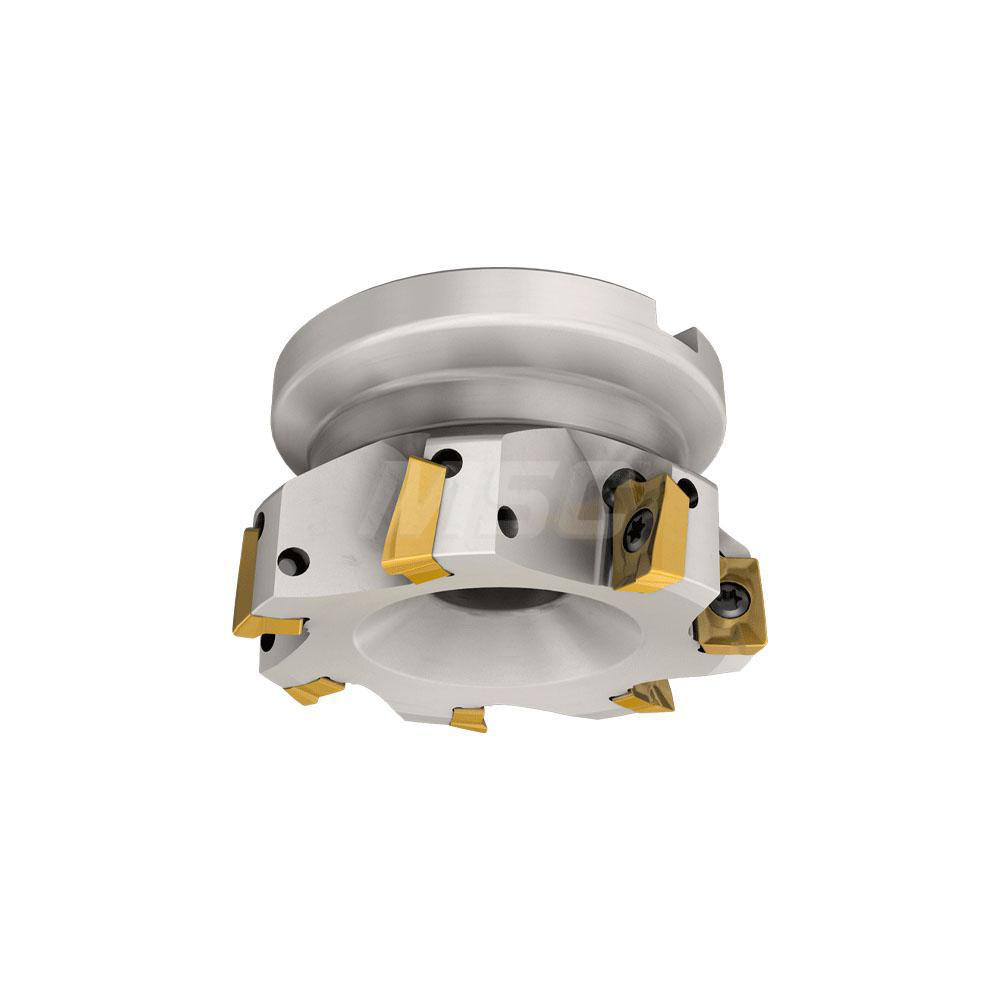

Takes 6 Inserts, 86° Lead Angle, 1.378" High, SEG.12X4 Insert Style, Through Coolant

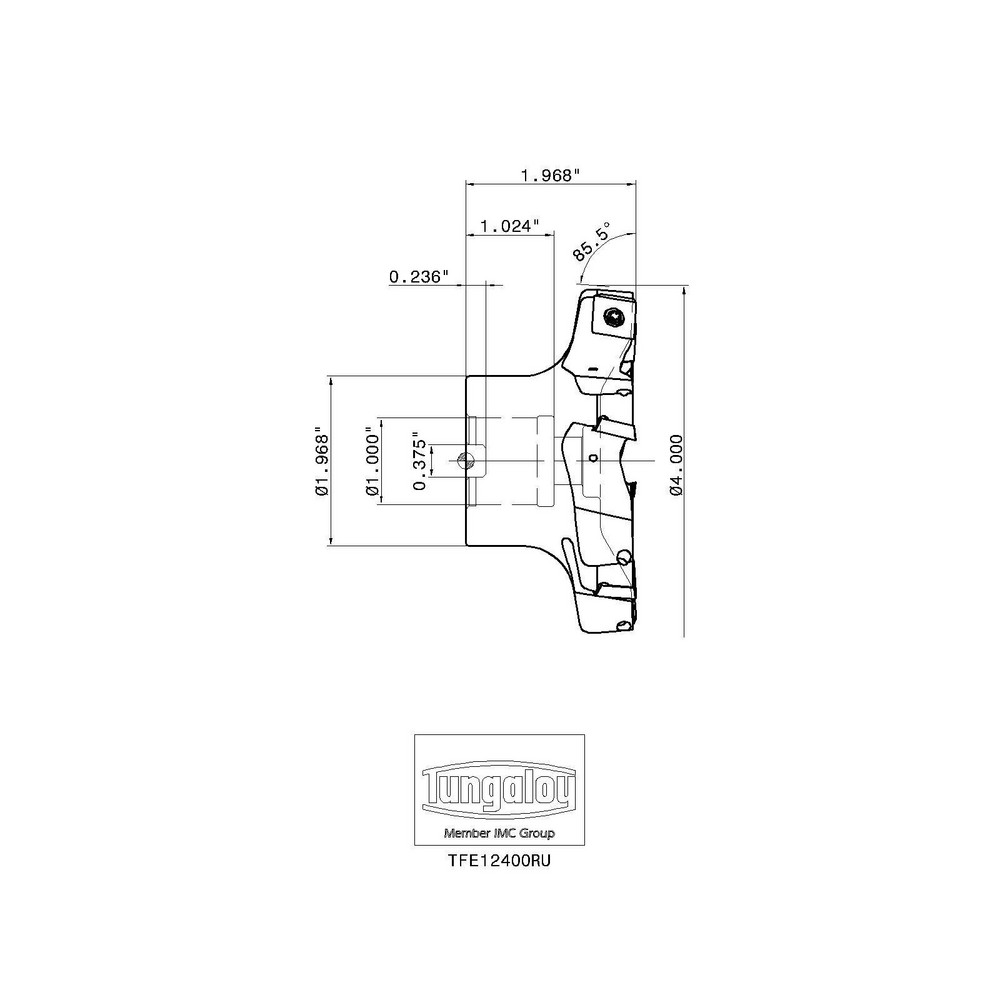

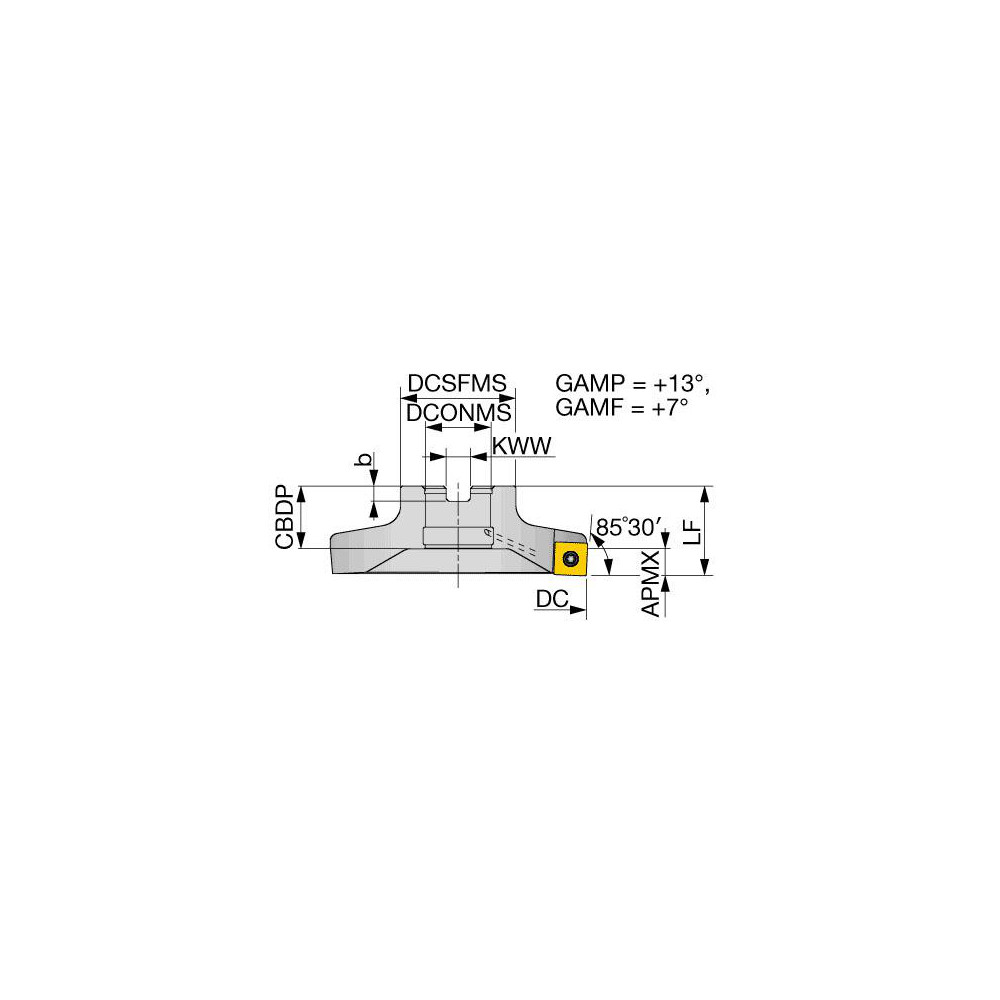

| Maximum Cutting Diameter (Inch) | 4 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | SEG 12X4 |
| Cutter Style | TFE |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 86 |
| Series | TFE |
| Overall Height (Decimal Inch) | 1.3780 |
| Keyway Width (Decimal Inch) | 0.3740 |
| Hub Diameter (Decimal Inch) | 1.9680 |
| Standards | ISO |
| Complete Insert Compatibility | SEGW12X4ZEPR; SEGW12X4ZEFR-WD; SEGW12X4ZEFR-BD; SEGW12X4ZEFR; SEGW12X4ZEFR-D; SEGT12X4ZEFR-AJ |
| UNSPSC Code | 27112803 |
| Keyway Depth (Decimal Inch) | 0.2360 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 47646484 |
