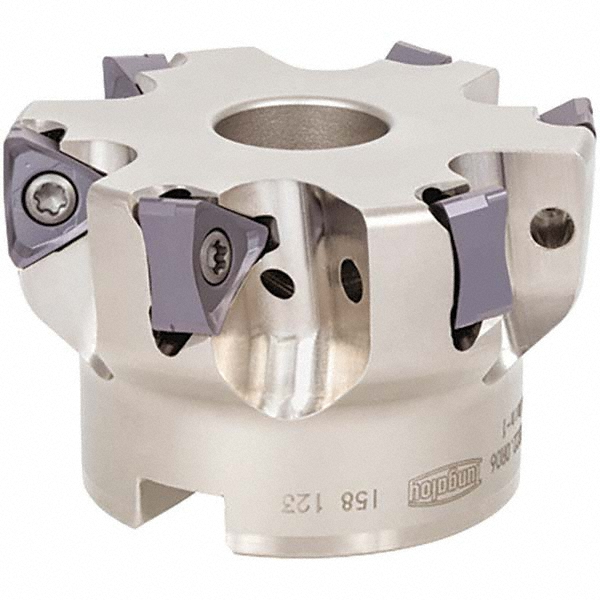

Takes 12 Inserts, 90° Lead Angle, 2.48" High, TN.U 12.. Insert Style, Through Coolant, Series DoForceTri
| Maximum Cutting Diameter (Inch) | 5 |
|---|---|
| Maximum Cutting Diameter (Decimal Inch) | 5.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4330 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Compatible Insert Size Code | TN U12 |
| Cutter Style | TPTN |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Rake | Positive |
| Series | DoForceTri |
| Overall Height (Decimal Inch) | 2.4800 |
| Hub Diameter (mm) | 3.15 |
| Hub Diameter (Decimal Inch) | 3.1500 |
| Standards | ISO |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 12 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 47631114 |
