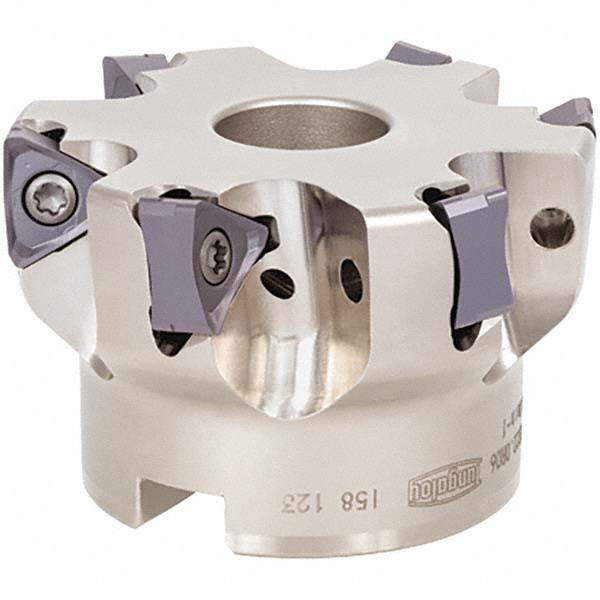

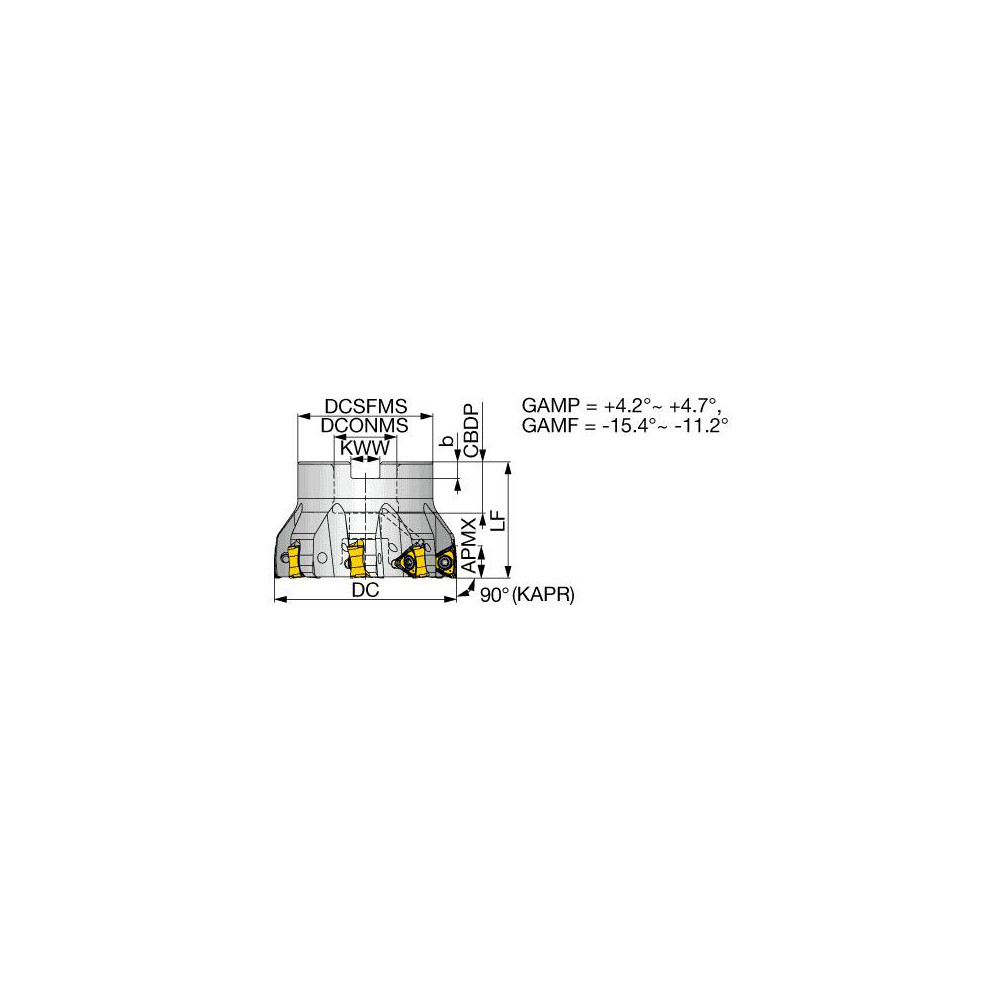

Takes 5 Inserts, 90° Lead Angle, 40mm High, TN.U 12.. Insert Style, Through Coolant, Series DoForceTri
| Maximum Cutting Diameter (mm) | 50.00 |
|---|---|
| Maximum Depth of Cut (mm) | 11.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | TN U12 |
| Cutter Style | TPTN |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Rake | Positive |
| Series | DoForceTri |
| Overall Height (Decimal Inch) | 40.00 |
| Hub Diameter (mm) | 47.00 |
| Standards | ISO |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 5 |
| Number Of Flutes | 5 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 47631197 |
