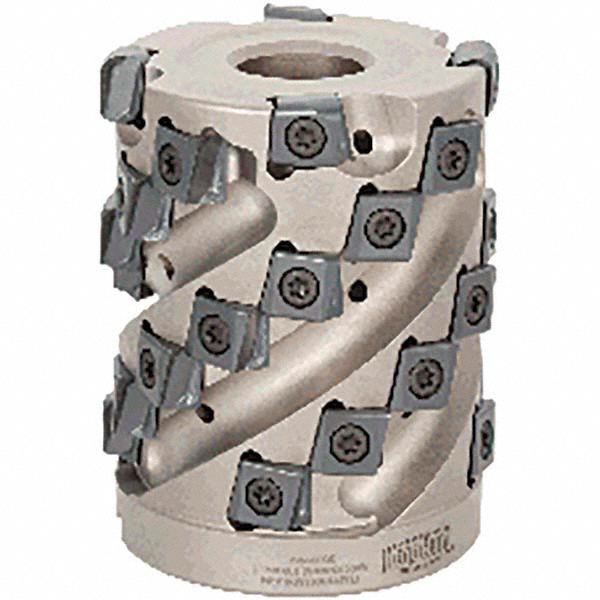

Takes 21 Inserts, 90° Lead Angle, 70mm High, LMMU 1107.. Insert Style, Through Coolant, Series TecMill
| Maximum Cutting Diameter (mm) | 50.00 |
|---|---|
| Maximum Depth of Cut (mm) | 58.50 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | LMMU 1107 |
| Cutter Style | TLM |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Series | TecMill |
| Overall Height (Decimal Inch) | 70.00 |
| Hub Diameter (mm) | 47.00 |
| Standards | ISO |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 21 |
| Number Of Flutes | 3 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 47631148 |
