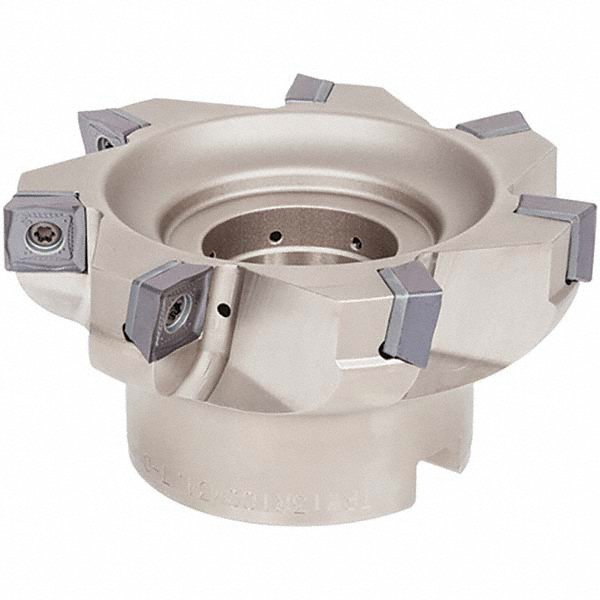

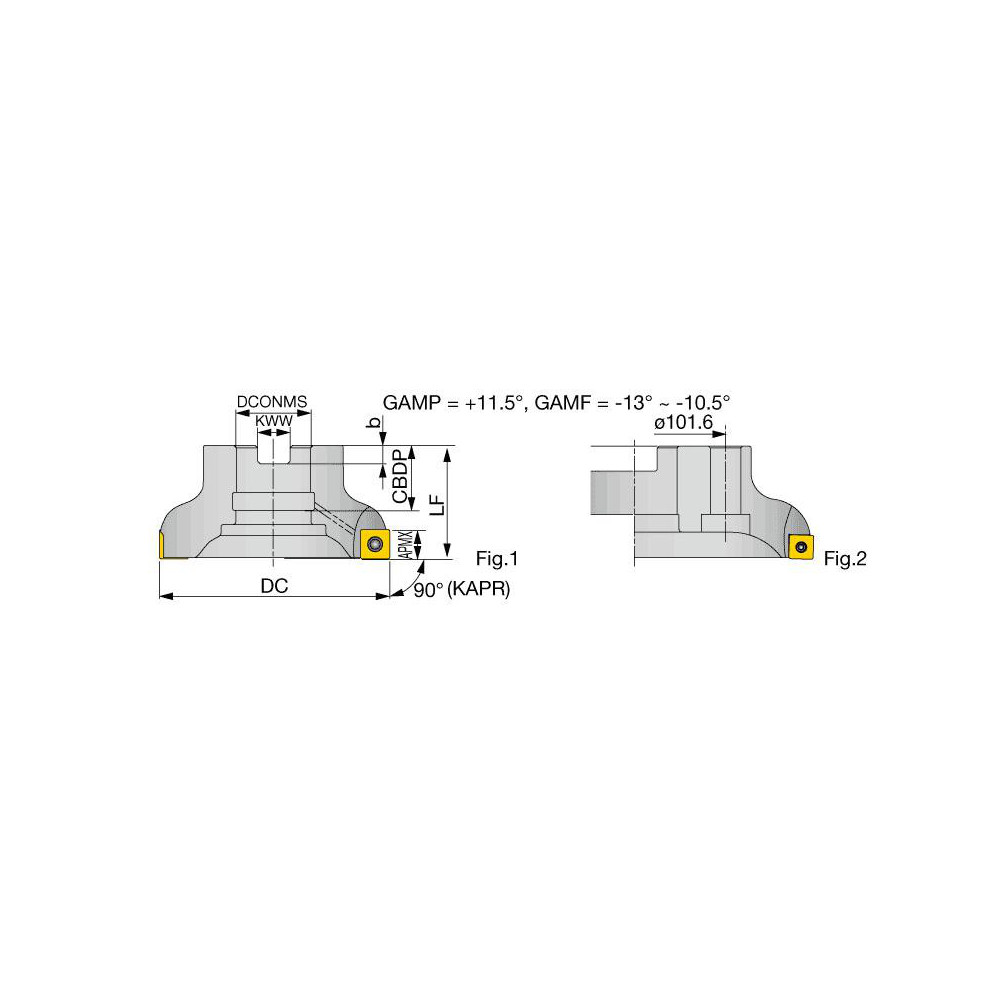

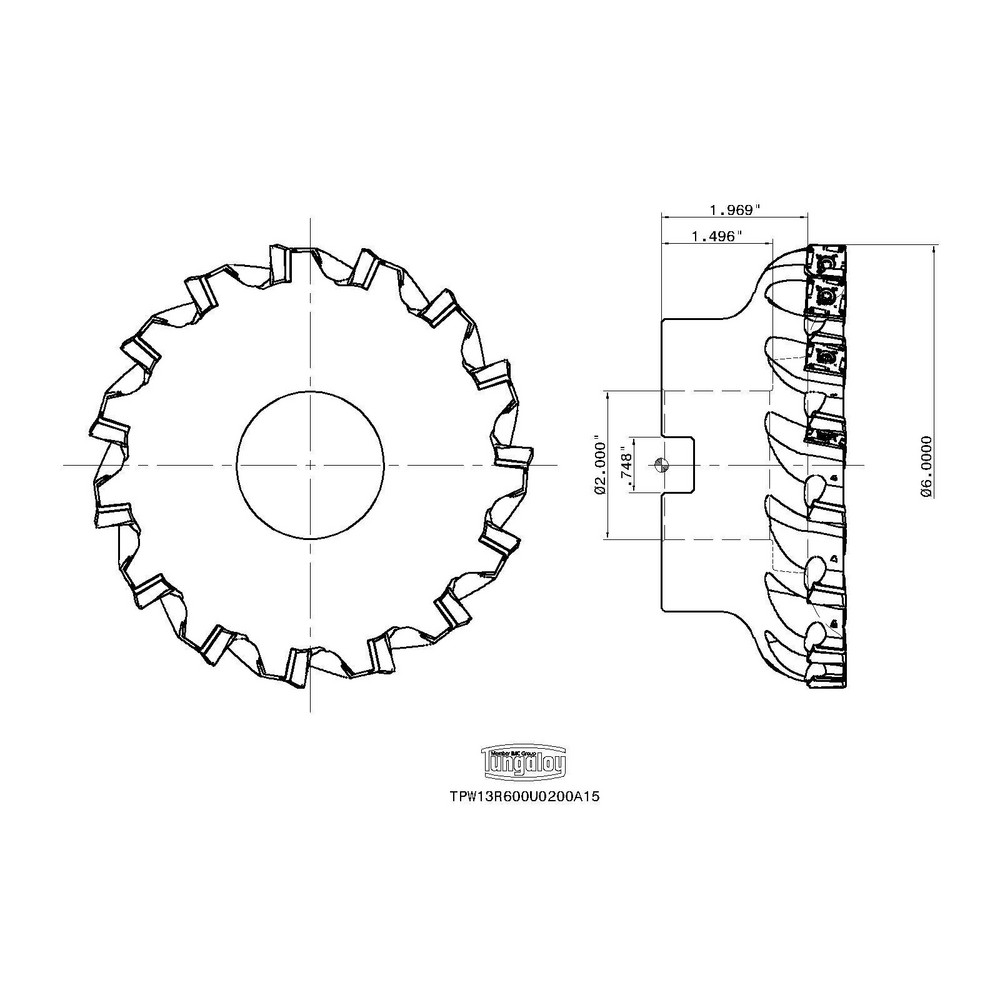

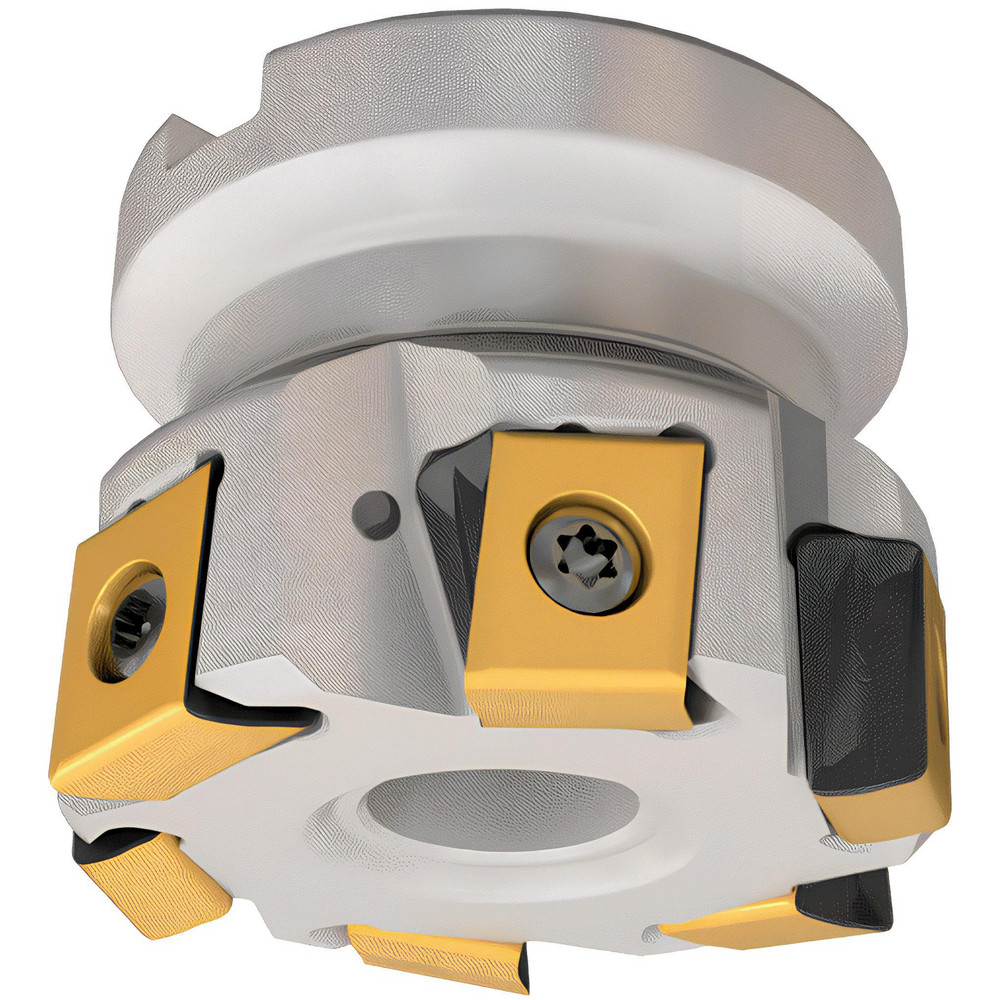

Takes 15 Inserts, 90° Lead Angle, 2.48" High, SW.T 1304 Insert Style, Through Coolant, Series TungMill
| Maximum Cutting Diameter (Decimal Inch) | 6.0000 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Compatible Insert Size Code | SW.T 1304 |
| Cutter Style | TPW13 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Rake | Positive (Axial); Negative (Radial) |
| Series | Tungmill |
| Overall Height (Decimal Inch) | 2.4800 |
| Keyway Width (Decimal Inch) | 0.7480 |
| Standards | ISO |
| Complete Insert Compatibility | SWMT1304PDER-ML; SWGT1304PDFR-AJ; SWMT1304PDPR-MS; SWGT1304PDPR-MJ; SWMT1304PDPR-MJ |
| UNSPSC Code | 27112803 |
| Keyway Depth (Decimal Inch) | 0.4330 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 15 |
| Number Of Flutes | 15 |
| Country of Origin | Japan |
| MSC Number | MSC# 47676986 |
