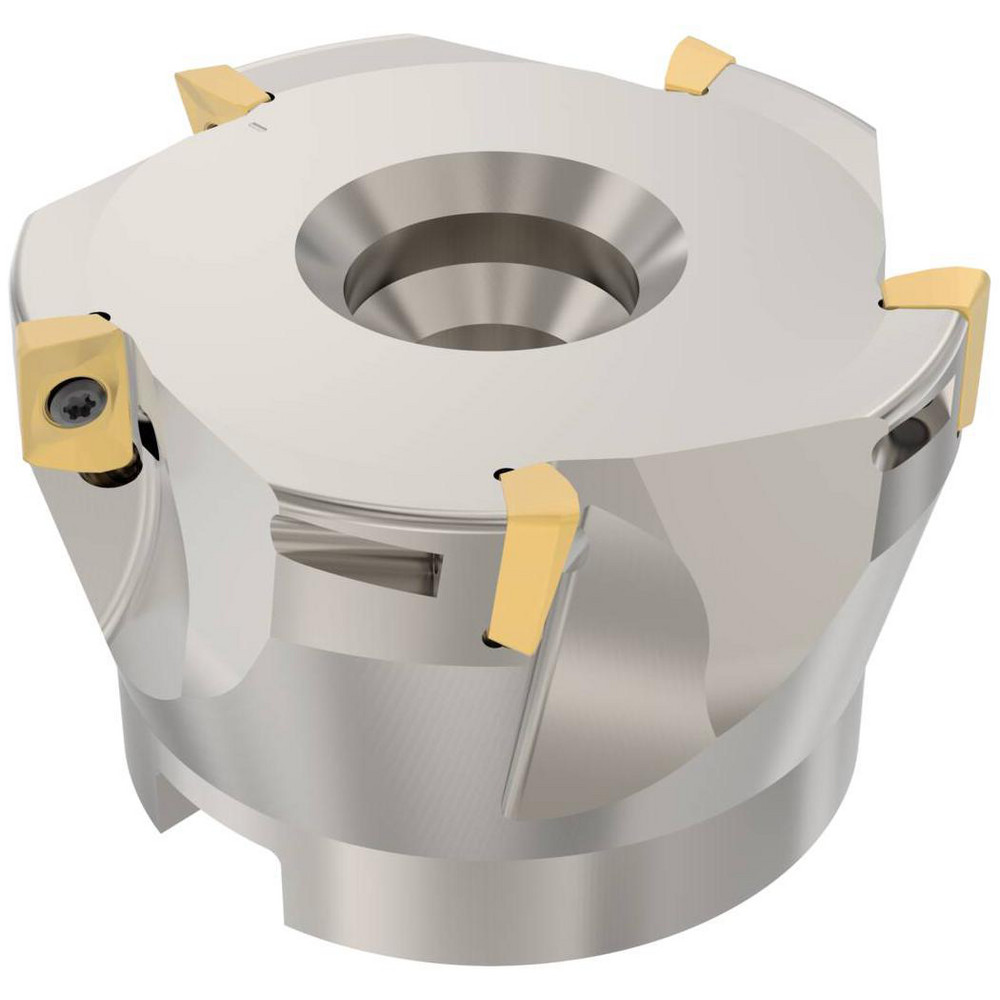

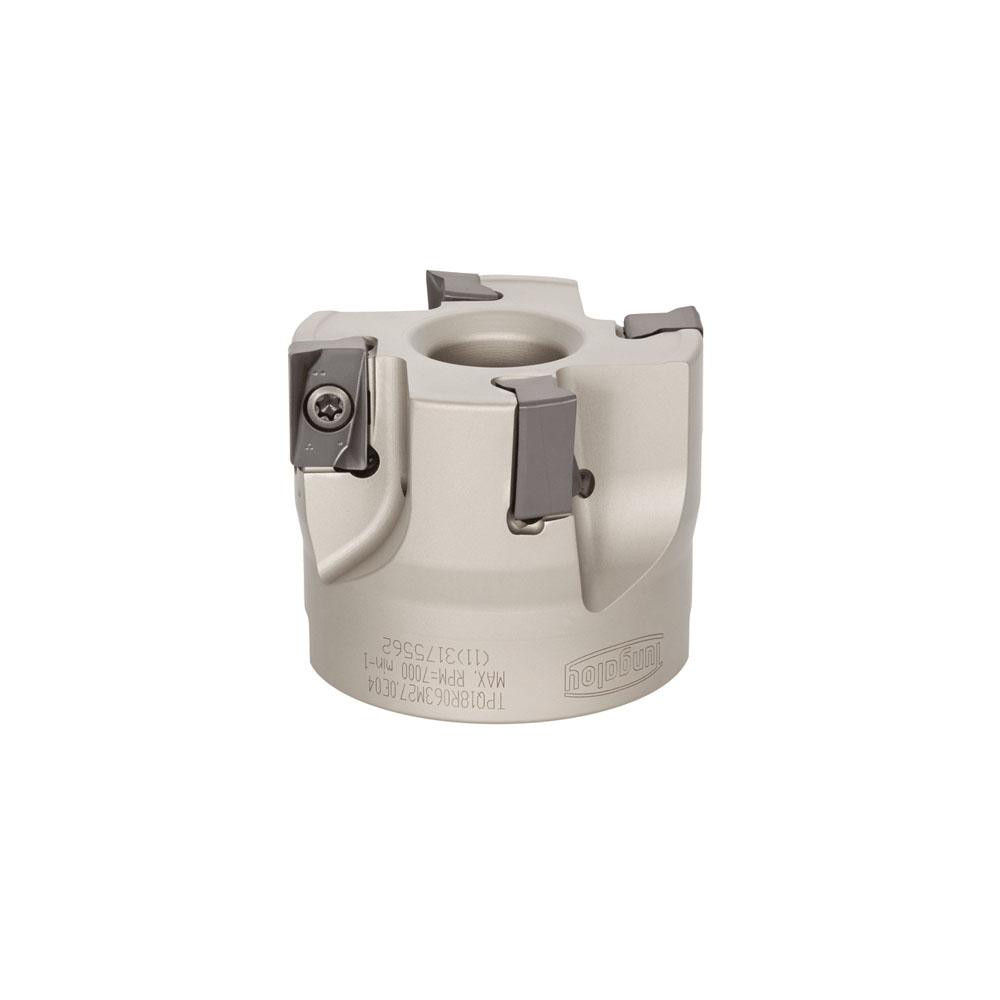

Takes 7 Inserts, 90° Lead Angle, 40mm High, LQMU 1107.. Insert Style, Through Coolant, Series DoRec
| Maximum Cutting Diameter (mm) | 63.00 |
|---|---|
| Maximum Depth of Cut (mm) | 9.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | LQMU 1107 |
| Cutter Style | TPQ |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Rake | Positive |
| Series | Dorec |
| Overall Height (Decimal Inch) | 40.00 |
| Keyway Width (mm) | 10.40 |
| Hub Diameter (mm) | 47.00 |
| Standards | ISO |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 7 |
| Number Of Flutes | 7 |
| Country of Origin | Japan |
| MSC Number | MSC# 47631064 |
