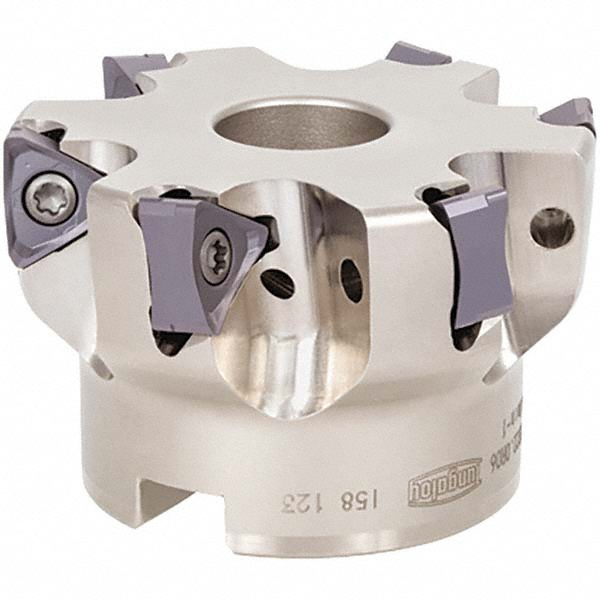

Takes 8 Inserts, 90° Lead Angle, 50mm High, TN.U 12.. Insert Style, Through Coolant
| Maximum Cutting Diameter (mm) | 80.00 |
|---|---|
| Maximum Depth of Cut (mm) | 11.00 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Compatible Insert Size Code | TN U12 |
| Cutter Style | TPTN |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 90 |
| Rake | Positive |
| Series | DoForceTri |
| Overall Height (Decimal Inch) | 50.00 |
| Hub Diameter (mm) | 58.00 |
| Standards | ISO |
| UNSPSC Code | 27112803 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 8 |
| Number Of Flutes | 8 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 47631239 |
