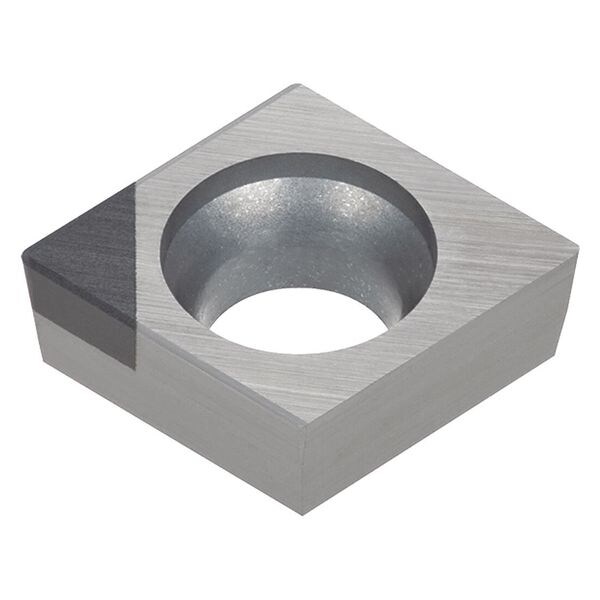

Diamond Turning Insert, Diamond, 11/64 in, CCGW, .5, CBN
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCGW |
| Inscribed Circle | 11/64 in |
| Insert Size | 5.52.20.5 |
| Chip-Breaker | Yes |
| Grade | BX310 |
| Corner Radius | .5 |
| Insert Material | CBN |
| Insert Application | Finishing |
| Rake | Positive |
| ISO Number | CCGW 5.52.20.5 |
| Hardened (H) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Coating | Uncoated |
| Mounting Style | Screw-On |
| Cutting Direction | Neutral |
| Relief Angle | 7 Degrees |
| Stainless (M) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Workpiece Compatibility | Hardened (H) |
| Mounting Hole Dia. | 0.091 in |
| Nose Radius | 0.008 in |
| No. of Edges | 1 |
| Steel (P) Compatibility | No |
| Insert Thickness | 0.07 in |
| Included Angle | 80 Degrees |
| Thickness | 1.5 |
| Finish - Machining | Bright |
| Manufacturer Grade | BX310 |
| Cutting Application | Finishing |
| Chip-Breaker Style | Flat Top |
| Primary Material Application ISO Code | H |
| Number of Cutting Edges | 1 |
| Material - Machining | CBN |
| Measurement System | Fractional Inch |
| ANSI Code | 1QP-CCGW 5.52.20.5 BX310 |
| Primary Material Application | Hardened Steel |
| Clearance Angle | 7 deg |
| Depth of Cut | 0.0079 in |
| Shape | Rhombic |
| Cutting Edge Length | 0.075 in |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Material | CBN |
| Application | Finishing |
| Style | CCGW |
| Package Quantity | 1 |
