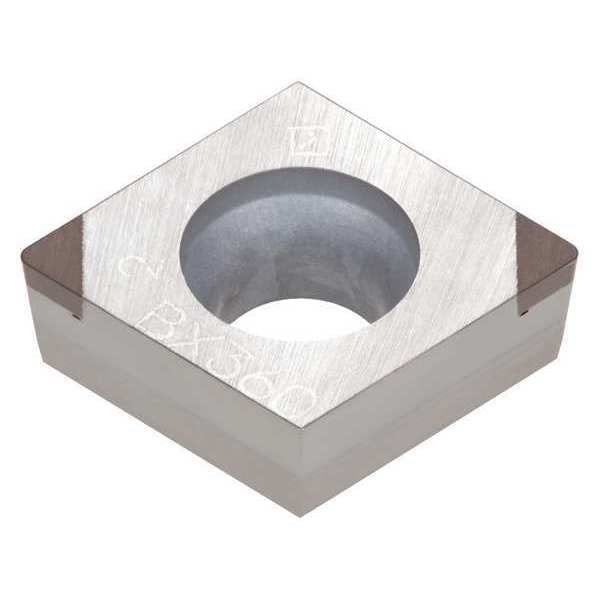

Diamond Turning Insert, Diamond, 3, CCMW, 2, CBN
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCMW |
| Inscribed Circle | 3 |
| Insert Size | 32.52 |
| Chip-Breaker | Yes |
| Grade | BXM20 |
| Corner Radius | 2 |
| Insert Material | CBN |
| Insert Application | Finishing |
| Rake | Positive |
| Coating | PVD |
| Stainless (M) Compatibility | No |
| Relief Angle | 7 Degrees |
| Hardened (H) Compatibility | Yes |
| Mounting Hole Dia. | 0.173 in |
| Workpiece Compatibility | Hardened (H) |
| Super Alloy (S) Compatibility | No |
| Mounting Style | Screw-On |
| Cutting Direction | Neutral |
| Non Ferrous (N) Compatibility | No |
| Cast Iron (K) Compatibility | No |
| Nose Radius | 0.031 in |
| No. of Edges | 2 |
| Steel (P) Compatibility | No |
| Insert Thickness | 0.156 in |
| Clearance Angle | 7 deg |
| Chip-Breaker Style | Flat Top |
| Included Angle | 80 Degrees |
| ANSI Code | 2QP-CCGW 32.52 BXM20 |
| Thickness | 2.5 |
| Material - Machining | CBN |
| Finish - Machining | TiCN |
| Primary Material Application | Hardened Steel |
| Secondary Material Application | Hardened Steel |
| Shape | Rhombic |
| Primary Material Application ISO Code | H |
| Secondary Material Application ISO Code | H |
| Measurement System | Fractional Inch |
| Depth of Cut | 0.0197 in |
| Number of Cutting Edges | 2 |
| Manufacturer Grade | BXM20 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Cutting Application | Finishing |
| Material | CBN |
| Style | CCGW |
| Application | Finishing |
| Package Quantity | 1 |
