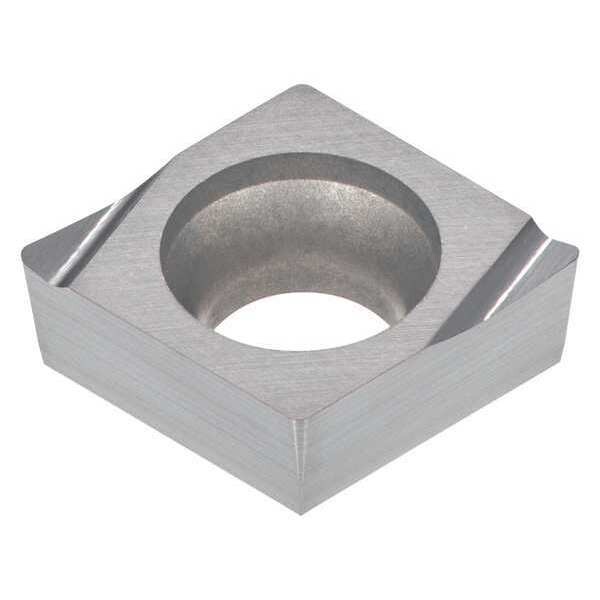

Diamond Turning Insert, Diamond, 3/16 in, CCGT, .5, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CCGT |
| Inscribed Circle | 3/16 in |
| Insert Size | 5.52.20.5 |
| Chip-Breaker | Yes |
| Grade | TH10 |
| Corner Radius | .5 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| Mounting Hole Dia. | 0.091 in |
| Cutting Direction | Left Hand |
| Relief Angle | 7 Degrees |
| No. of Edges | 2 |
| Coating | Uncoated |
| Insert Thickness | 0.07 in |
| Super Alloy (S) Compatibility | No |
| Nose Radius | 0.008 in |
| Cast Iron (K) Compatibility | Yes |
| Mounting Style | Screw-On |
| Stainless (M) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Non Ferrous (N) Compatibility | Yes |
| Hardened (H) Compatibility | No |
| Workpiece Compatibility | Cast Iron (K), Nonferrous (N), Steel (P) |
| Included Angle | 80 Degrees |
| Cutting Application | Finishing |
| Measurement System | Fractional Inch |
| Primary Material Application ISO Code | P, M, K, N |
| Primary Material Application | Brass, Bronze, Copper, Magnesium, Cast Iron, Aluminum, Stainless Steel, Steel |
| Material - Machining | Carbide |
| Clearance Angle | 7 deg |
| Number of Cutting Edges | 2 |
| Standards | ISO 1832/AM1-1998, JIS B4120-1998 |
| Shape | Rhombic |
| Finish - Machining | Bright |
| Thickness | 1.5 |
| Manufacturer Grade | TH10 |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Chip-Breaker Code | W08 |
| ANSI Code | CCGT 5.52.20.5 L-W08 TH10 |
| Material | Carbide |
| Application | Finishing |
| Style | CCGT |
| Package Quantity | 1 |
