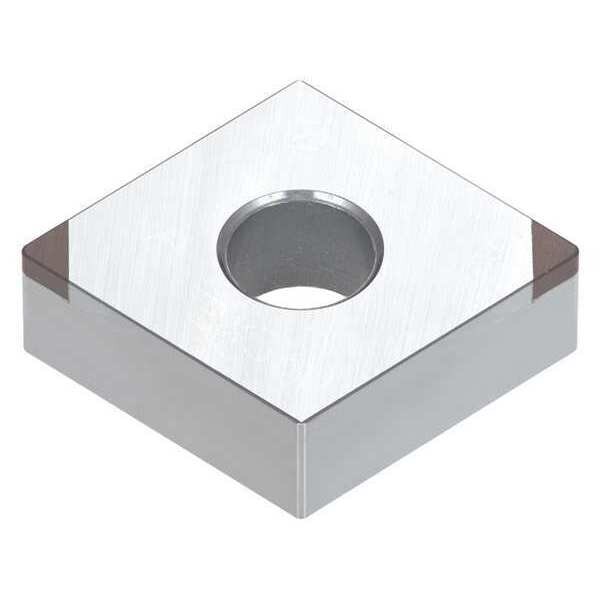

Diamond Turning Insert, Diamond, 4, CNM, 3, CBN
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNM |
| Inscribed Circle | 4 |
| Insert Size | 433 |
| Chip-Breaker | Yes |
| Grade | BX380 |
| Corner Radius | 3 |
| Insert Material | CBN |
| Insert Application | Finishing |
| Rake | Negative |
| Nose Radius | 0.047 in |
| Mounting Hole Dia. | 0.203 in |
| Super Alloy (S) Compatibility | No |
| Cutting Direction | Neutral |
| Mounting Style | Clamp-On |
| Cast Iron (K) Compatibility | No |
| Non Ferrous (N) Compatibility | No |
| Relief Angle | 0 Degrees |
| Hardened (H) Compatibility | Yes |
| Workpiece Compatibility | Hardened (H) |
| Stainless (M) Compatibility | No |
| Steel (P) Compatibility | No |
| No. of Edges | 2 |
| Insert Thickness | 0.187 in |
| Coating | Uncoated |
| Chip-Breaker Style | Flat Top |
| ANSI Code | 2QP-CNGA 433 BX380 |
| Secondary Material Application ISO Code | H |
| Included Angle | 80 Degrees |
| Secondary Material Application | Hardened Steel |
| Primary Material Application | All Materials |
| Insert Holding Type | Straight Hole |
| Cutting Edge Length | 0.094 in |
| Finish - Machining | Bright |
| Manufacturer Grade | BX380 |
| Cutting Application | Finishing |
| Depth of Cut | 0.0197 in |
| Thickness | 3 |
| Material - Machining | CBN |
| Clearance Angle | 0 deg |
| Number of Cutting Edges | 2 |
| Measurement System | Fractional Inch |
| Shape | Rhombic |
| Material | CBN |
| Style | CNGA |
| Application | Finishing |
| Package Quantity | 1 |
