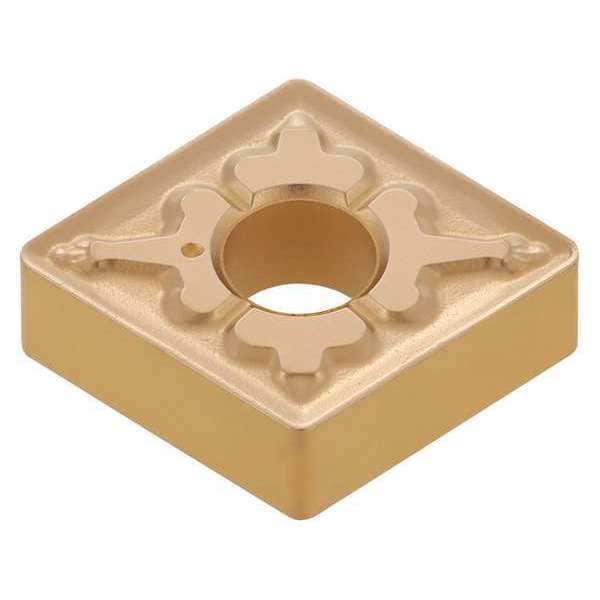

Diamond Turning Insert, Diamond, 4, CNMG, 1, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 4 |
| Insert Size | 431 |
| Chip-Breaker | Yes |
| Grade | T9125 |
| Corner Radius | 1 |
| Insert Material | Carbide |
| Insert Application | Medium |
| Rake | Negative |
| Mounting Hole Dia. | 0.203 in |
| Relief Angle | 0 Degrees |
| Steel (P) Compatibility | Yes |
| Super Alloy (S) Compatibility | No |
| Mounting Style | Clamp-On |
| Nose Radius | 0.016 in |
| No. of Edges | 4 |
| Cutting Direction | Neutral |
| Hardened (H) Compatibility | No |
| Stainless (M) Compatibility | No |
| Coating | CVD |
| Insert Thickness | 0.187 in |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Cast Iron (K) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Number of Cutting Edges | 4 |
| Secondary Material Application ISO Code | P |
| Clearance Angle | 0 deg |
| Standards | ISO 26623-1 |
| Primary Material Application | All Materials |
| Cutting Application | Medium Cutting |
| Thickness | 3 |
| Chip-Breaker Code | TM |
| Measurement System | Fractional Inch |
| Insert Holding Type | Straight Hole |
| Shape | Rhombic |
| ANSI Code | CNMG 431 TM T9125 |
| Included Angle | 80 Degrees |
| Manufacturer Grade | T9125 |
| Depth of Cut | 0.1969 in |
| Finish - Machining | TiCN+Al2O3+TiN |
| Secondary Material Application | Steel |
| Cutting Edge Length | 0.508 in |
| Material - Machining | Carbide |
| Material | Carbide |
| Application | Medium |
| Style | CNMG |
| Package Quantity | 1 |
