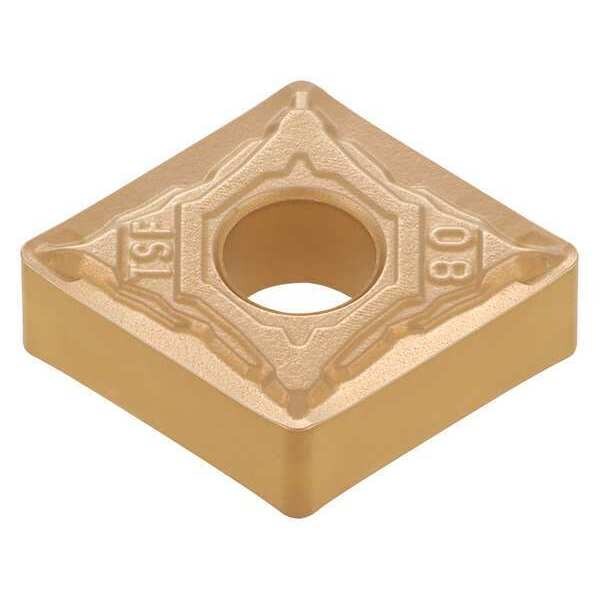

Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | CNMG |
| Inscribed Circle | 4 |
| Insert Size | 433 |
| Chip-Breaker | Yes |
| Grade | T9105 |
| Corner Radius | 3 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Negative |
| Super Alloy (S) Compatibility | No |
| Relief Angle | 0 Degrees |
| Hardened (H) Compatibility | No |
| Mounting Style | Clamp-On |
| Workpiece Compatibility | Cast Iron (K), Steel (P) |
| Cast Iron (K) Compatibility | Yes |
| Cutting Direction | Neutral |
| Steel (P) Compatibility | Yes |
| Mounting Hole Dia. | 0.203 in |
| Stainless (M) Compatibility | No |
| Insert Thickness | 0.187 in |
| No. of Edges | 4 |
| Coating | CVD |
| Non Ferrous (N) Compatibility | No |
| Nose Radius | 0.047 in |
| Secondary Material Application ISO Code | K |
| Clearance Angle | 0 deg |
| Cutting Edge Length | 0.508 in |
| Number of Cutting Edges | 4 |
| Cutting Application | Finishing |
| Depth of Cut | 0.0590 in |
| Chip-Breaker Code | TSF |
| Material - Machining | Carbide |
| Included Angle | 80 Degrees |
| Standards | ISO 26623-1 |
| Insert Holding Type | Straight Hole |
| Primary Material Application | Cast Iron, Steel |
| Finish - Machining | TiCN+Al2O3+TiN |
| Secondary Material Application | Cast Iron |
| Measurement System | Fractional Inch |
| Manufacturer Grade | T9105 |
| Thickness | 3 |
| Primary Material Application ISO Code | K |
| ANSI Code | CNMG 433 TSF T9105 |
| Shape | Rhombic |
| Material | Carbide |
| Style | CNMG |
| Application | Semi-Finishing |
| Package Quantity | 1 |
