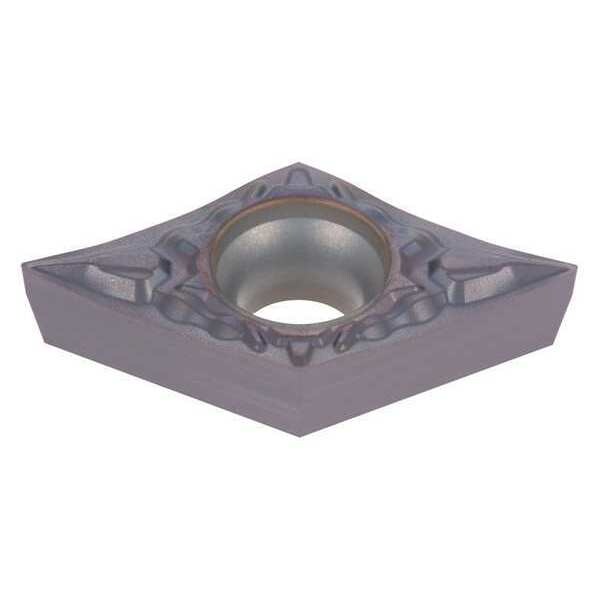

Diamond Turning Insert, Diamond, 5/16 in, DCGT, .5, Carbide
| Item | Diamond Turning Insert |
|---|---|
| Insert Shape | Diamond |
| Insert Style | DCGT |
| Inscribed Circle | 5/16 in |
| Insert Size | 32.50.5 |
| Chip-Breaker | Yes |
| Grade | AH725 |
| Corner Radius | .5 |
| Insert Material | Carbide |
| Insert Application | Finishing |
| Rake | Positive |
| Mounting Style | Screw-On |
| Cutting Direction | Neutral |
| Nose Radius | 0.008 in |
| Cast Iron (K) Compatibility | Yes |
| No. of Edges | 2 |
| Hardened (H) Compatibility | No |
| Mounting Hole Dia. | 0.173 in |
| Super Alloy (S) Compatibility | Yes |
| Non Ferrous (N) Compatibility | No |
| Relief Angle | 7 Degrees |
| Stainless (M) Compatibility | No |
| Steel (P) Compatibility | Yes |
| Coating | PVD |
| Workpiece Compatibility | Cast Iron (K), Steel (P), Super Alloy (S) |
| Insert Thickness | 0.156 in |
| ANSI Code | DCGT 32.50.5 JS AH725 |
| Measurement System | Fractional Inch |
| Number of Cutting Edges | 2 |
| Secondary Material Application | Cast Iron, Stainless Steel, Steel |
| Included Angle | 55 Degrees |
| Primary Material Application | Titanium, Nickel |
| Primary Material Application ISO Code | S |
| Shape | Rhombic |
| Insert Holding Type | 40 Degrees to 60 Degrees Countersink Hole |
| Finish - Machining | TiAlN |
| Thickness | 2.5 |
| Cutting Application | Finishing |
| Secondary Material Application ISO Code | K, P, M |
| Material - Machining | Carbide |
| Manufacturer Grade | AH725 |
| Standards | ISO 1832/AM1-1998, JIS B4120-1998 |
| Clearance Angle | 7 deg |
| Chip-Breaker Code | JS |
| Material | Carbide |
| Application | Finishing |
| Style | DCGT |
| Package Quantity | 1 |
