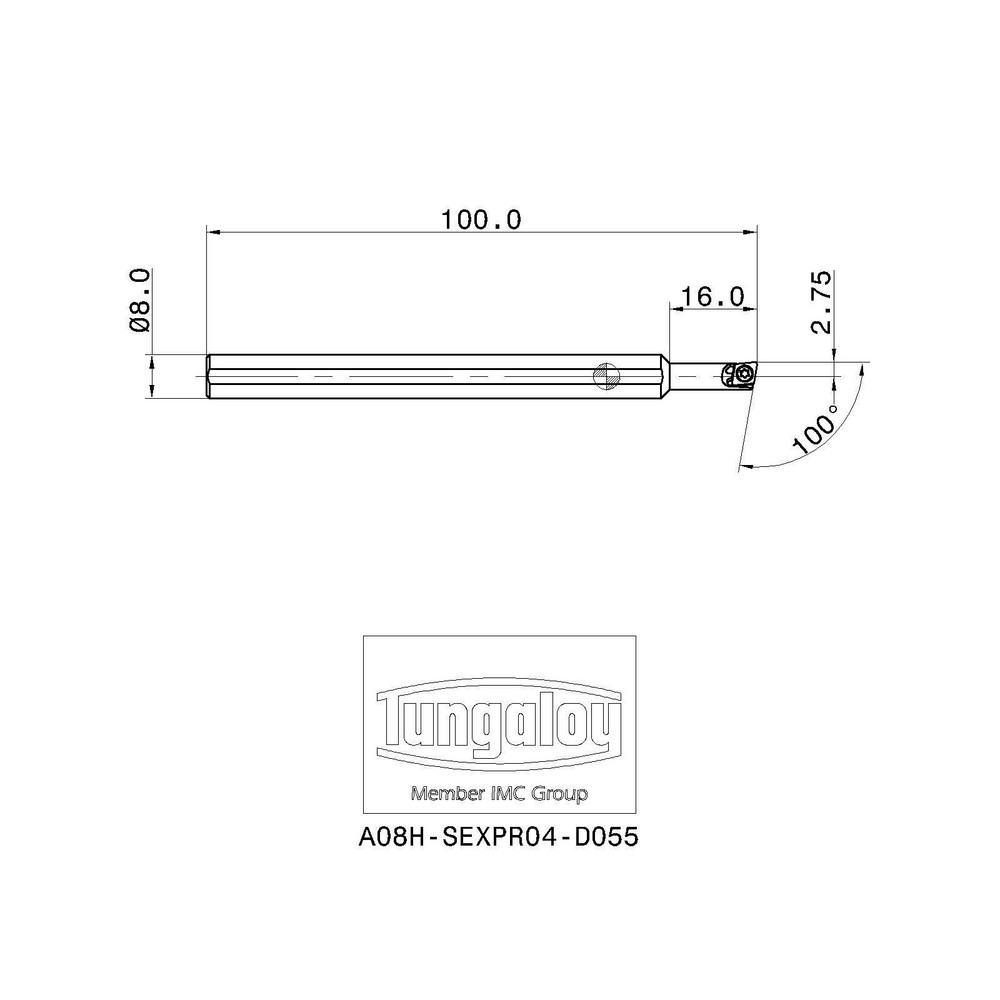

100.00 mm OAL, Screw Clamping
| Minimum Bore Diameter (mm) | 5.50 |
|---|---|
| Maximum Bore Depth (mm) | 16.00 |
| Toolholder Style | SEXPL; SEXPR |
| Tool Material | Steel |
| Shank Diameter (mm) | 8.00 |
| Overall Length (mm) | 100.00 |
| Compatible Insert Size Code | 0401 |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Diamond |
| Rake | Neutral (Axial); Negative (Radial) |
| Lead Angle | 100 |
| Series | StreamJetBar |
| Insert Inscribed Circle (mm) | 3.97 |
| Compatible Insert Thickness (mm) | 1.59 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (mm) | 2.75 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 69445542 |
