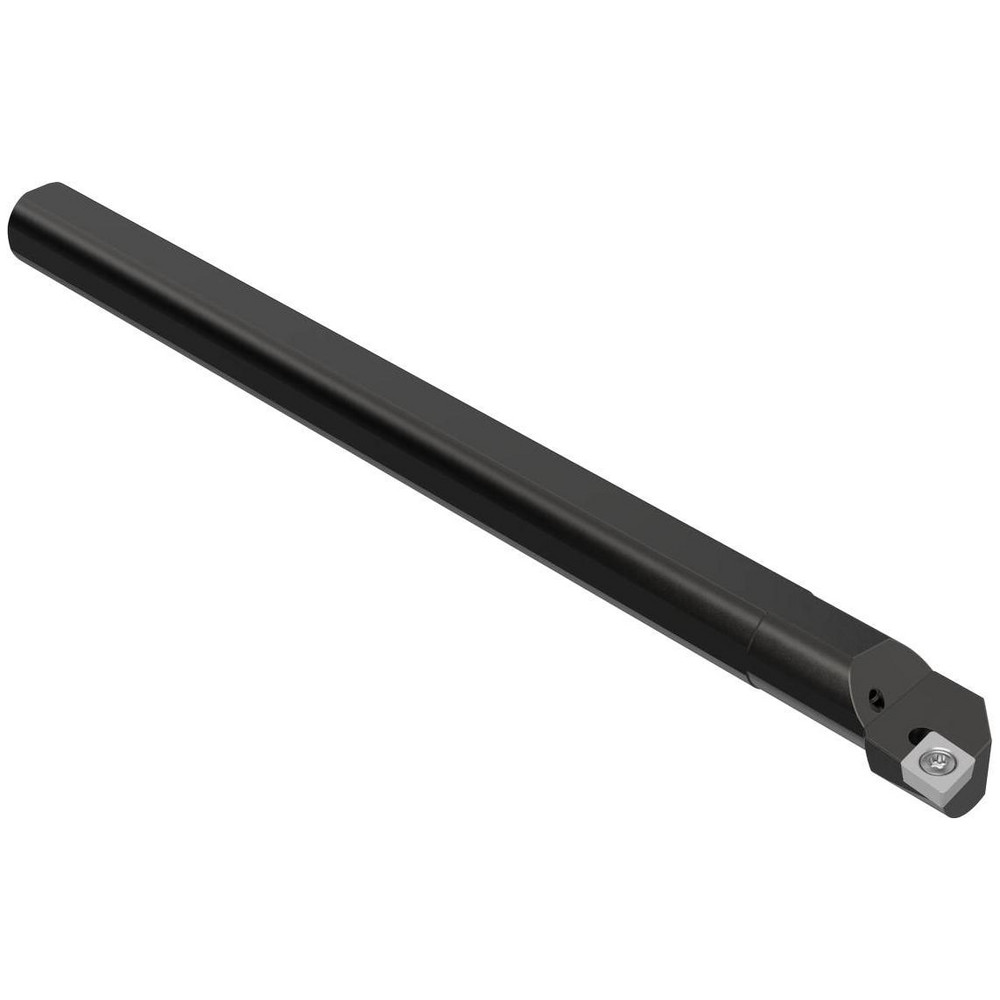

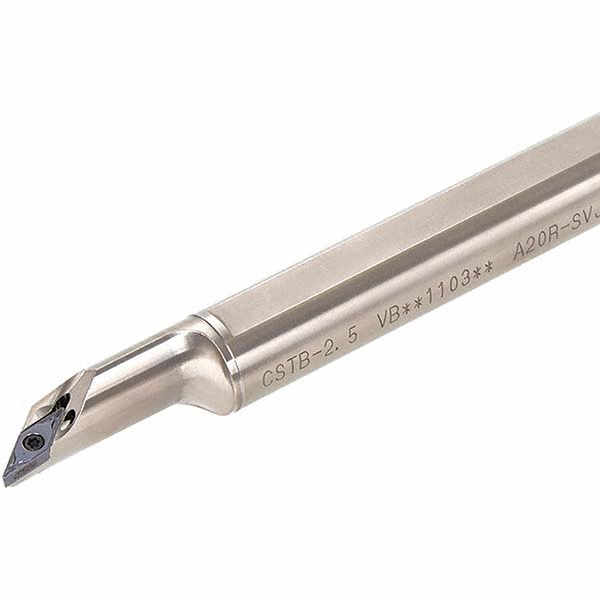

7" OAL, Screw
| Minimum Bore Diameter (Decimal Inch) | 1.0000 |
|---|---|
| Minimum Bore Diameter (Inch) | 1 |
| Maximum Bore Depth (Decimal Inch) | 2.5000 |
| Maximum Bore Depth (Inch) | 2-1/2 |
| Toolholder Style | SVJC |
| Tool Material | Steel |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 7.0000 |
| Overall Length (mm) | 7.00 |
| Overall Length (Inch) | 7 |
| Compatible Insert Size Code | 22 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Rake Angle | -6.00 |
| Lead Angle | 142 |
| Series | SVJC |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.1250 |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.1560 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 77356905 |
