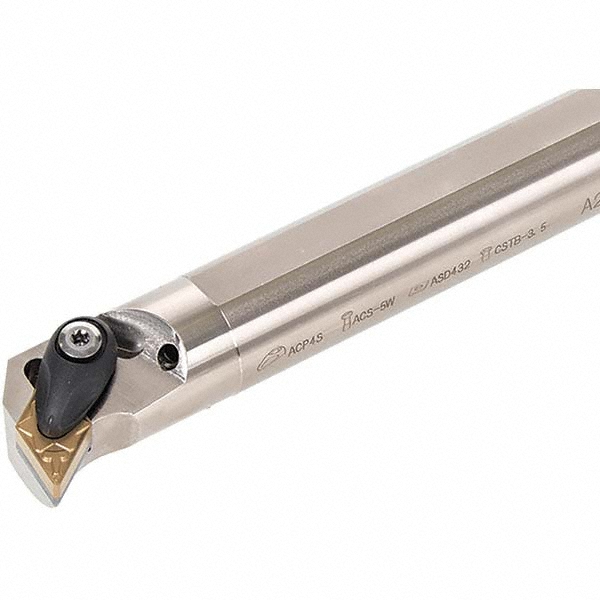

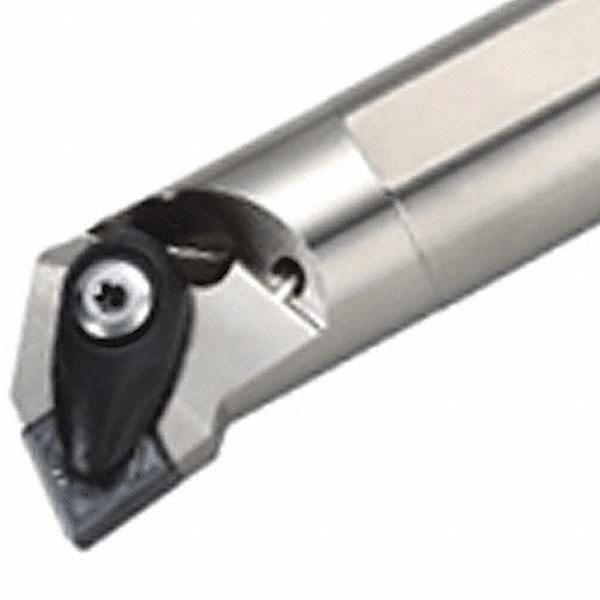

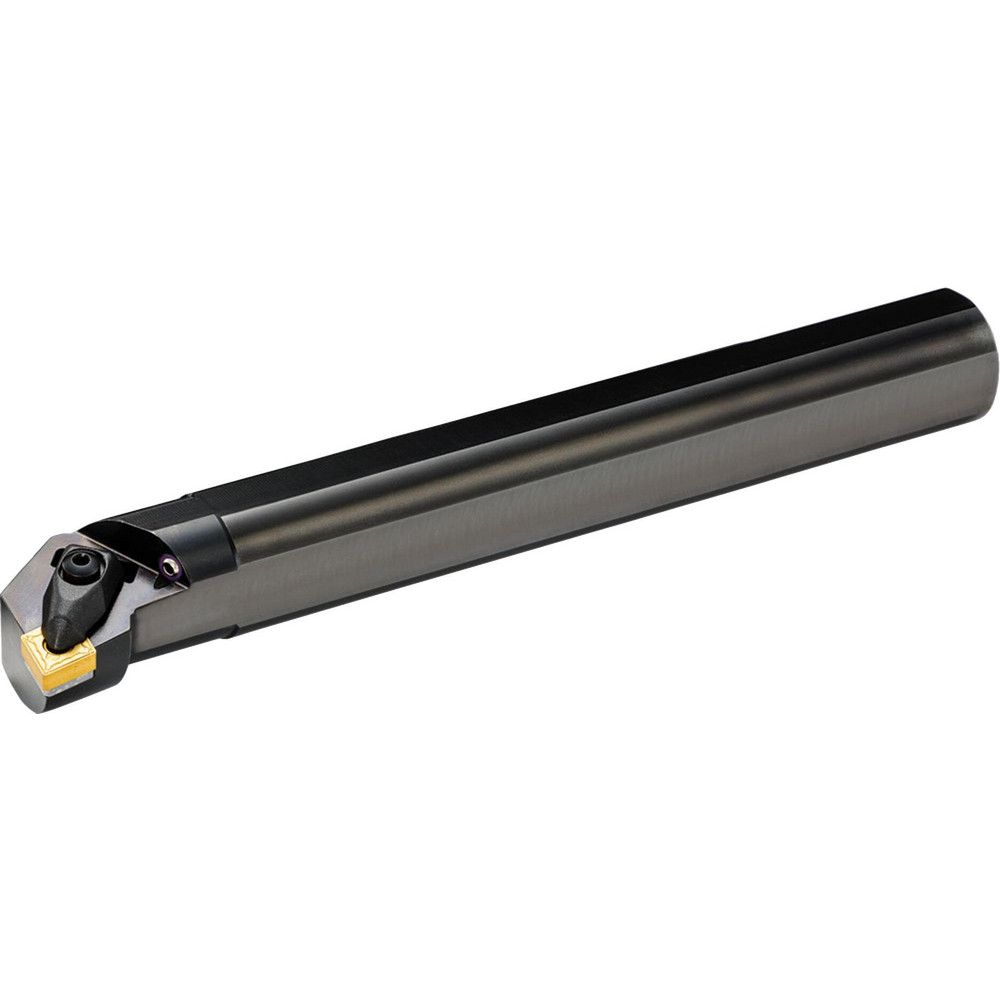

12.0000" OAL, Clamp, Uses CN.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 1.2500 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.7500 |
| Toolholder Style | A-ACLN |
| Tool Material | Steel (Shank) |
| Insert Compatibility | CN.. |
| Hand of Holder | Left Hand |
| Shank Diameter (Inch) | 1 |
| Overall Length (Decimal Inch) | 12.0000 |
| Compatible Insert Size Code | 43 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Diamond |
| Rake | Negative (Axial); Negative (Radial) |
| Lead Angle | 95 |
| Series | TurningA |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Compatible Insert Thickness (Decimal Inch) | 0.1880 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.6400 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 02178507 |
