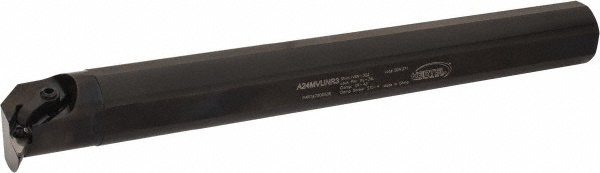

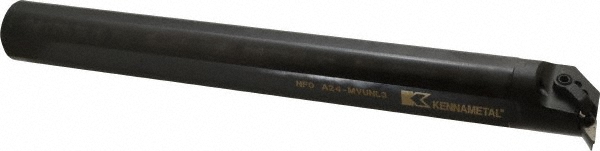

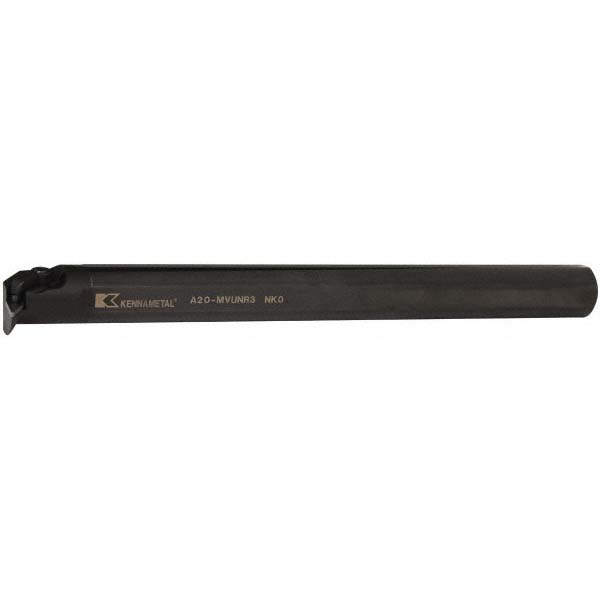

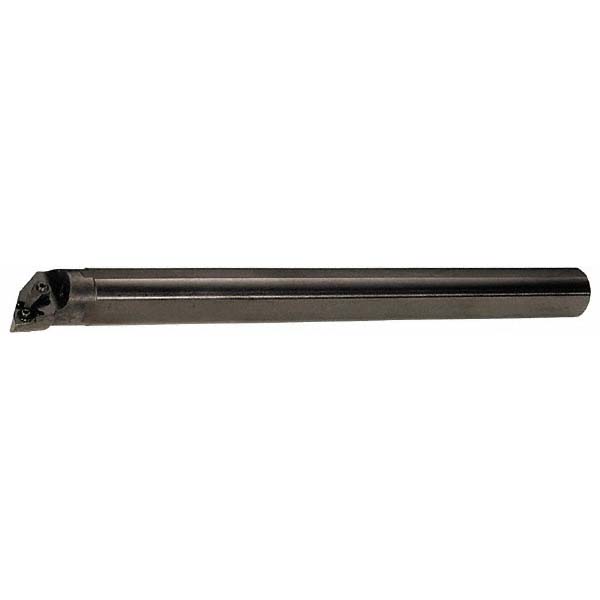

14.0000" OAL, Clamp, Uses VN.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 2.0000 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 2.1600 |
| Toolholder Style | A-AVUN |
| Tool Material | Steel (Shank) |
| Insert Compatibility | VN.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 14.0000 |
| Compatible Insert Size Code | 33 |
| Insert Holding Method | Clamp |
| Compatible Insert Shape | Diamond |
| Rake | Negative (Axial); Negative (Radial) |
| Lead Angle | 93 |
| Series | TurningA |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1870 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 1.0600 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 47642640 |
