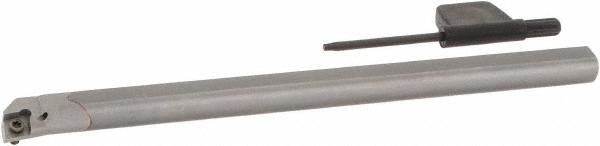

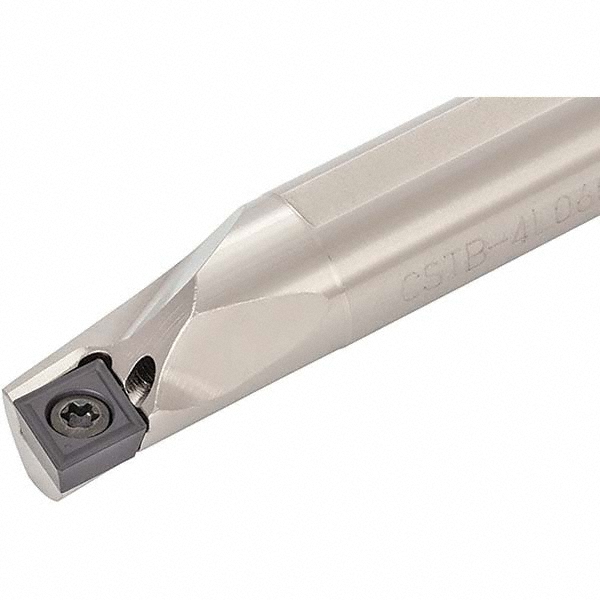

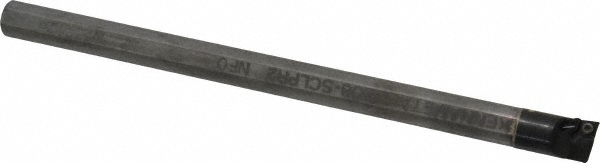

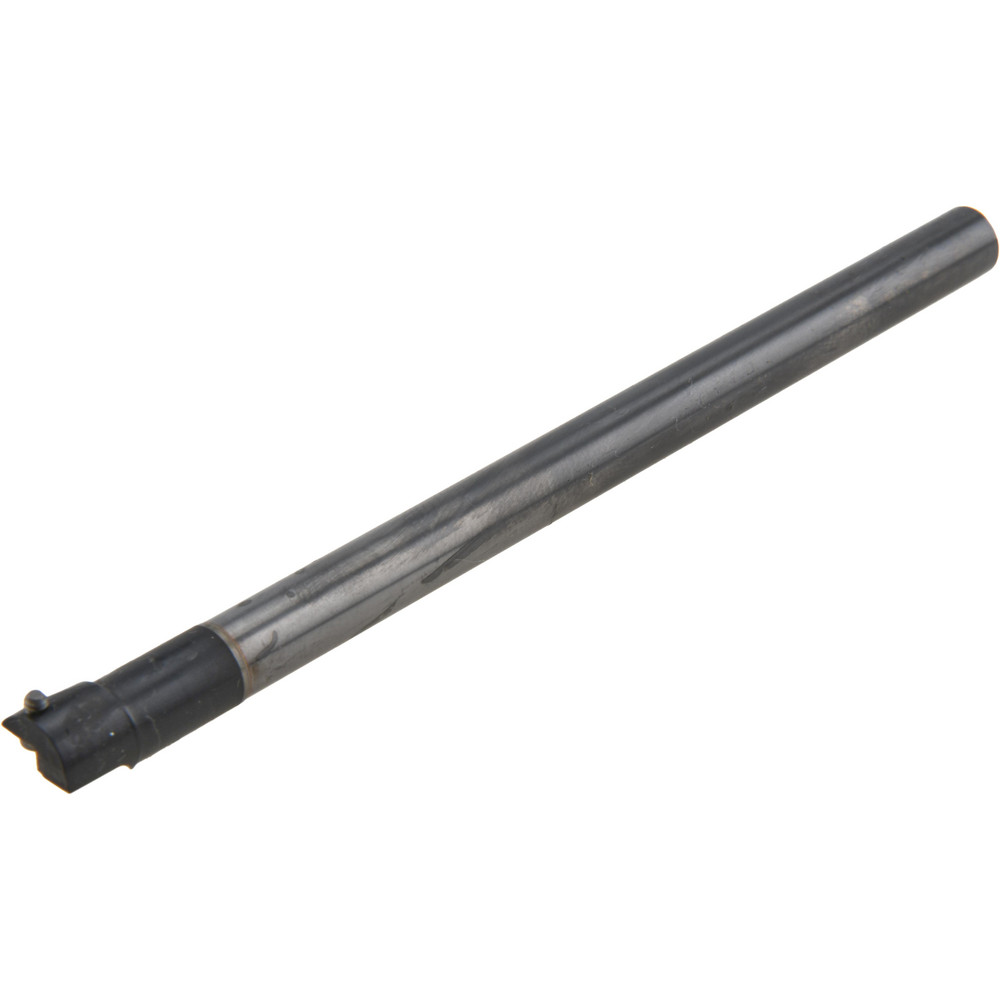

5.0000" OAL, Screw, Uses CP.. Inserts
| Minimum Bore Diameter (Decimal Inch) | 0.5000 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 0.7500 |
| Toolholder Style | E-SCLP |
| Tool Material | Solid Carbide |
| Insert Compatibility | CP.. |
| Hand of Holder | Right Hand |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 5.0000 |
| Compatible Insert Size Code | 21.5 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Rake | Neutral (Axial); Negative (Radial) |
| Lead Angle | 95 |
| Series | Jetstream |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0940 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.2810 |
| Number of Inserts Used on Toolholder | 1 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 50729029 |
