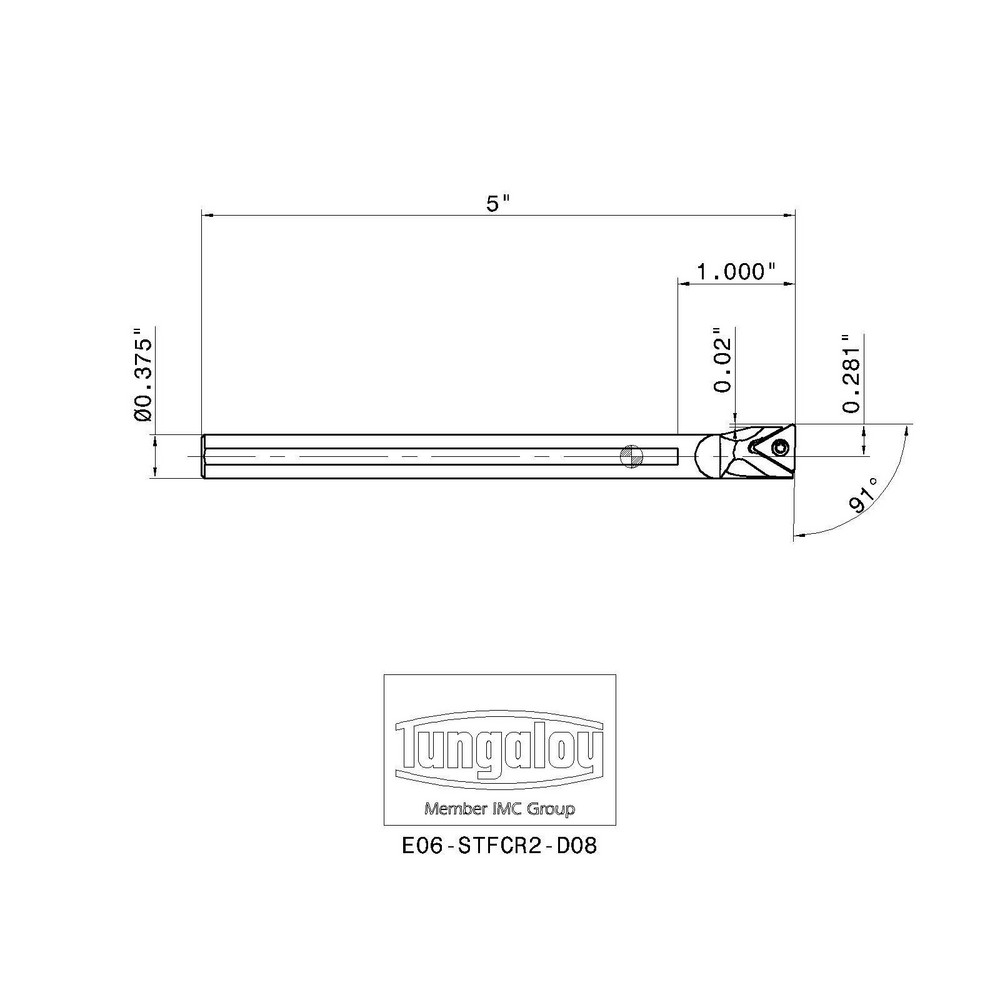

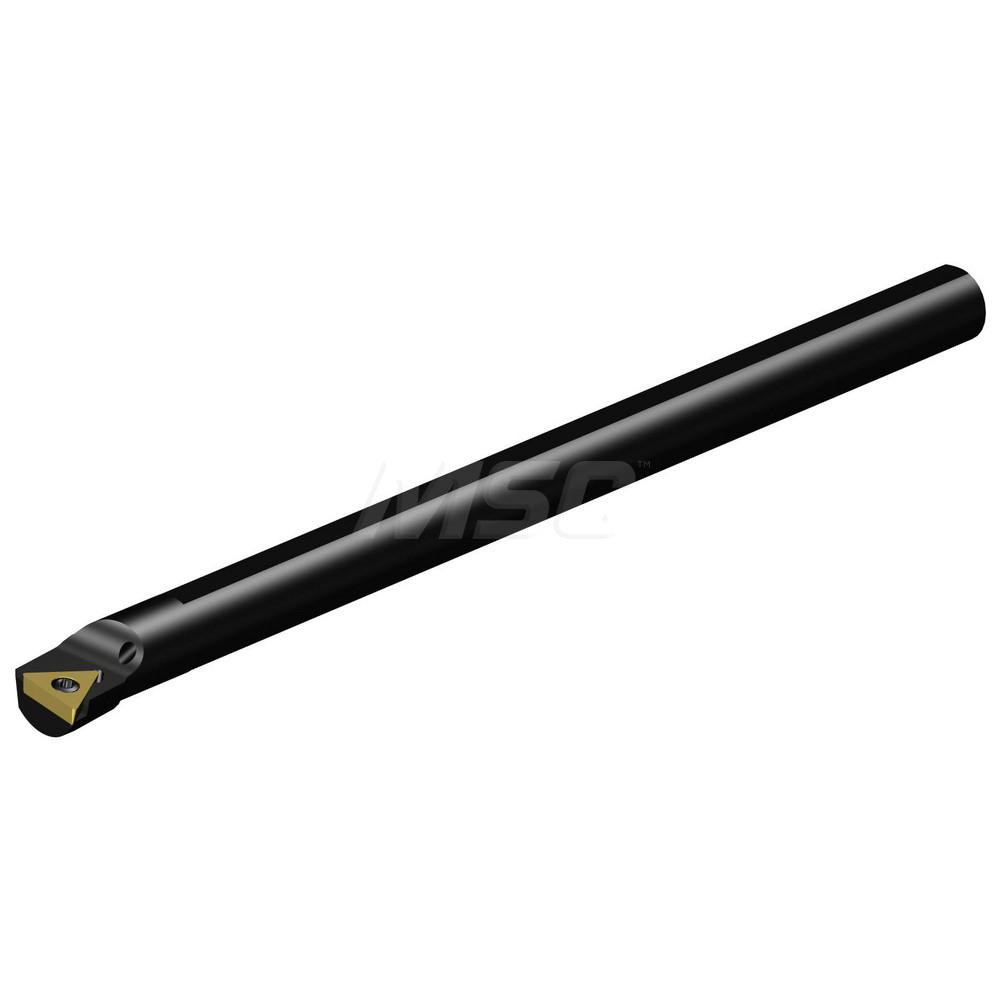

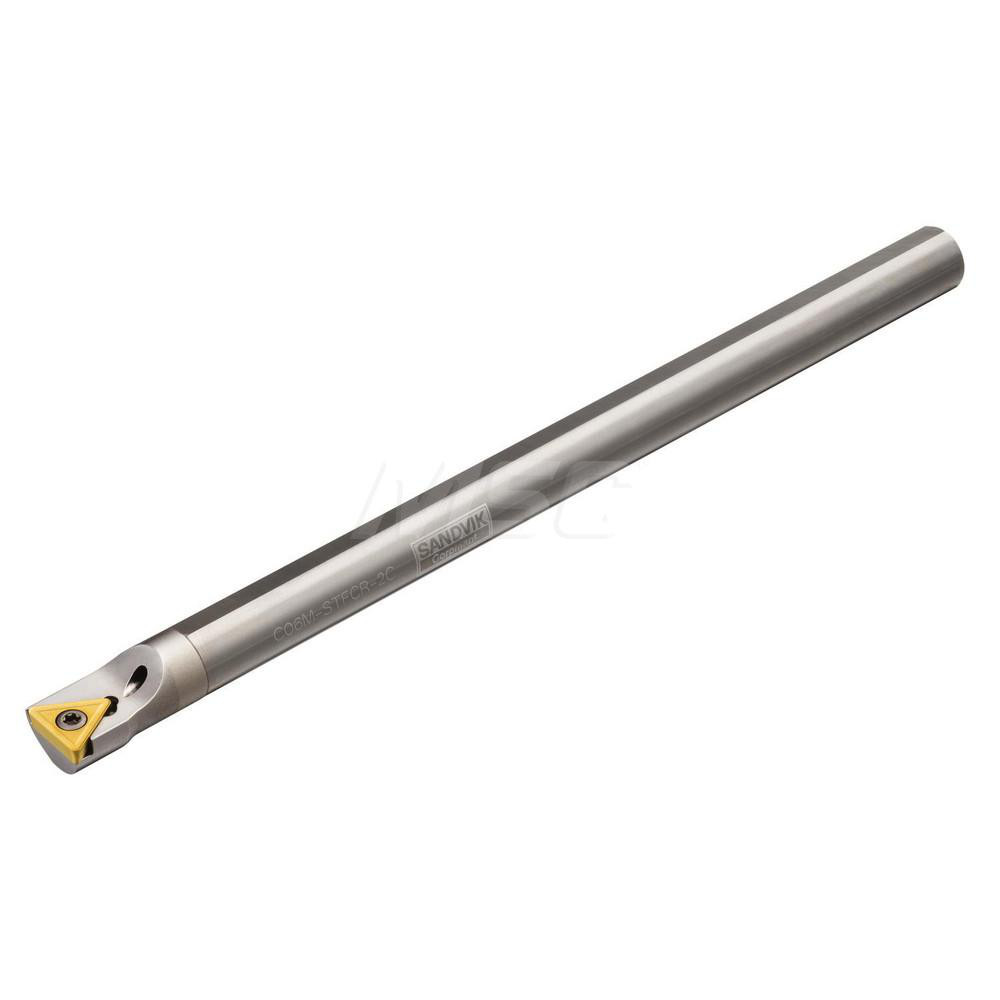

5" OAL, Screw Clamping
| Minimum Bore Diameter (Decimal Inch) | 0.5000 |
|---|---|
| Minimum Bore Diameter (Inch) | 1/2 |
| Maximum Bore Depth (Decimal Inch) | 1.0000 |
| Maximum Bore Depth (Inch) | 1 |
| Toolholder Style | STFCL; STFCR |
| Tool Material | Solid Carbide |
| Shank Diameter (Inch) | 3/8 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Compatible Insert Size Code | 21.5 |
| Insert Holding Method | Screw Clamping |
| Compatible Insert Shape | Triangle |
| Rake | Neutral (Axial); Negative (Radial) |
| Lead Angle | 91 |
| Series | StreamJetBar |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0940 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.2810 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 76913854 |
