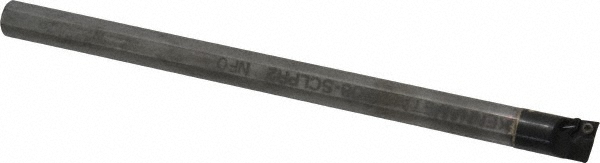

5.0000" OAL, Screw

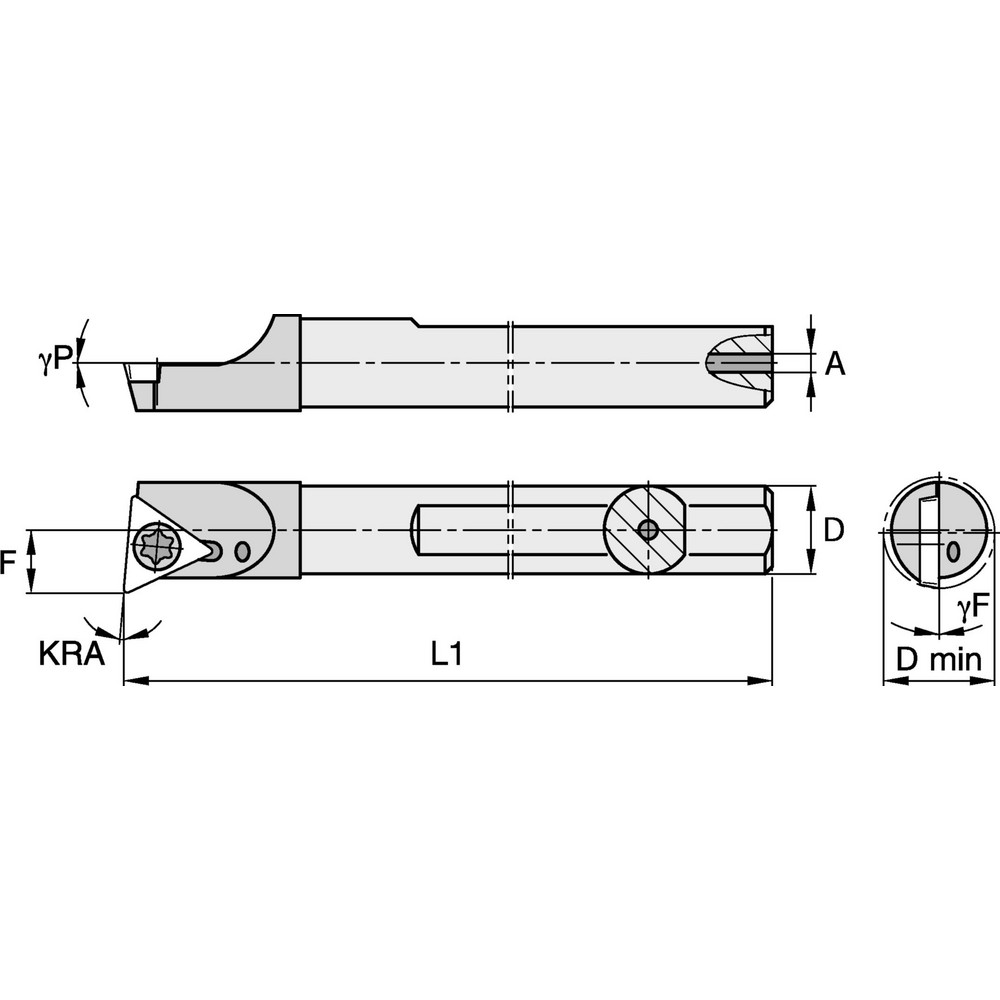

| Minimum Bore Diameter (Decimal Inch) | 0.5920 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 3.5000 |
| Maximum Bore Depth (Inch) | 3-1/2 |
| Toolholder Style | SCLC |
| Tool Material | Solid Carbide |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (mm) | 5.00 |
| Overall Length (Inch) | 5 |
| Compatible Insert Size Code | 21.5 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Rake Angle | -15.00 |

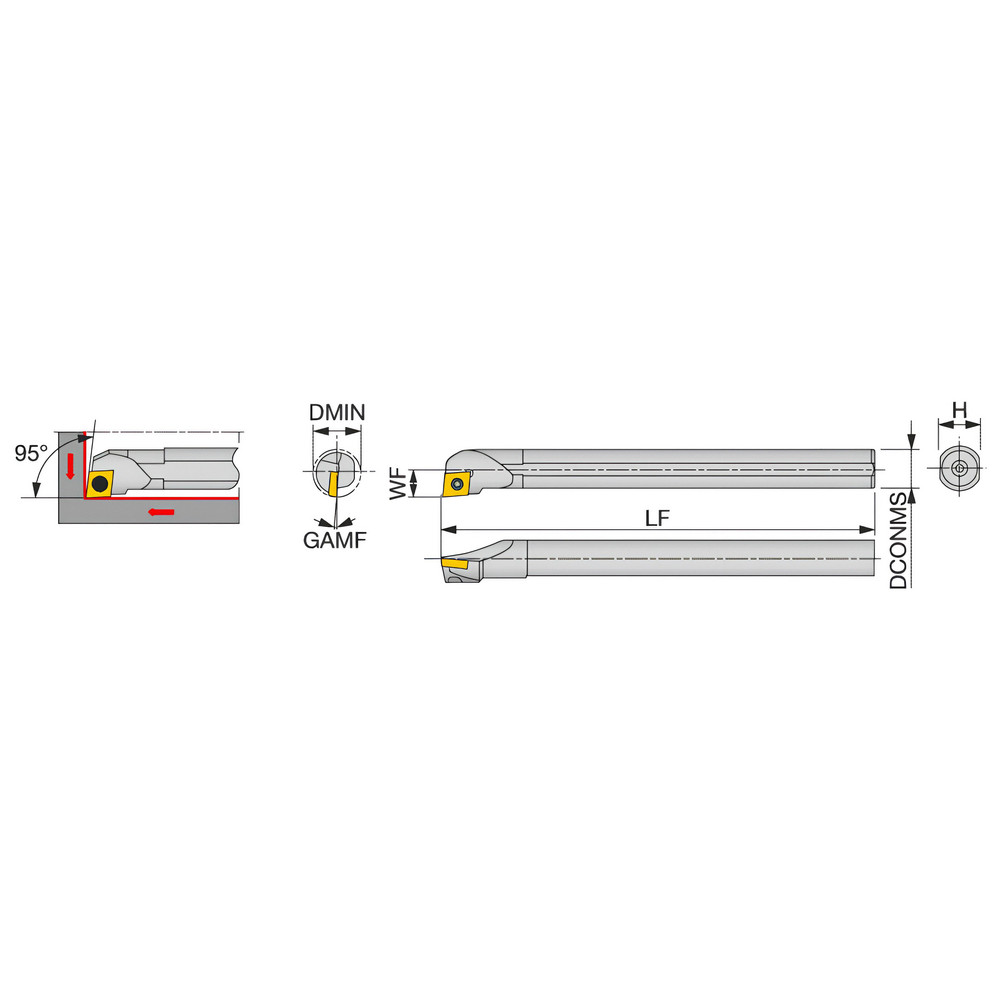

| Lead Angle | 95 |
| Series | SCLC |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0940 |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.3080 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 79985669 |
