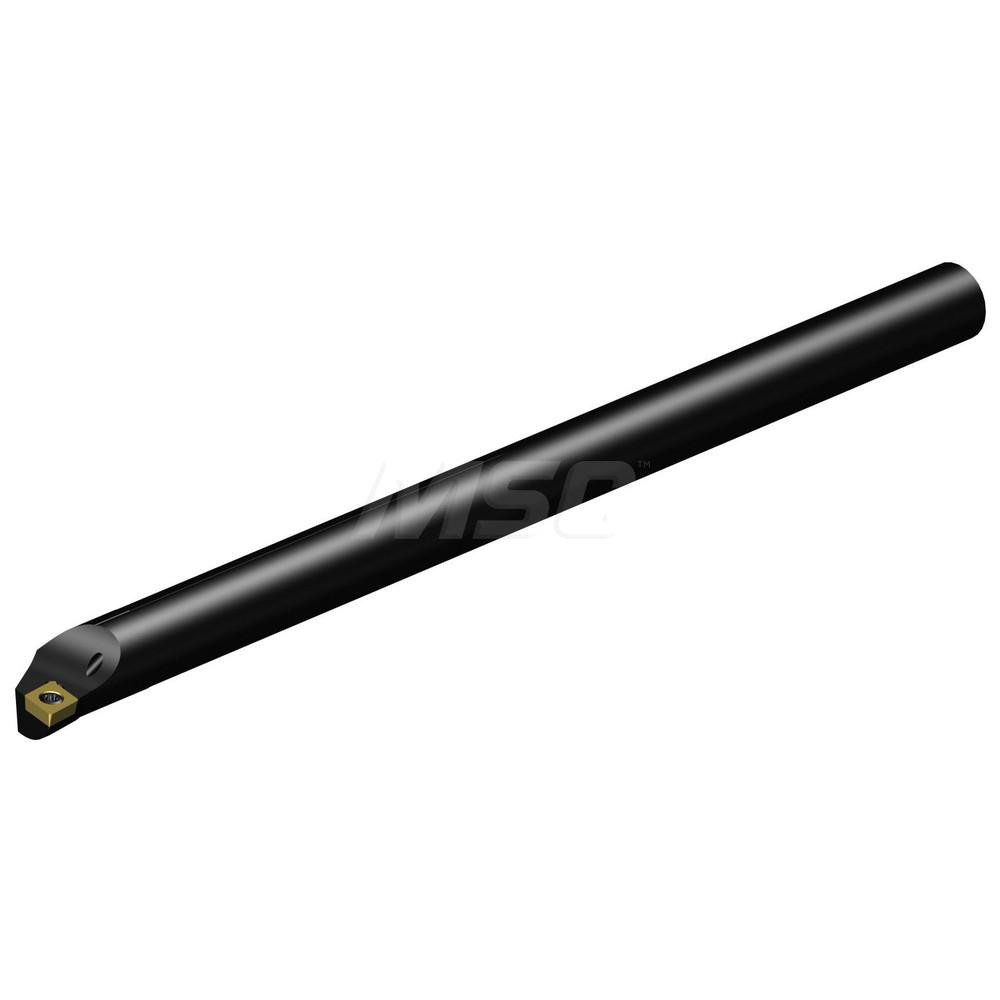

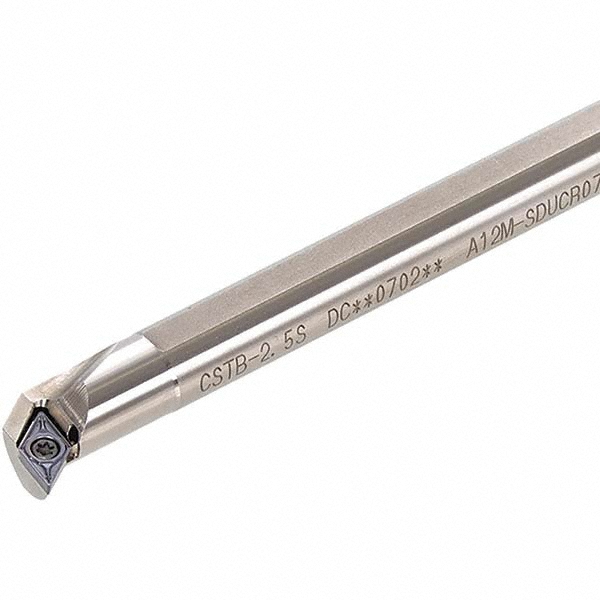

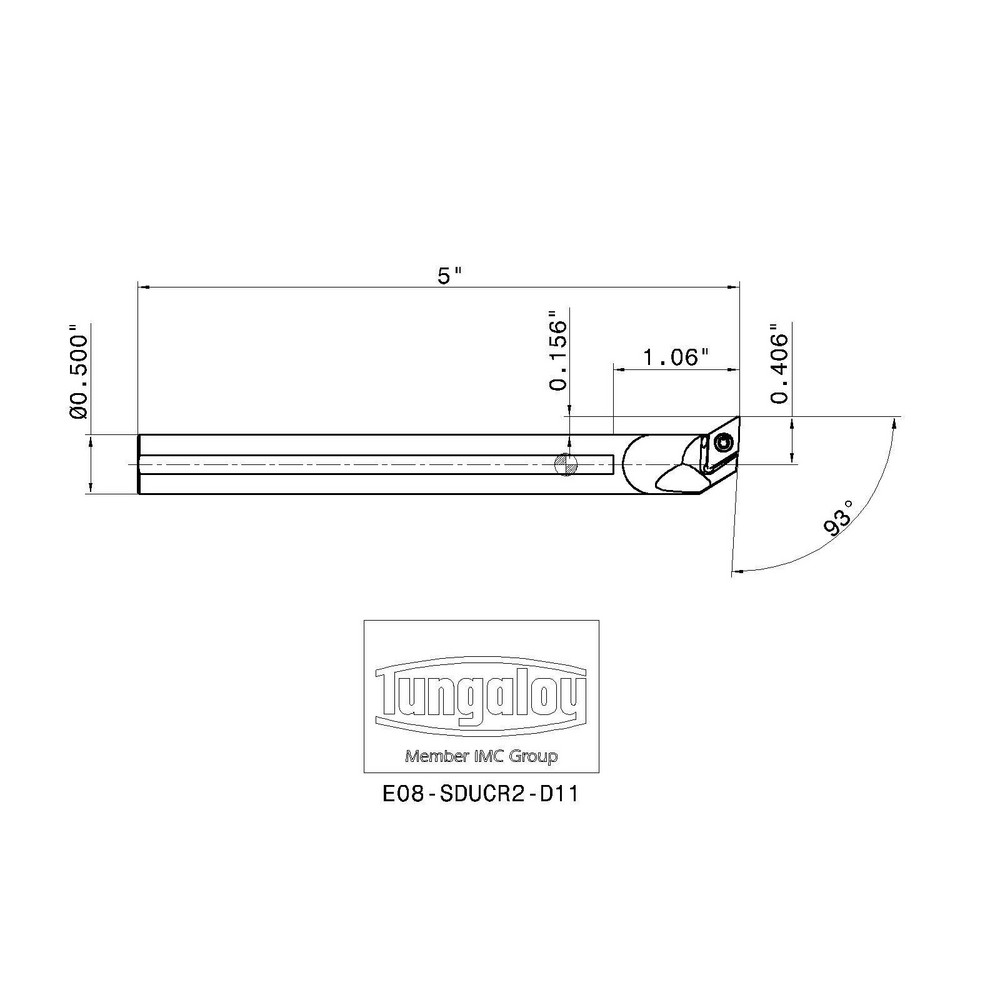

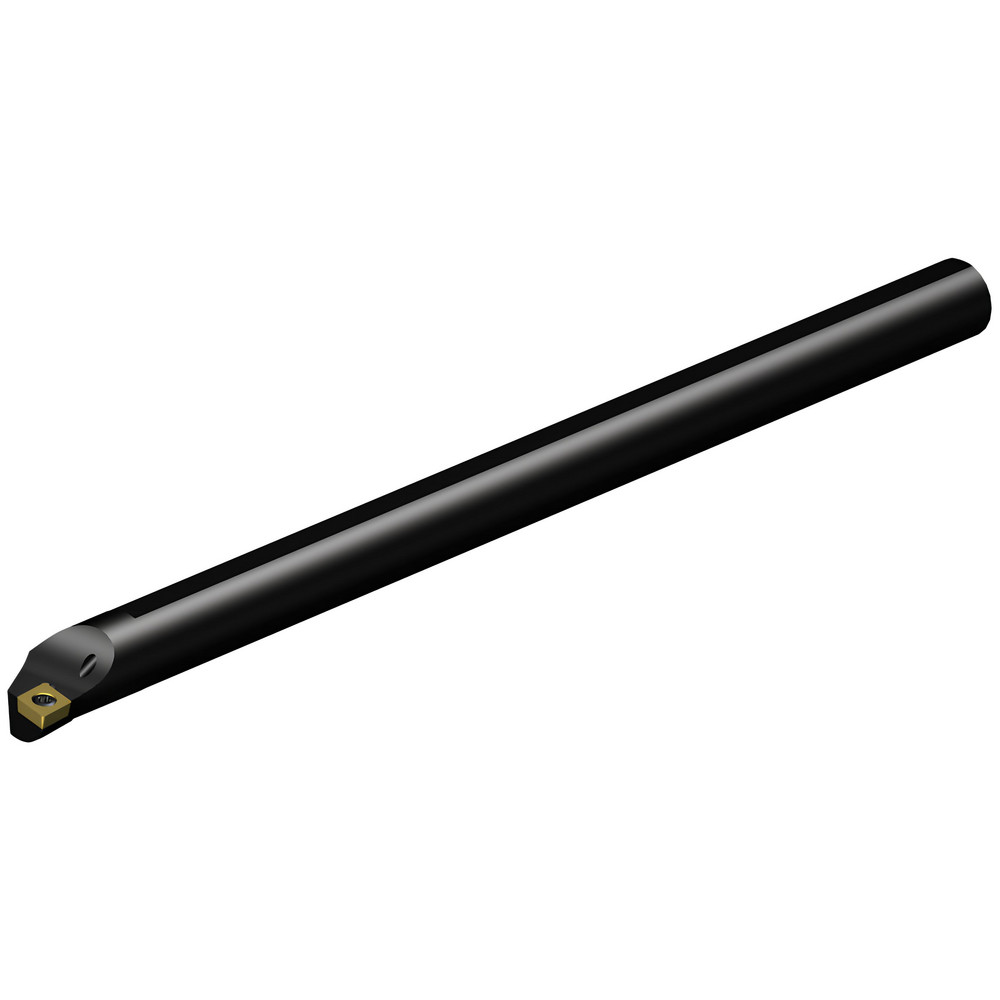

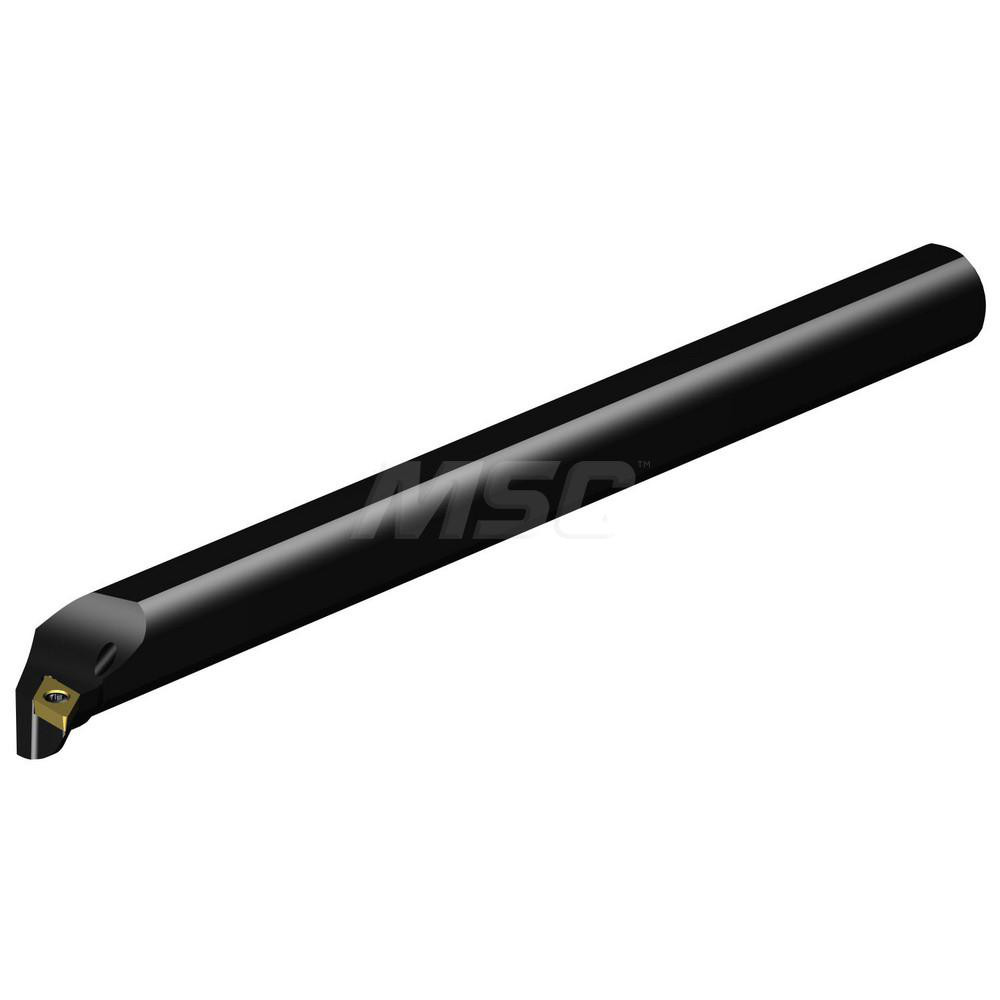

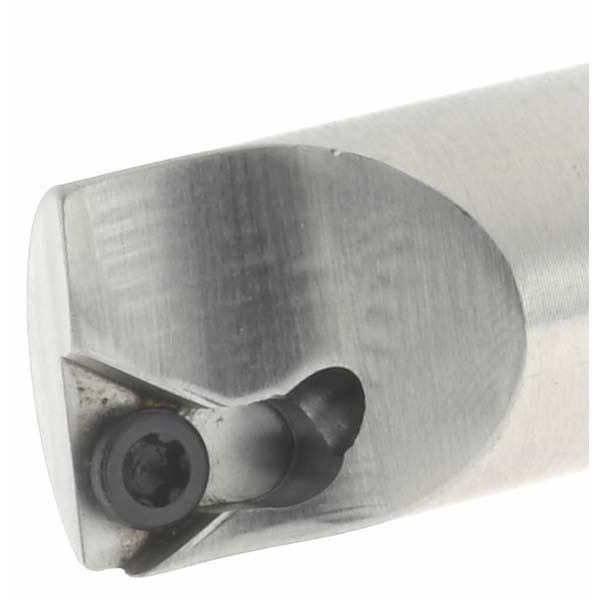

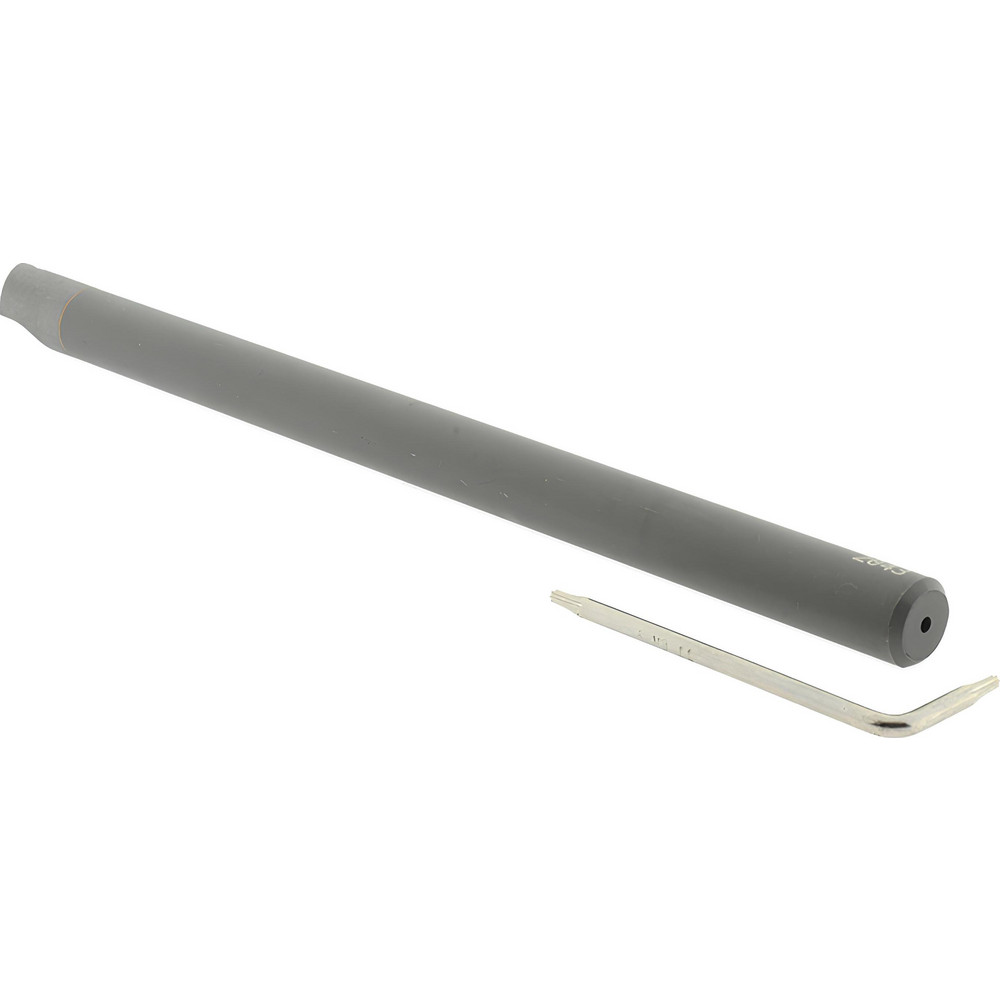

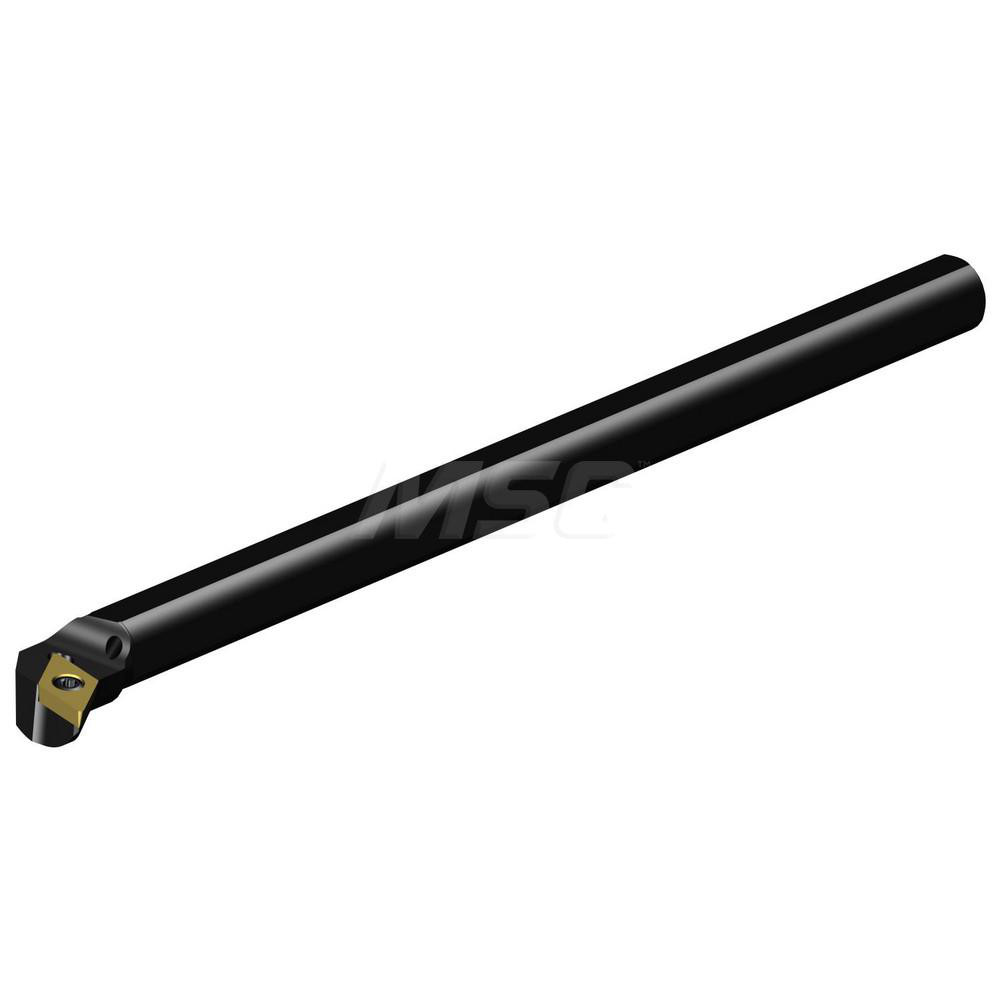

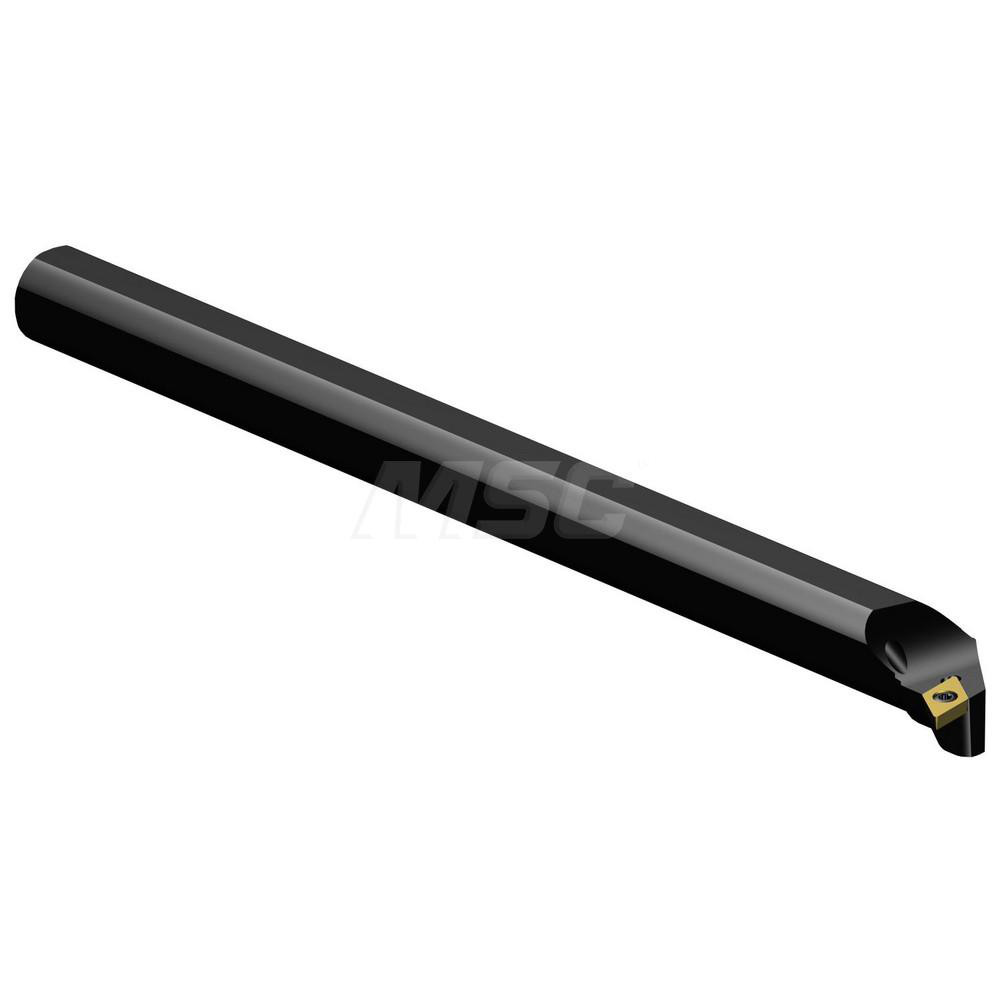

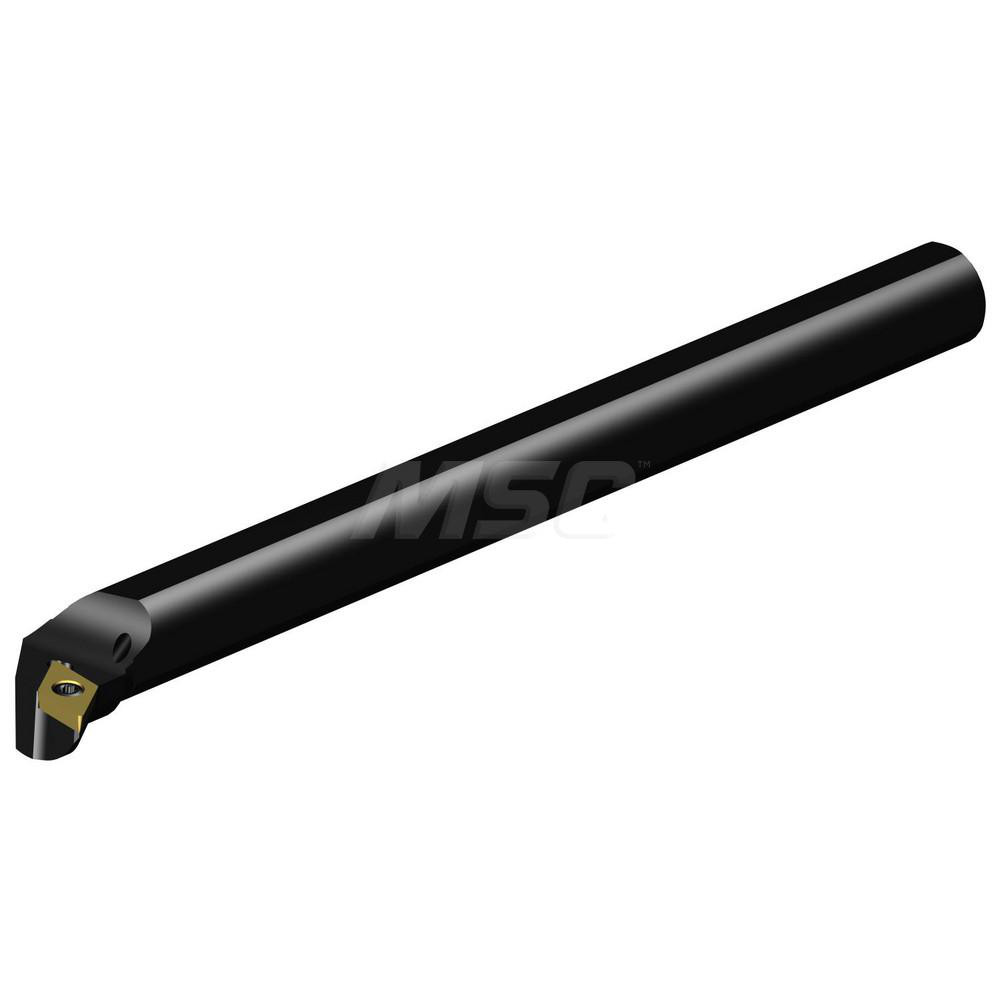

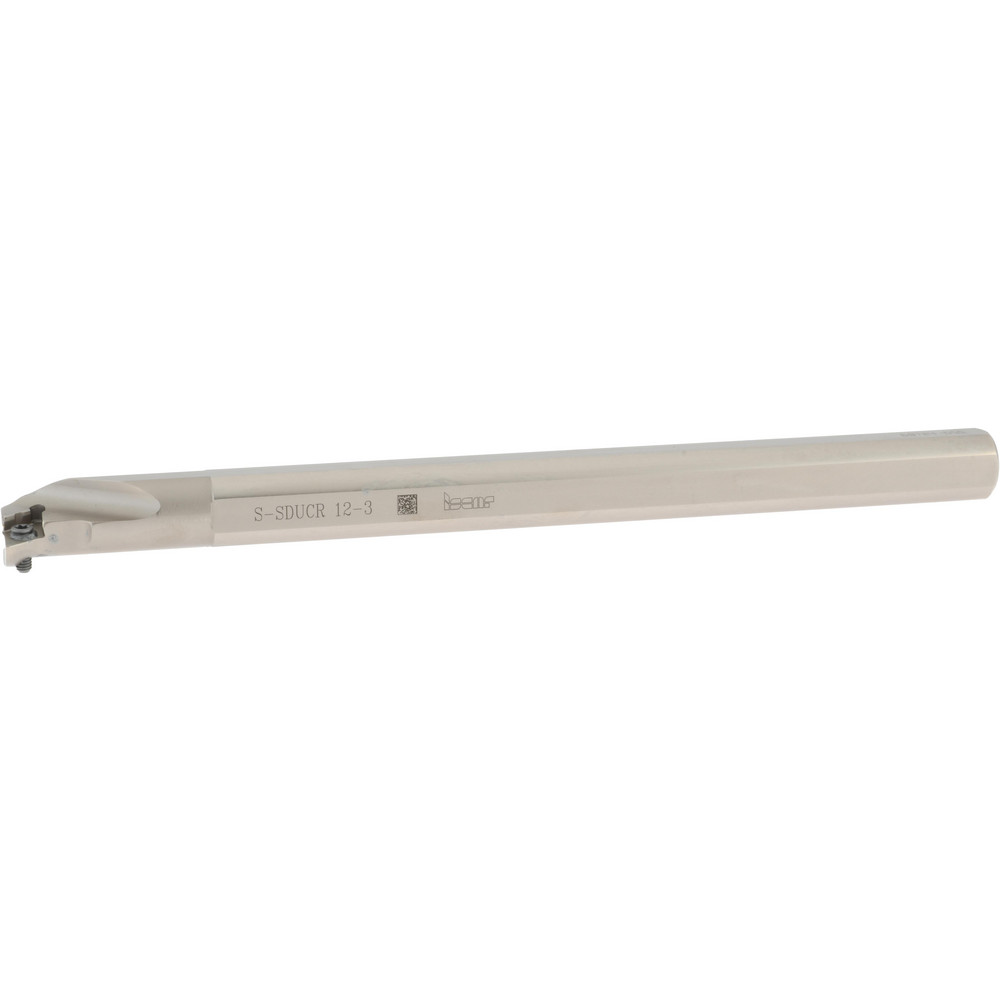

5.0000" OAL, Screw Clamping
| Minimum Bore Diameter (Decimal Inch) | 0.6880 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 1.0620 |
| Toolholder Style | SDUCR; SDUCL |
| Tool Material | Solid Carbide |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 5.0000 |
| Overall Length (Inch) | 5 |
| Compatible Insert Size Code | 21.5 |

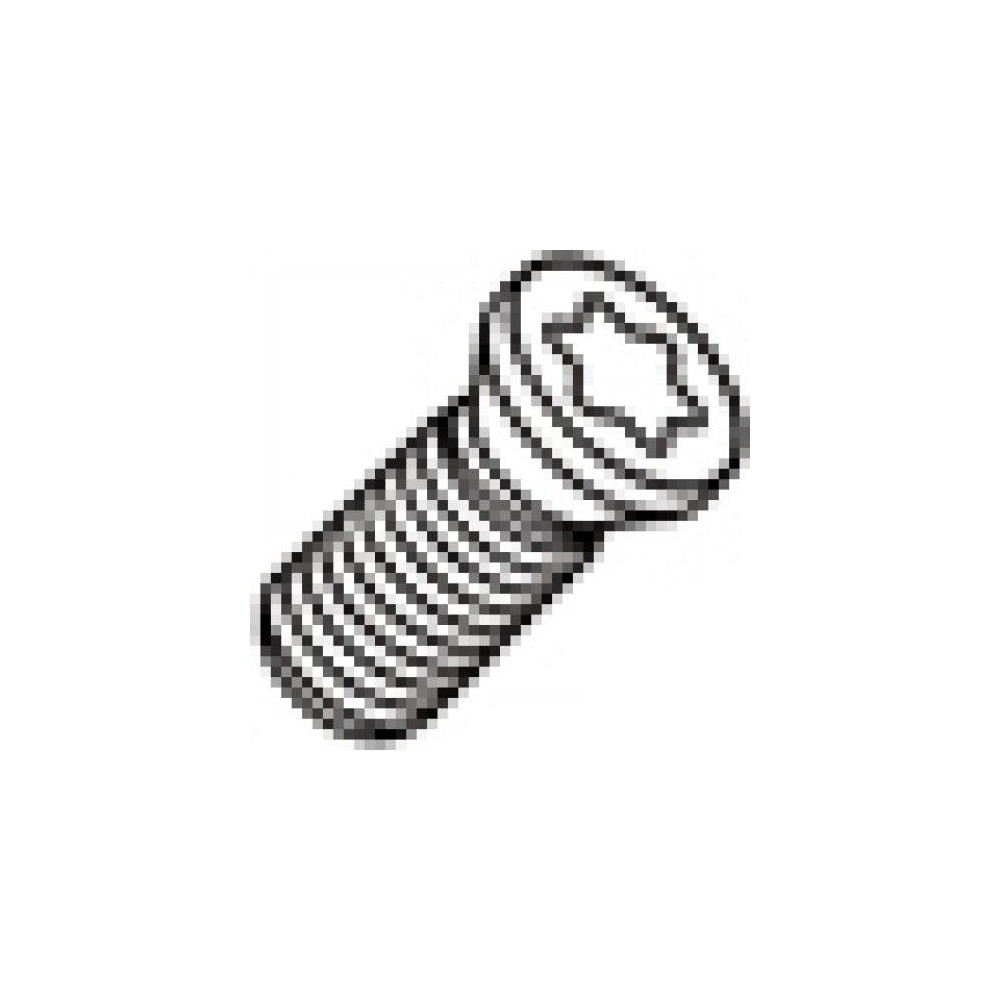

| Insert Holding Method | Screw Clamping |

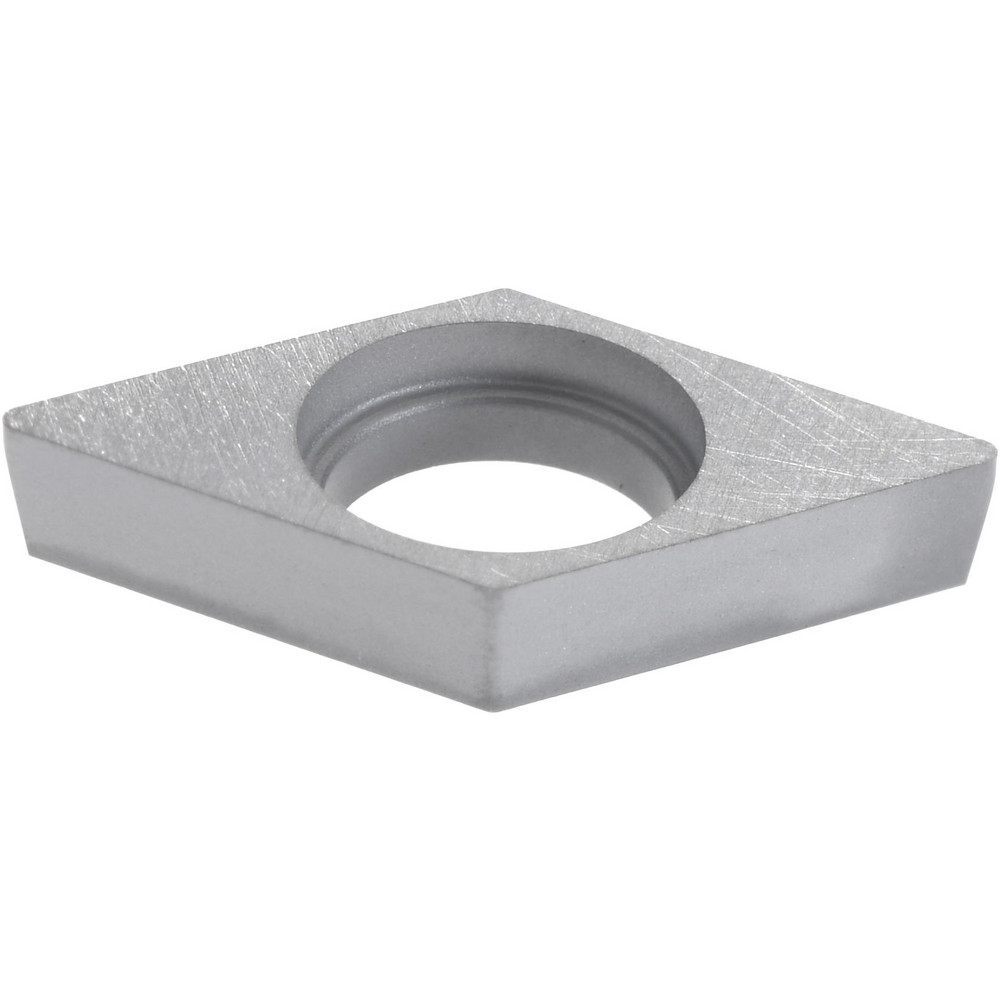

| Compatible Insert Shape | Diamond |
| Rake | Neutral (Axial); Negative (Radial) |
| Lead Angle | 93 |
| Series | StreamJetBar |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Compatible Insert Thickness (Decimal Inch) | 0.0940 |
| Multi-use Tool | No |
| Cutting Tool Application | Turning; Boring |
| Center to Cutting Edge (Decimal Inch) | 0.4060 |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | Japan |
| MSC Number | MSC# 68818632 |
