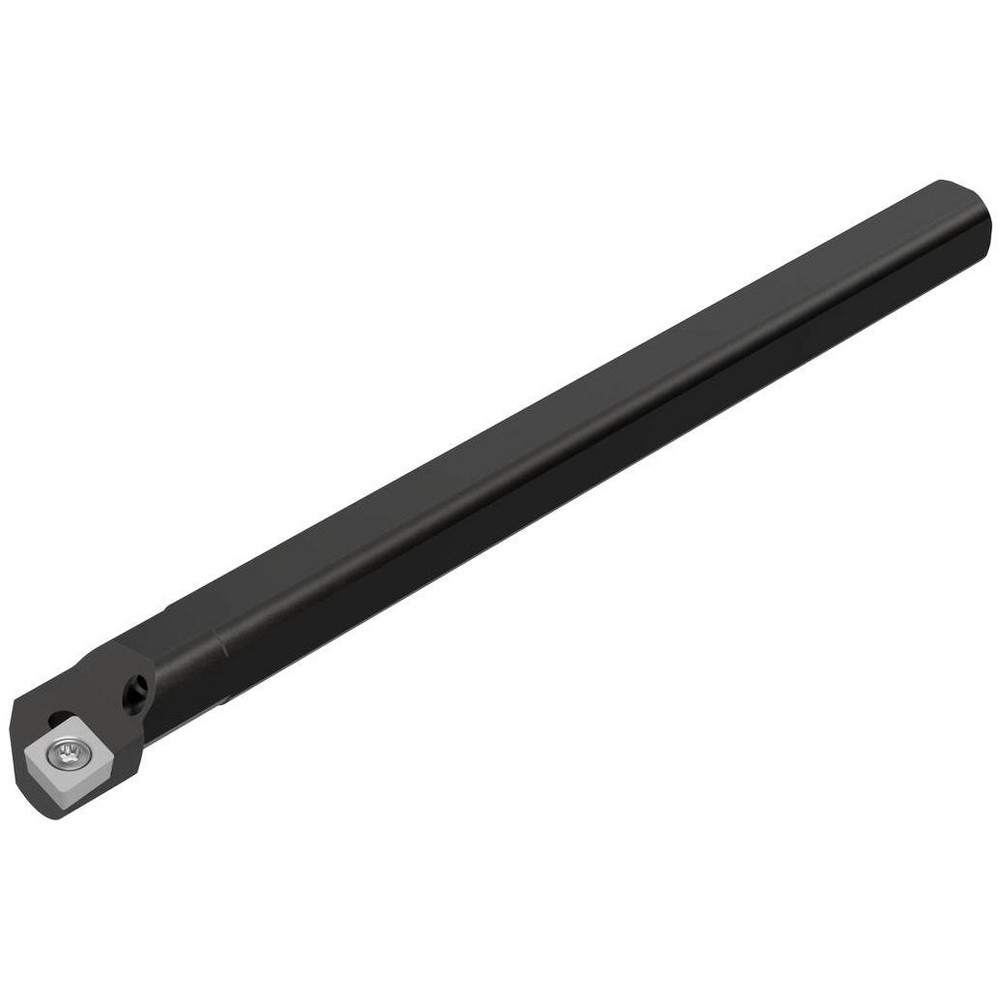

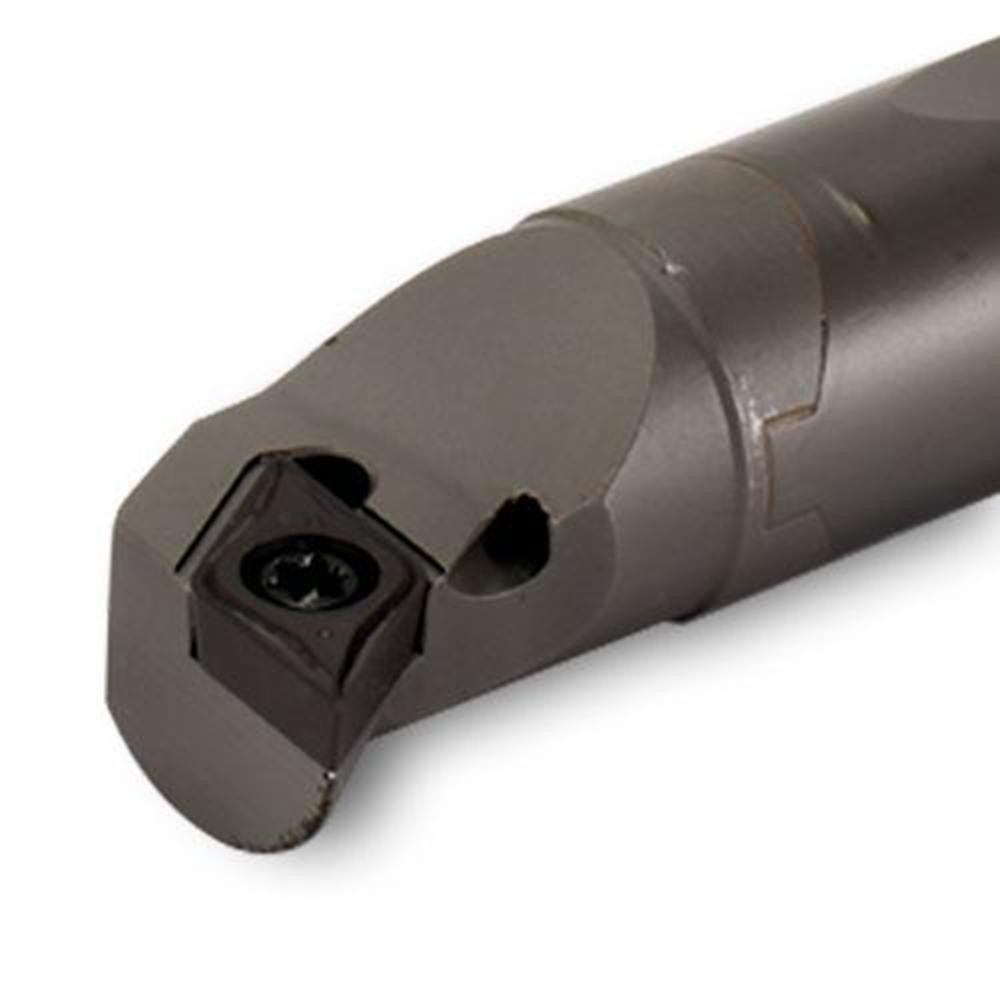

7.0000" OAL, Screw
| Minimum Bore Diameter (Decimal Inch) | 0.7600 |
|---|---|
| Maximum Bore Depth (Decimal Inch) | 4.3750 |
| Maximum Bore Depth (Inch) | 4-3/8 |
| Toolholder Style | SCLC |
| Tool Material | Solid Carbide |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 7.0000 |
| Overall Length (mm) | 7.00 |
| Overall Length (Inch) | 7 |
| Compatible Insert Size Code | 32.5 |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Rake Angle | -12.00 |
| Lead Angle | 95 |
| Series | SCLC |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Compatible Insert Thickness (Decimal Inch) | 0.1560 |
| Cutting Tool Application | Boring |
| Center to Cutting Edge (Decimal Inch) | 0.4010 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23241601 |
| Coolant Through | Yes |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 79990685 |
