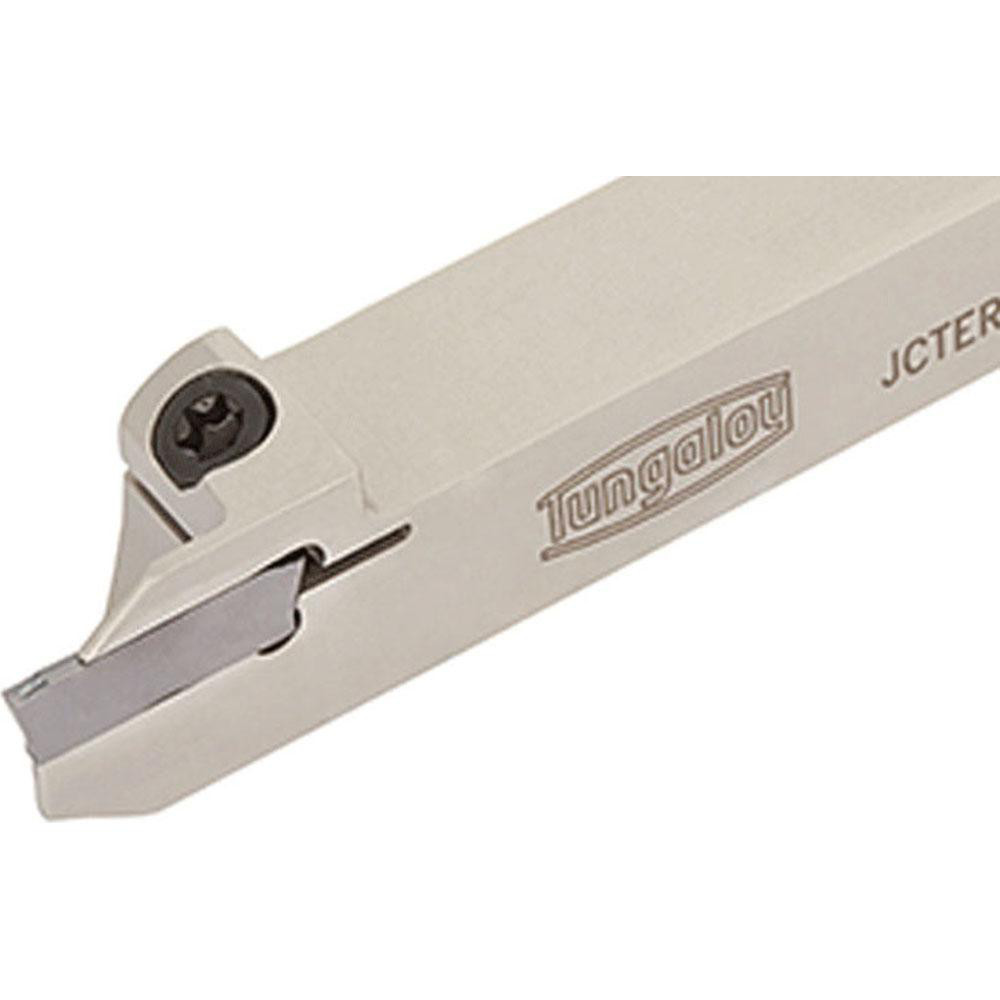

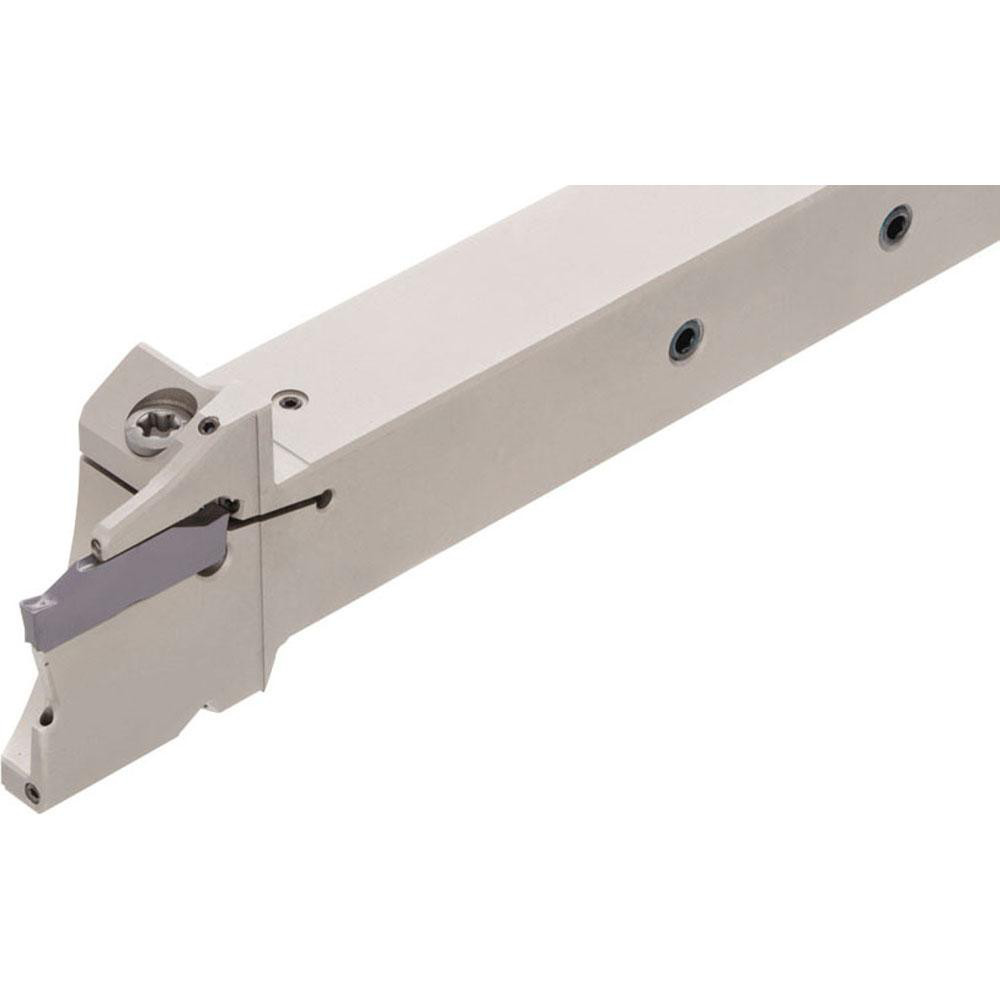

Uses DG.., SG.. Inserts, 1/2 x 1/2" Shank, Series TungCut
| Internal or External | External |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Groove Width (Decimal Inch) | 0.0790 |
| Toolholder Style | JCTE |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | DGS; DGE; DGG; DGL; SGM; DGM; SGS |
| Insert Compatibility | SG..; DG.. |
| Shank Height (Decimal Inch) | 0.5000 |
| Shank Length (Decimal Inch) | 0.7480 |
| Shank Width/Diameter (Decimal Inch) | 0.5000 |
| Series | TungCut |
| Overall Length (Decimal Inch) | 4.7500 |
| Cutting Tool Application | Grooving; Turning; Parting |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4250 |
| Head Length (Decimal Inch) | 4.0020 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Standards | ISO |
| Mount Size | 08 |
| Manufacturers Catalog Number | JCTER08-2T12 |
| Complete Insert Compatibility | DGS; DGE; DGG; SGM; DGM; SGS |
| Insert Seat Size | 2.0 |
| Coolant Through | No |
| UNSPSC Code | 23153308 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 47654587 |
