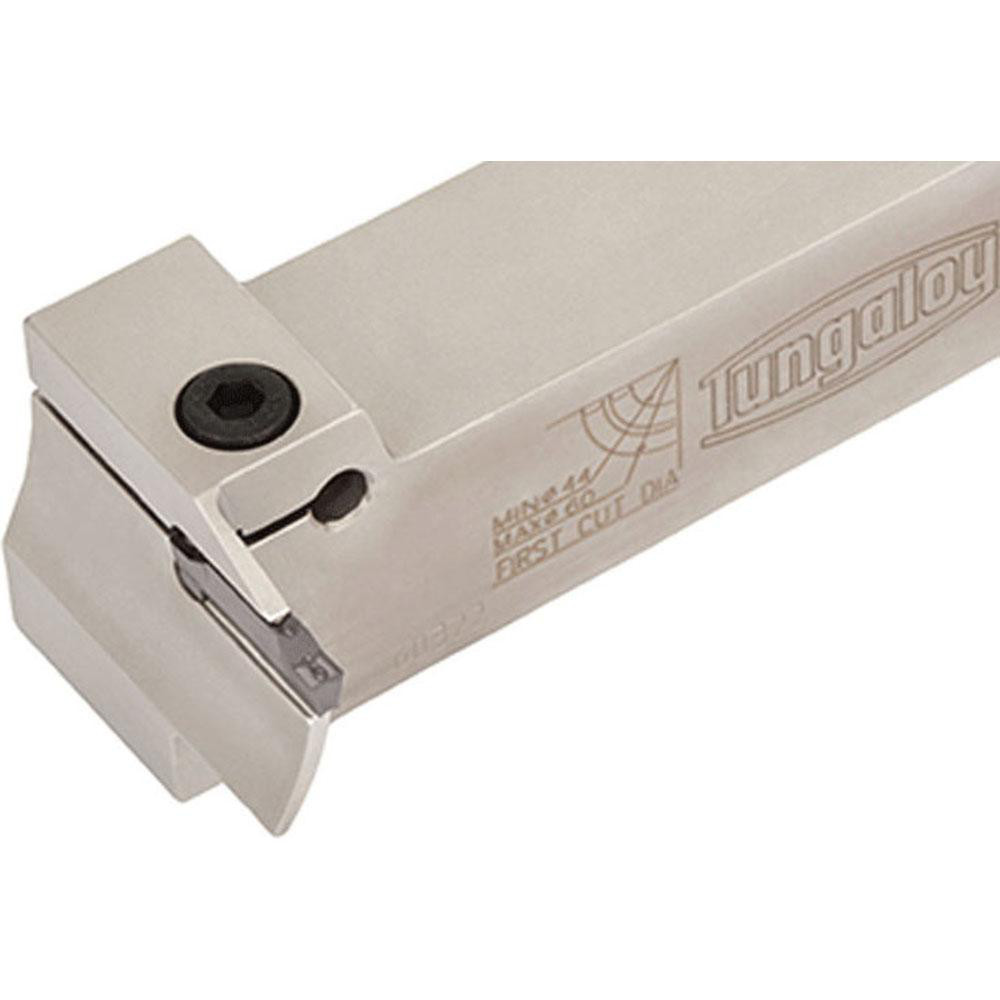

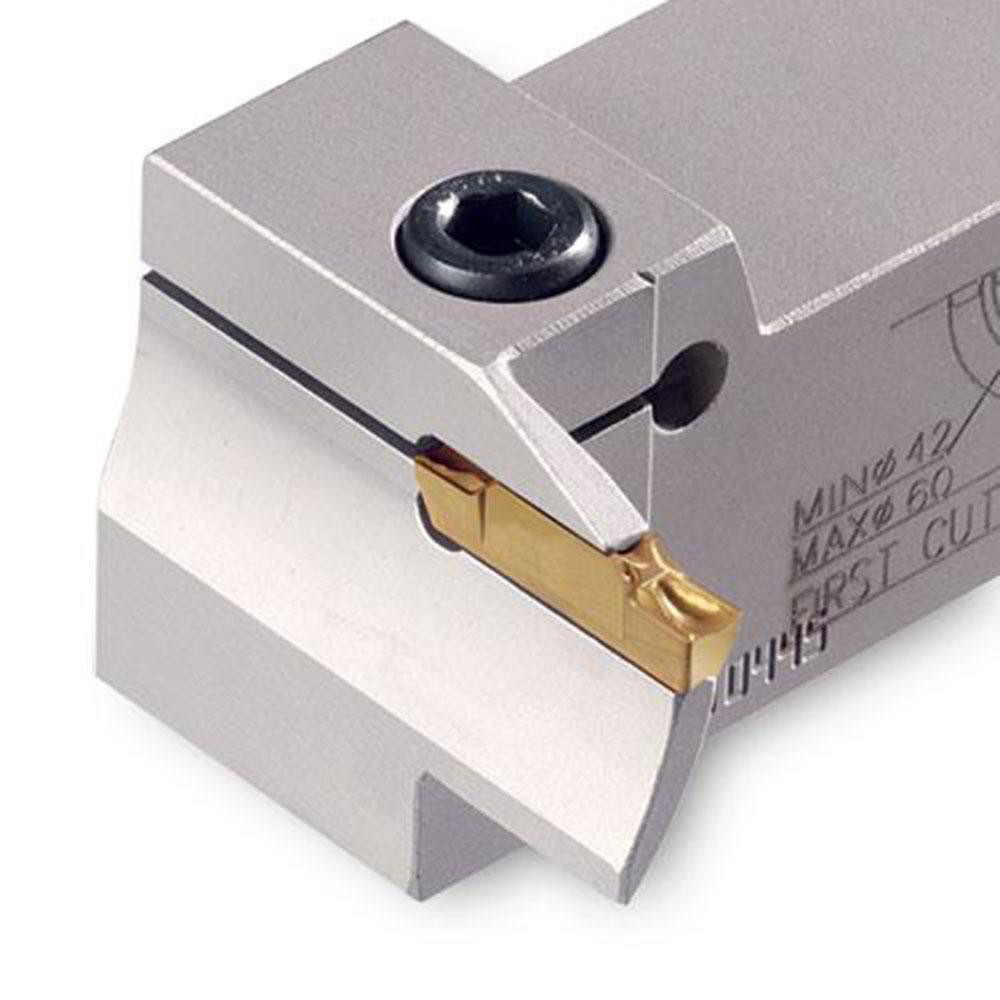

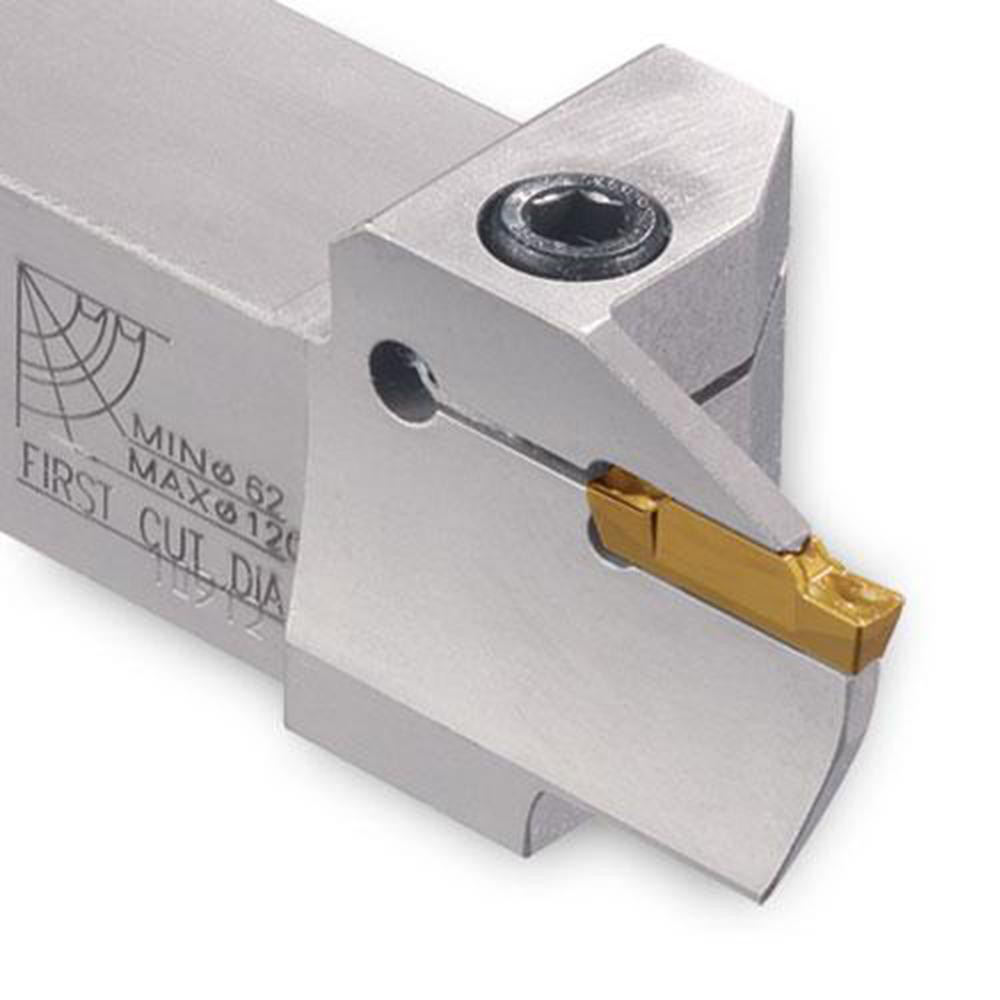

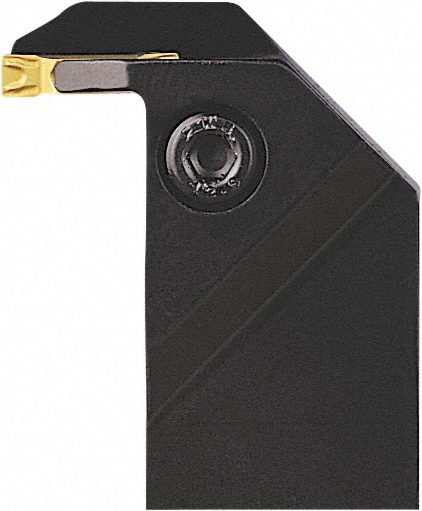

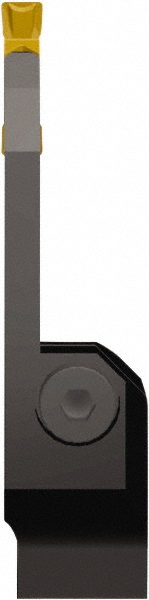

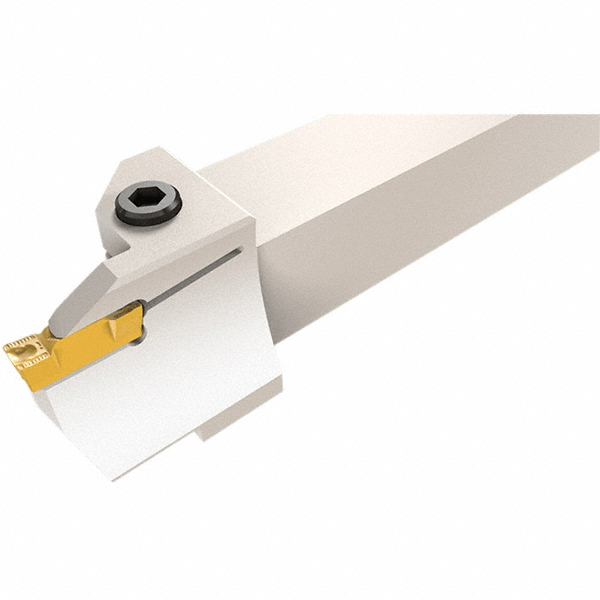

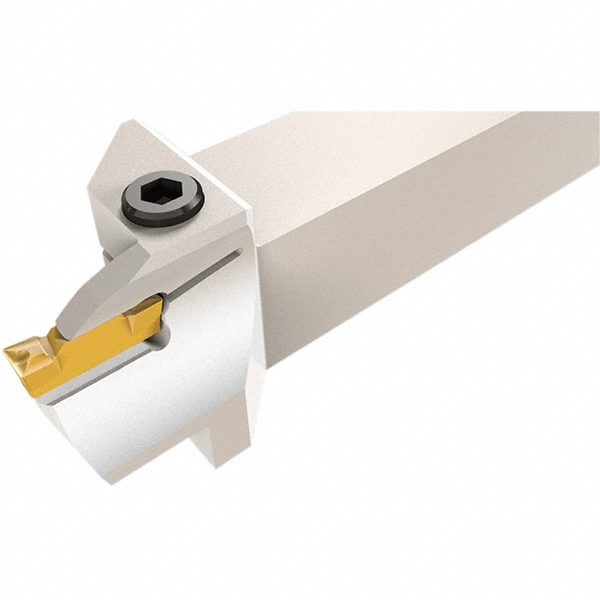

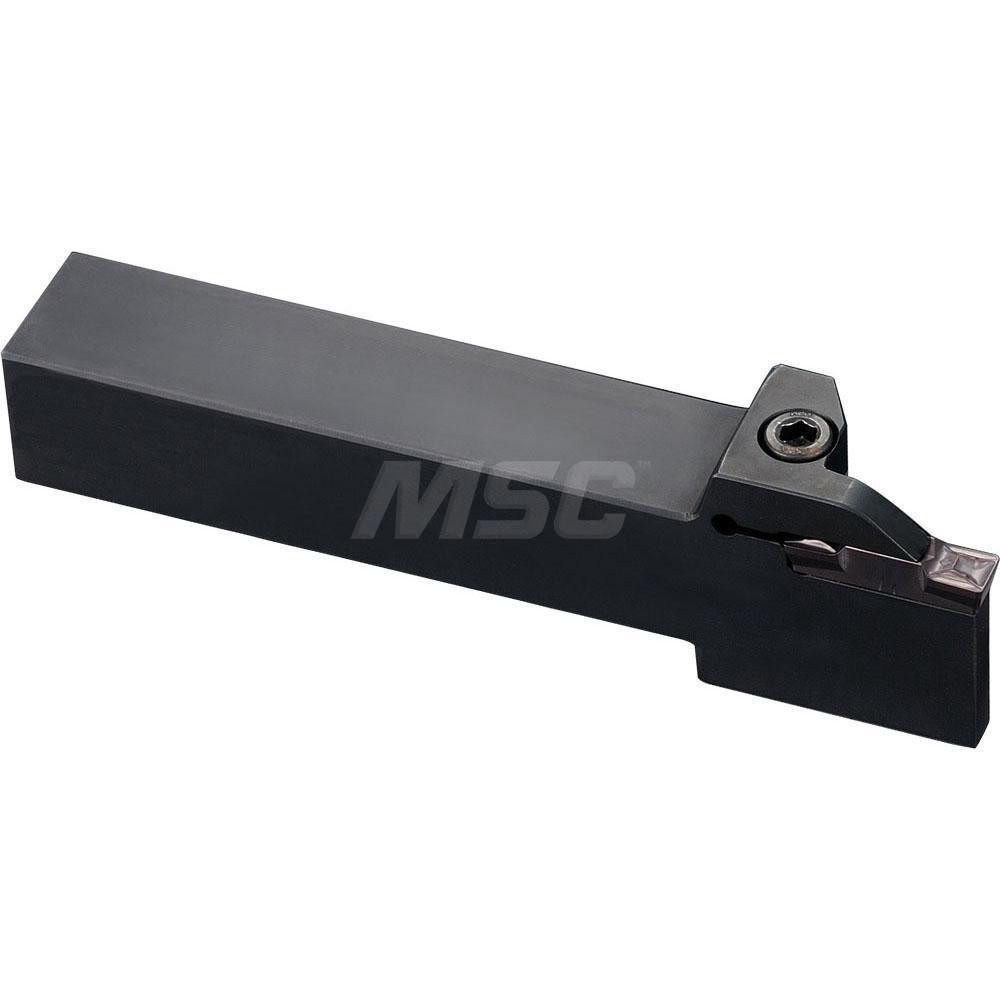

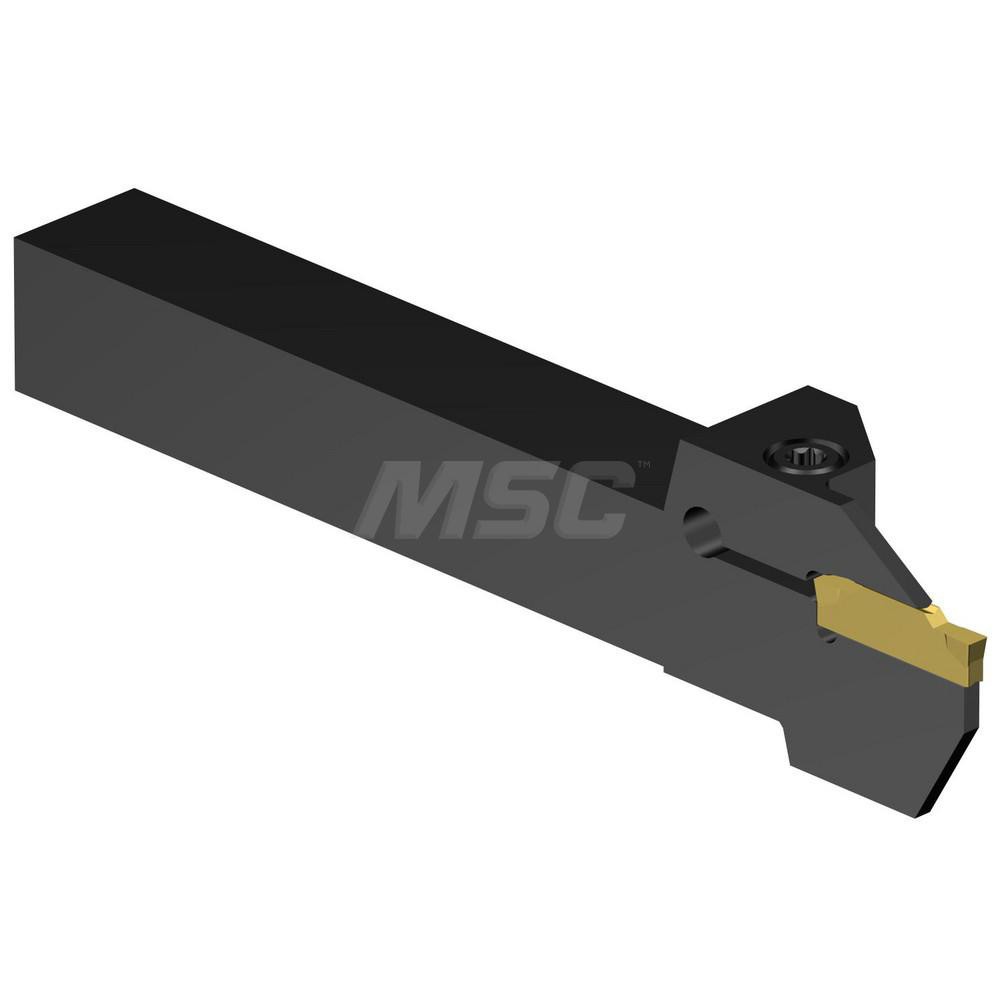

20 mm Max Depth of Cut, Uses 6 Inserts
| Toolholder Type | Face Grooving |
|---|---|
| Insert Seat Size | 6 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 20.00 |
| Minimum Groove Width (mm) | 6.00 |
| Toolholder Style | CTFV |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 6 |
| Shank Height (mm) | 25.00 |
| Series | CTFV |
| Overall Length (mm) | 150 |
| Maximum Workpiece Diameter (mm) | 150.00 |
| Back of Bar to Cutting Edge (mm) | 45.00 |
| Minimum Hole Diameter (mm) | 73.00 |
| Head Height (mm) | 25.00 |
| Head Length (mm) | 22.00 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Country of Origin | South Korea |
| undefined | undefined |
| MSC Number | MSC# 79950960 |
