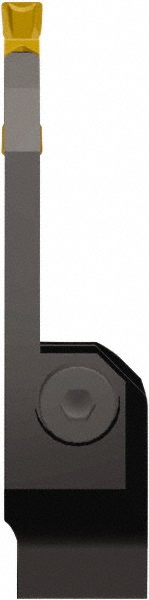

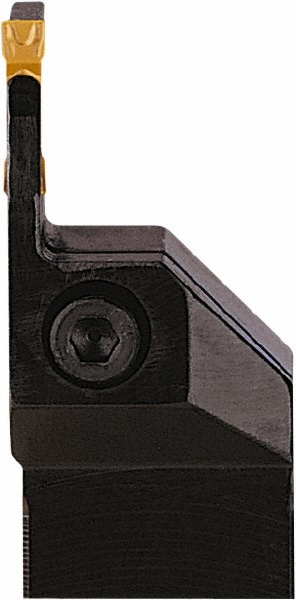

0.157" Max Depth of Cut, Through Coolant, Uses 8 Inserts
| Toolholder Type | Internal Grooving |
|---|---|
| Insert Seat Size | 8 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Minimum Groove Width (Decimal Inch) | 0.3150 |
| Toolholder Style | CTI |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 8 |
| Shank Height (Decimal Inch) | 1.1420 |
| Series | CTI |
| Shank Length (Decimal Inch) | 10.0000 |
| Shank Length (Inch) | 10 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10 |
| Center to Cutting Edge (Decimal Inch) | 0.8390 |
| Minimum Hole Diameter (Decimal Inch) | 1.4380 |
| Head Height (Decimal Inch) | 1.1420 |
| Head Length (Decimal Inch) | 2.362 |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Country of Origin | South Korea |
| undefined | undefined |
| MSC Number | MSC# 79985644 |
