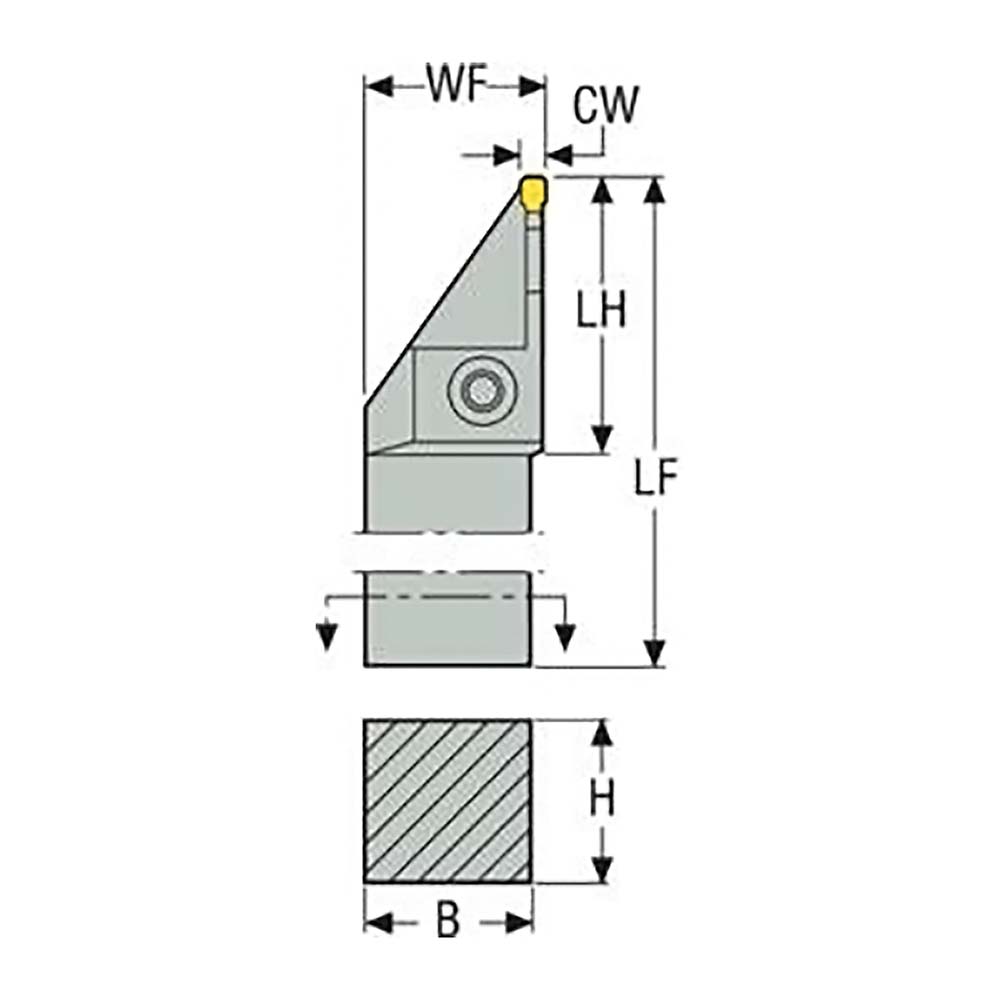

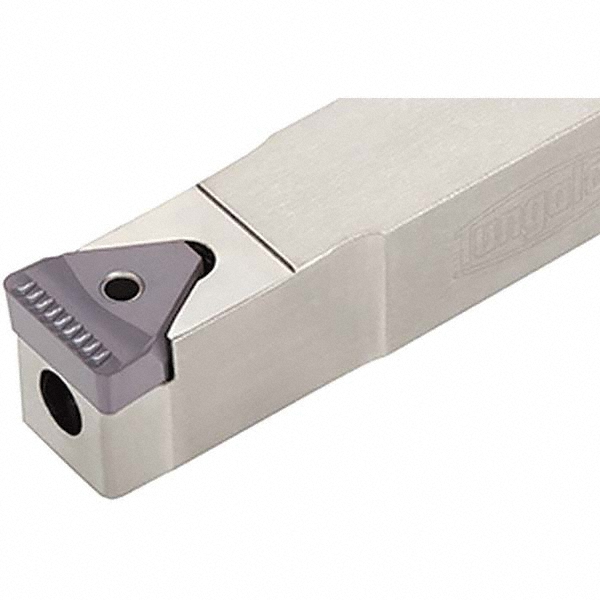

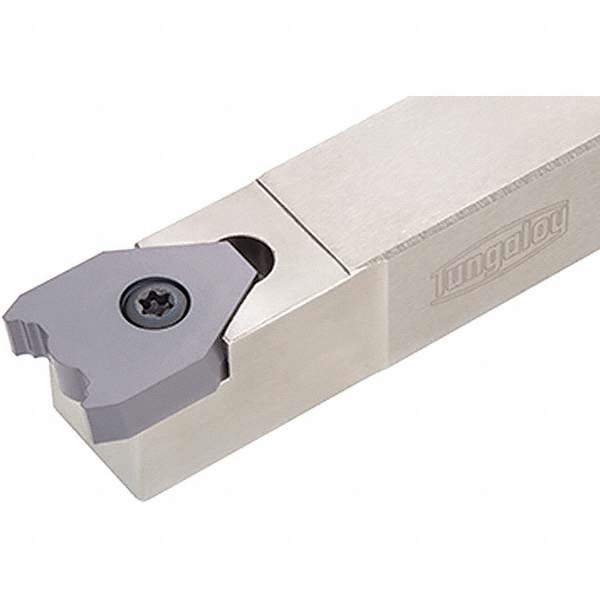

0.984" Max Depth of Cut, 3/4 x 3/4" Shank, Uses PSG10 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.9840 |
| Toolholder Style | FPG |
| Maximum Groove Width (Decimal Inch) | 0.3940 |
| Insert Holding Method | Screw |
| Insert Compatibility | PSG. |
| Compatible Insert Size Code | PSG10 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | Tung Heavy Groove |
| Shank Length (Decimal Inch) | 4.4130 |
| Overall Length (Decimal Inch) | 5.2 |
| Multi-use Tool | No |
| Maximum Overhang (Inch) | 0.2160 |
| Head Length (Decimal Inch) | 0.787 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | FPGN12-10T20 |
| Complete Insert Compatibility | PSGB; PSGM |
| Coolant Through | No |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 47609524 |
