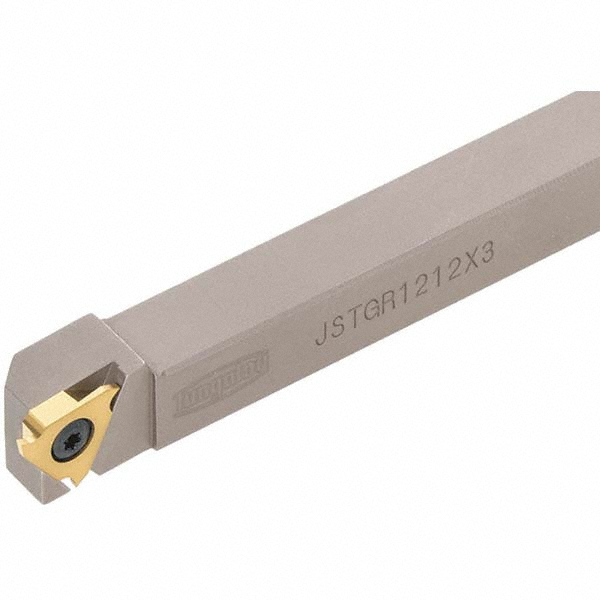

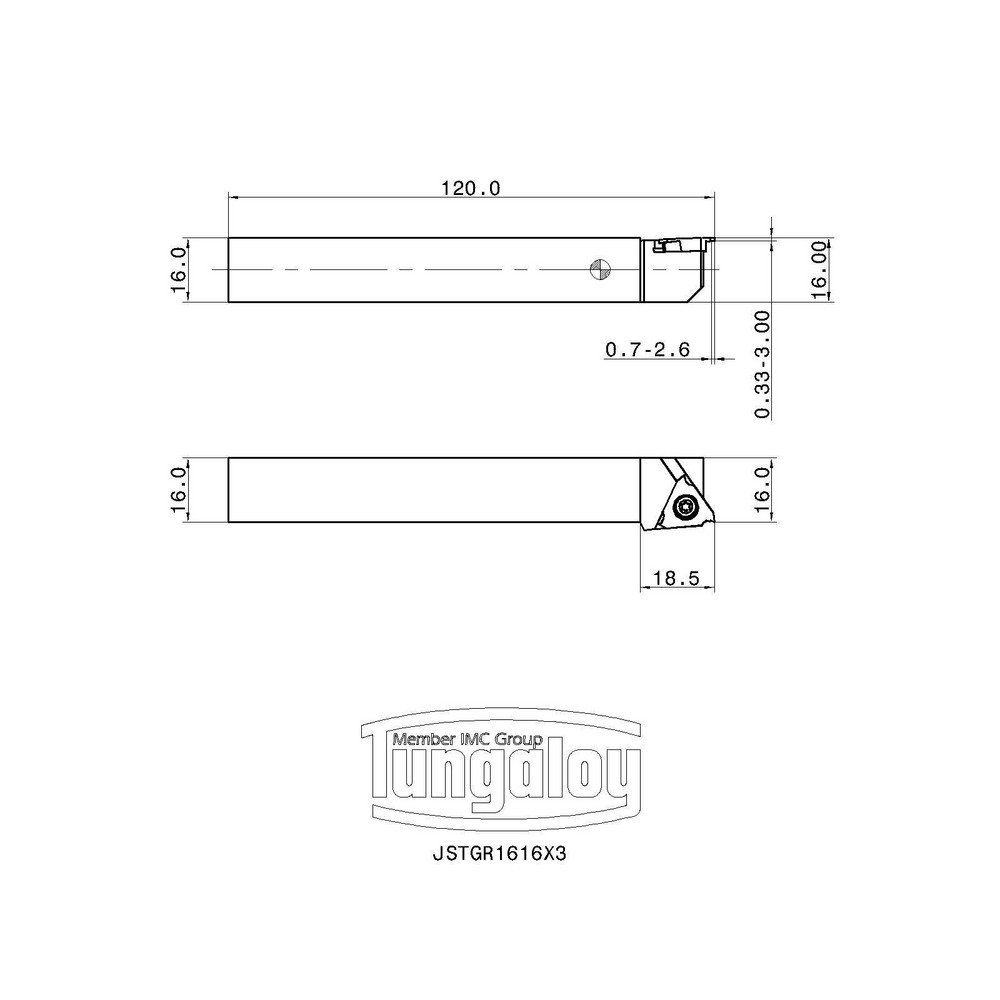

2.6 mm Max Depth of Cut, 16 x 16 mm Shank, Uses JTGR/L3 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 2.60 |
| Minimum Groove Width (mm) | 0.33 |
| Maximum Groove Width (mm) | 3.00 |
| Toolholder Style | JSTG |

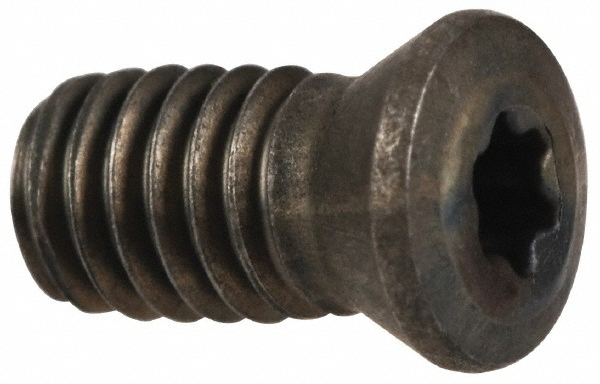

| Insert Holding Method | Screw |
| Insert Compatibility | JTGR/L(F) |
| Compatible Insert Size Code | JTGR/L3 |
| Shank Height (mm) | 16.00 |
| Series | J |
| Shank Length (mm) | 101.50 |
| Overall Length (mm) | 120 |
| Multi-use Tool | No |
| Head Height (mm) | 16.00 |
| Head Length (mm) | 18.50 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | P; S; K; M |
| UNSPSC Code | 23153308 |
| Manufacturers Catalog Number | JSTGR1616X3 |
| Complete Insert Compatibility | JTGR/L(F) |
| Coolant Through | No |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 47640354 |
