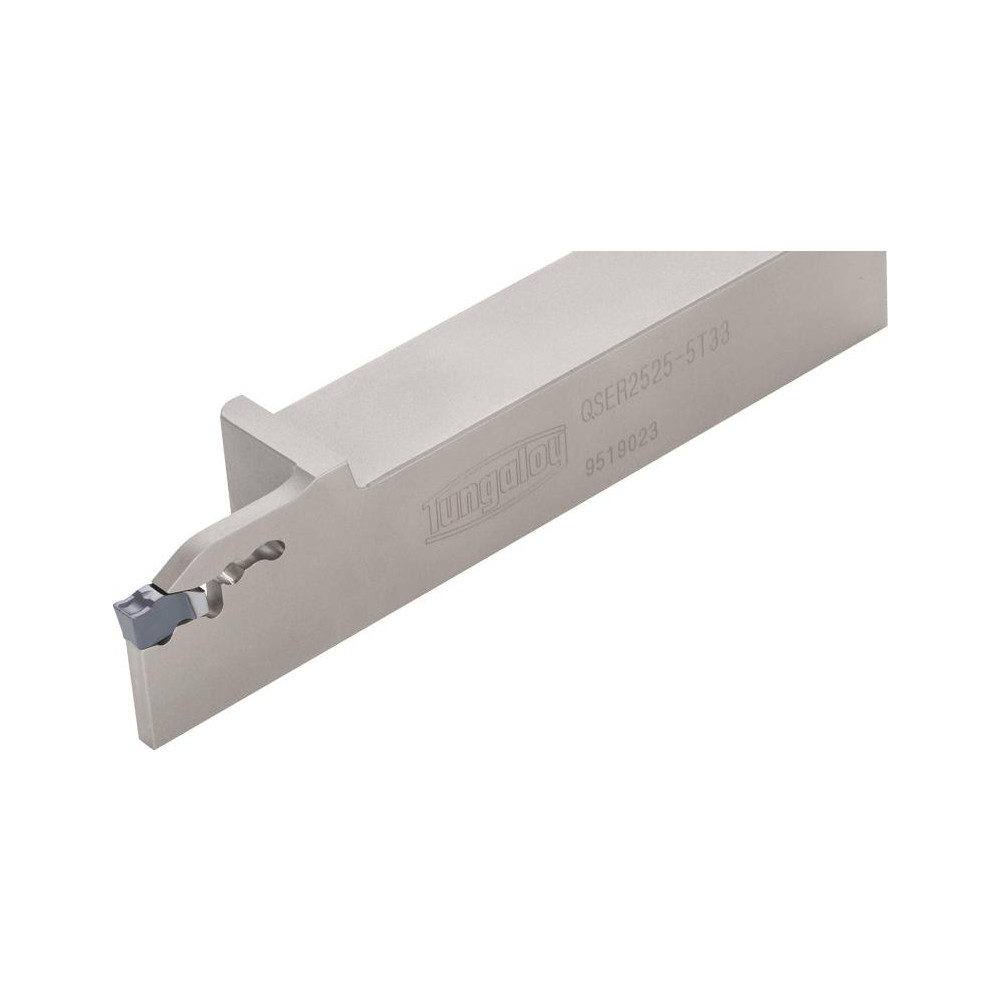

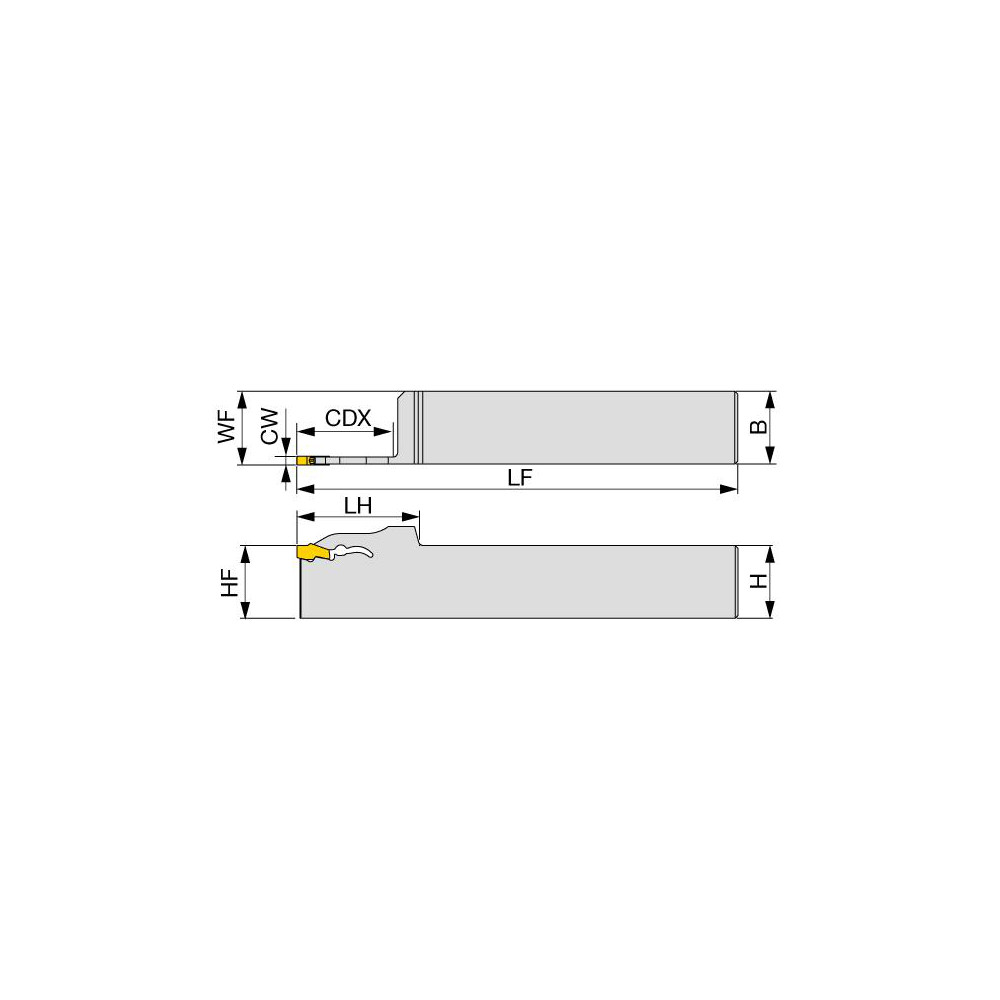

1.024" Max Depth of Cut, Uses 2 Inserts
| Toolholder Type | External Grooving |
|---|---|
| Insert Seat Size | 2 |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.0240 |
| Minimum Groove Width (Decimal Inch) | 0.0787 |
| Toolholder Style | QSE |
| Maximum Groove Width (Decimal Inch) | 0.0787 |
| Insert Holding Method | Self Grip |
| Compatible Insert Size Code | 2 |
| Shank Height (Decimal Inch) | 0.7500 |
| Series | QSE |
| Shank Length (Decimal Inch) | 3.5830 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5 |
| Multi-use Tool | Yes |
| Head Length (Decimal Inch) | 1.417 |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | No |
| Country of Origin | Japan |
| MSC Number | MSC# 29161593 |
